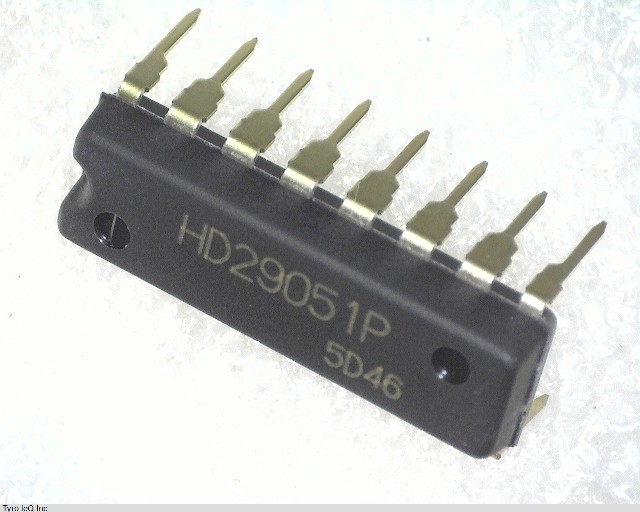

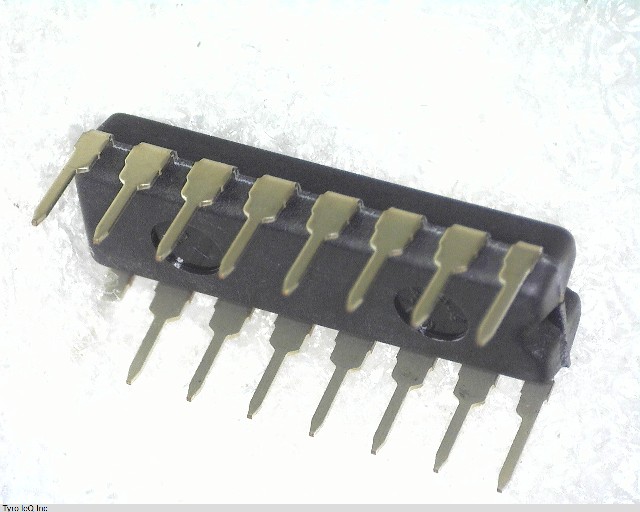

HD29051P-E データシート

Name: HD29051P-E
Brand: RENESAS
SKU: 180105256-0000-0000-0000

HD29051P-E - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

HD29051P-E の詳細情報

型番	HD29051P-E
メーカー	RENESAS
データシート
Differential Output	YES
Driver Number of Bits	2
Input Characteristics	DIFFERENTIAL SCHMITT TRIGGER
Interface IC Type	LINE TRANSCEIVER
Interface Standard	EIA-422-A; EIA-423-A
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e4
Length	19.2 mm
Moisture Sensitivity Level	1
Number of Functions	2
Number of Terminals	16
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Qualification Status	Not Qualified
Receive Delay-Max	40 ns
Receiver Number of Bits	2
Seated Height-Max	5.06 mm
Supply Voltage-Max	5.25 V
Supply Voltage-Min	4.75 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Temperature Grade	COMMERCIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Transmit Delay-Max	20 ns
Width	7.62 mm
