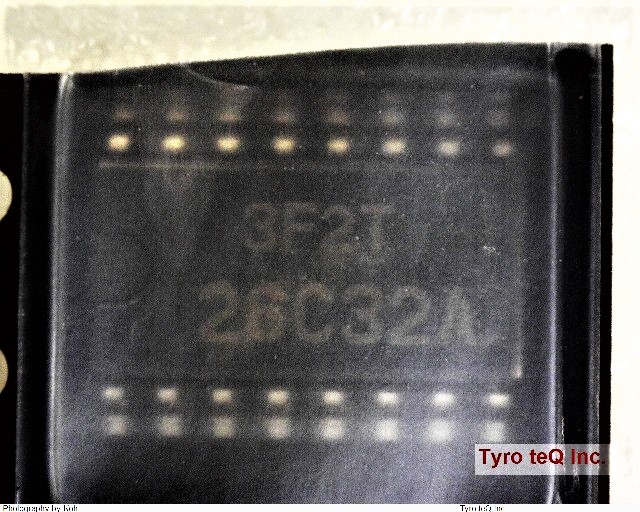

HD26C32AFPEL データシート

Name: HD26C32AFPEL
Brand: RENESAS
SKU: 180010955-0000-0000-0000

HD26C32AFPEL - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

HD26C32AFPEL の詳細情報

型番	HD26C32AFPEL
メーカー	RENESAS
データシート
Input Characteristics	DIFFERENTIAL SCHMITT TRIGGER
Interface IC Type	LINE RECEIVER
Interface Standard	EIA-422-A; EIA-423-A
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e0
Length	10.06 mm
Moisture Sensitivity Level	1
Number of Functions	4
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Low Current-Max	0.006 Amp
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP16,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	5 V
Qualification Status	Not Qualified
Receive Delay-Max	25 ns
Receiver Number of Bits	4
Seated Height-Max	2.2 mm
Sub Category	Line Driver or Receivers
Supply Current-Max	23 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	20
Width	5.5 mm
