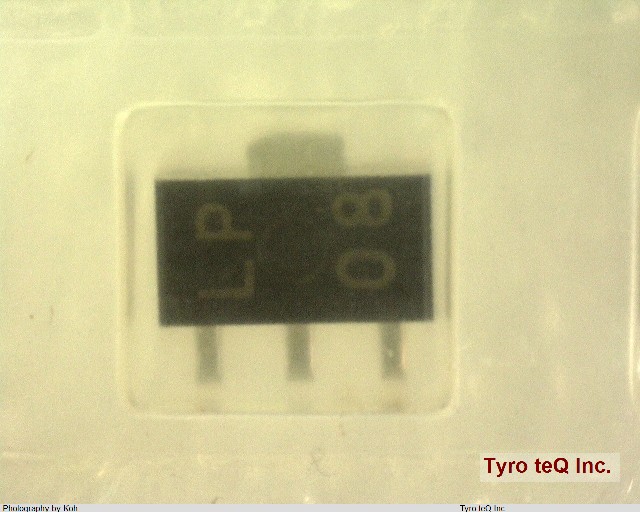

HD1A3M-T1 データシート

Name: HD1A3M-T1
Brand: RENESAS
SKU: 180085181-0000-0000-0000

HD1A3M-T1 - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

HD1A3M-T1 の詳細情報

型番	HD1A3M-T1
メーカー	RENESAS
データシート
Additional Feature	BUILT-IN BIAS RESISTOR RATIO IS 1
Case Connection	COLLECTOR
Collector Current-Max (IC)	1 A
Collector-emitter Voltage-Max	60 V
Configuration	SINGLE WITH BUILT-IN RESISTOR
DC Current Gain-Min (hFE)	80
JESD-30 Code	R-PSSO-F3
Number of Elements	1
Number of Terminals	3
Operating Temperature-Max	150 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Polarity/Channel Type	NPN
Power Dissipation Ambient-Max	2 W
Power Dissipation-Max (Abs)	2 W
Qualification Status	Not Qualified
Sub Category	BIP General Purpose Small Signal
Surface Mount	YES
Terminal Form	FLAT
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Transistor Application	SWITCHING
Transistor Element Material	SILICON
