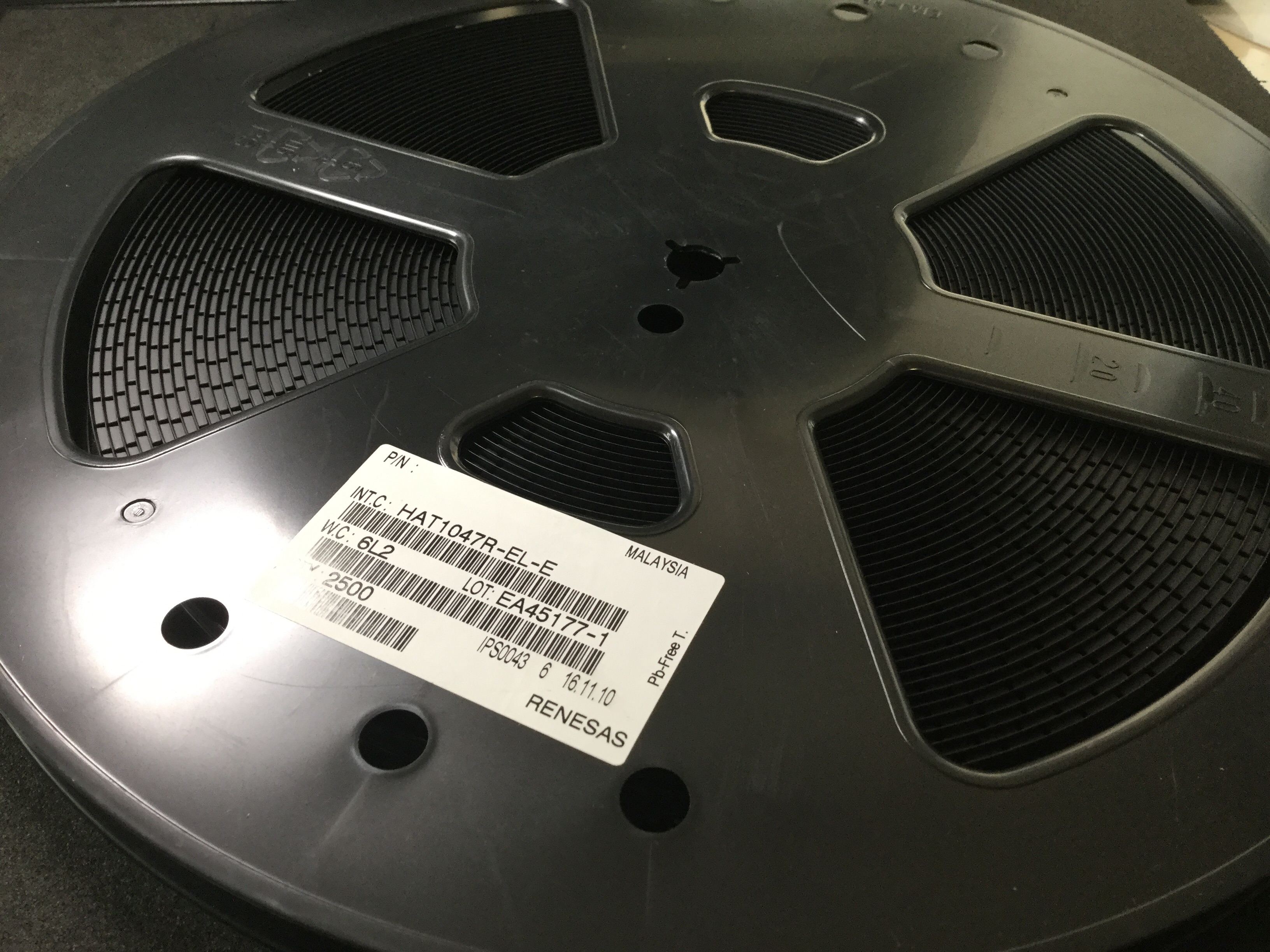

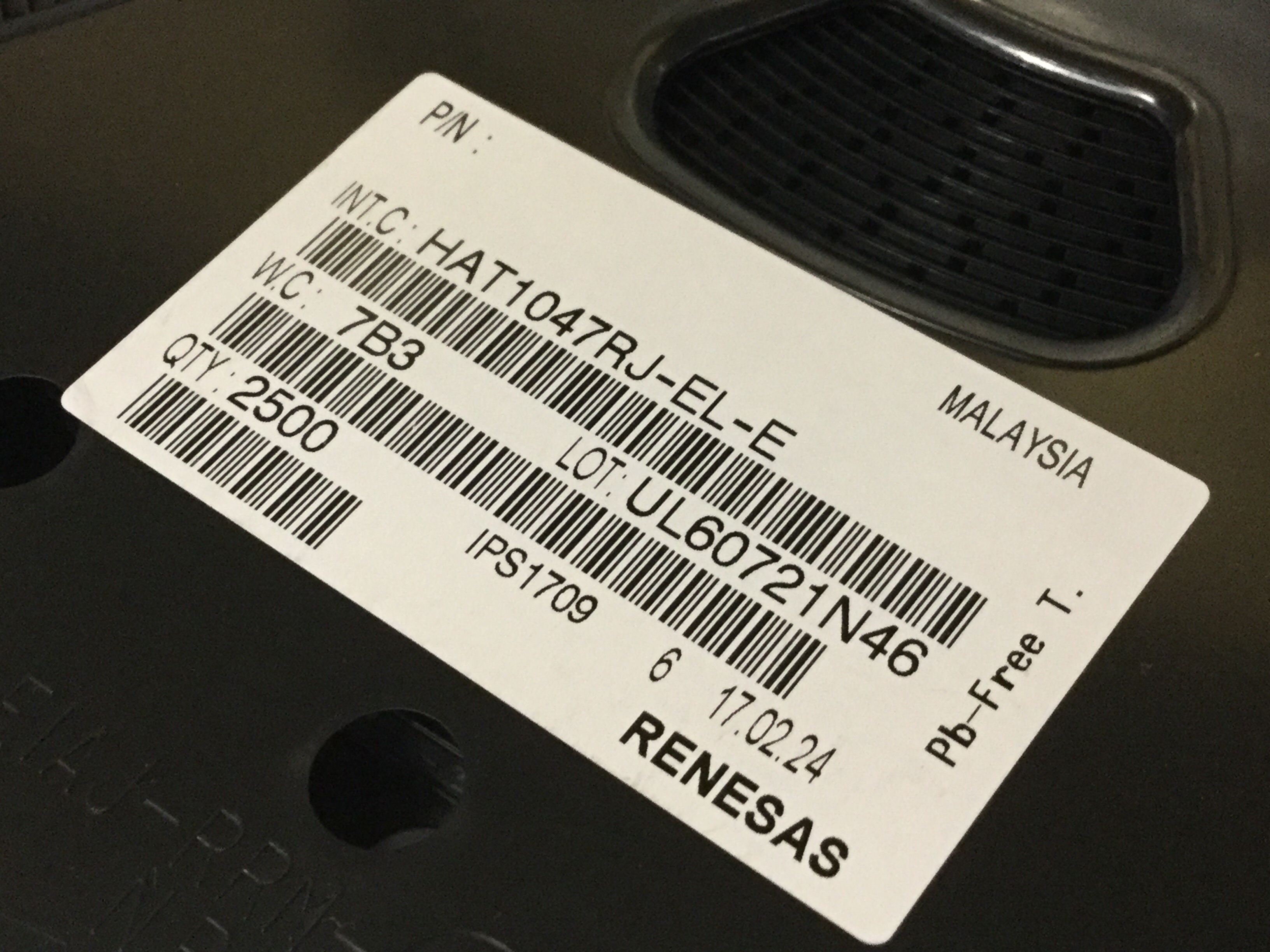

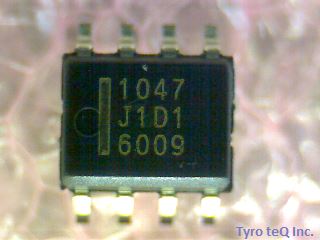

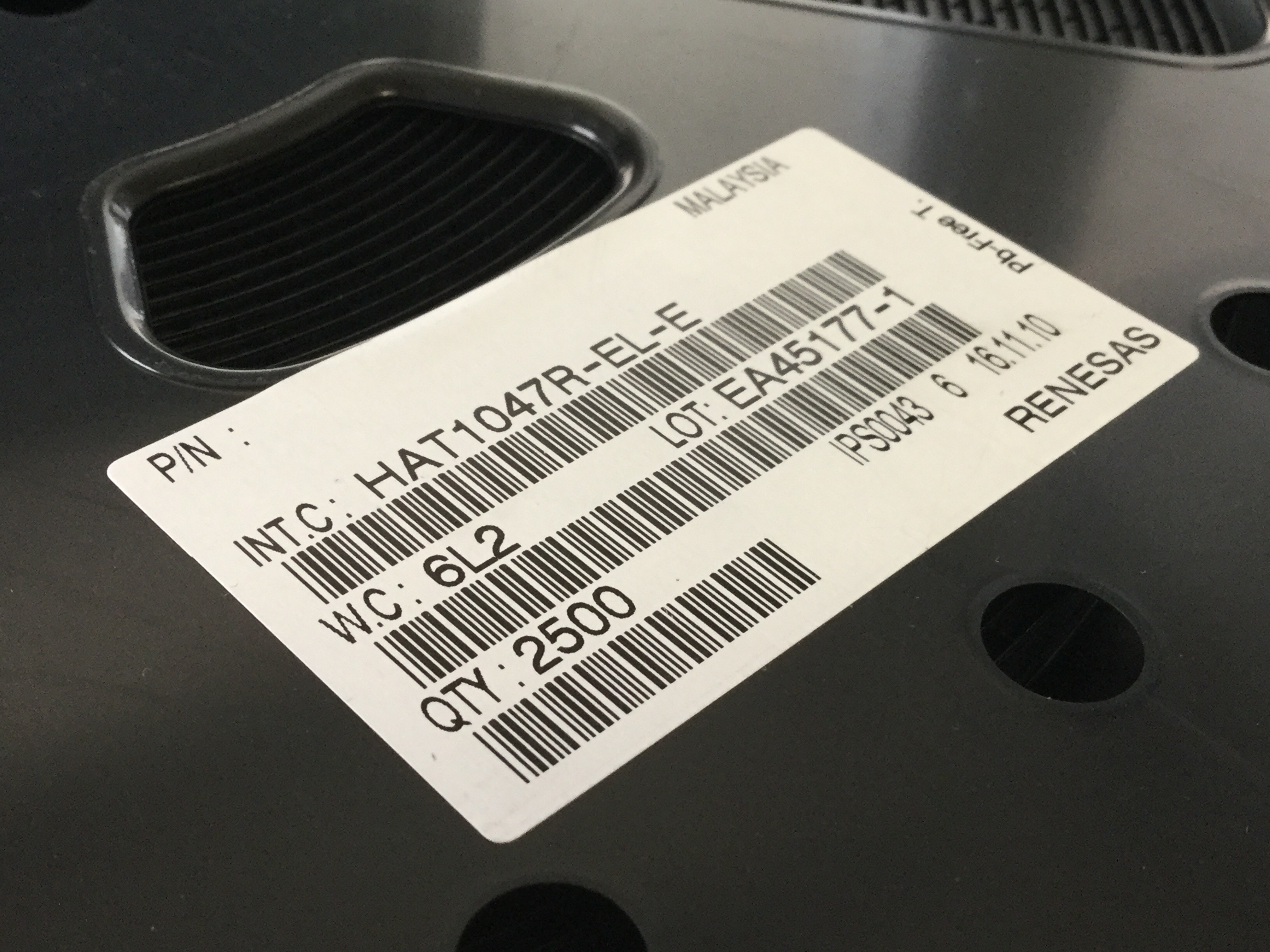

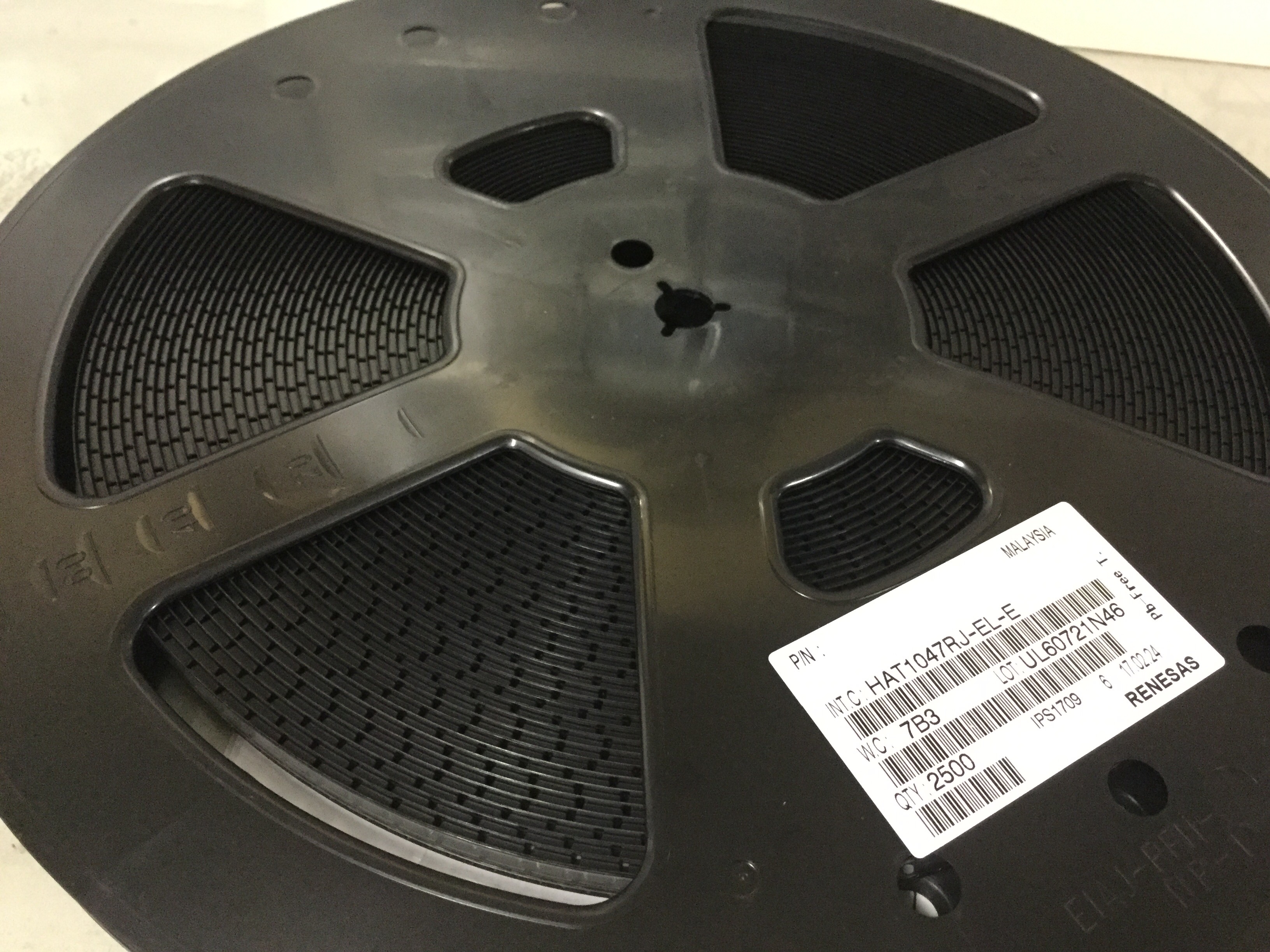

HAT1047R データシート

Name: HAT1047R
Brand: RENESAS
SKU: 180009294-0000-0000-0000

HAT1047R - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

HAT1047R の詳細情報

型番	HAT1047R
メーカー	RENESAS
カテゴリ	スイッチ-その他IC
データシート
Application	Low Voltage General Switching
Automotive	-
Ciss(pF)typ.	3500
Configuration	SINGLE WITH BUILT-IN DIODE
DS Breakdown Voltage-Min	30 V
Drain Current-Max (Abs) (ID)	14 A
Drain Current-Max (ID)	14 A
Drain-source On Resistance-Max	0.025 ohm
FET Technology	METAL-OXIDE SEMICONDUCTOR
ID(A)	-14
JESD-30 Code	R-PDSO-G8
Moisture Sensitivity Level	1
MountingType	Surface Mount
Nch/Pch	Pch
Number of Elements	1
Number of Terminals	8
Operating Mode	ENHANCEMENT MODE
Operating Temperature-Max	150 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Pch(W)	2.5
Peak Reflow Temperature (Cel)	260
Polarity/Channel Type	P-CHANNEL
Power Dissipation-Max (Abs)	2.5 W
Pulsed Drain Current-Max (IDM)	112 A
QG(nC)typ.	64
Qualification Status	Not Qualified
RDS(ON)(mohm)max.@10Vor8V	12
RDS(ON)(mohm)[email protected]	-
RDS(ON)(mohm)[email protected]	25
SeriesName	-
Sub Category	Other Transistors
Surface Mount	YES
Terminal Form	GULL WING
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Transistor Application	SWITCHING
Transistor Element Material	SILICON
VDSS(V)max.	-30
VGSS(V)	20
Vgs(off)(V)max.	-2.5
Webシミュレーション	-
シミュレーションデータ	-
ステータス	量産中
パッケージコード	PRSP0008DD-D(FP-8DAV)
構成	Single
構成[素子]	-
発注制約	Large order only
