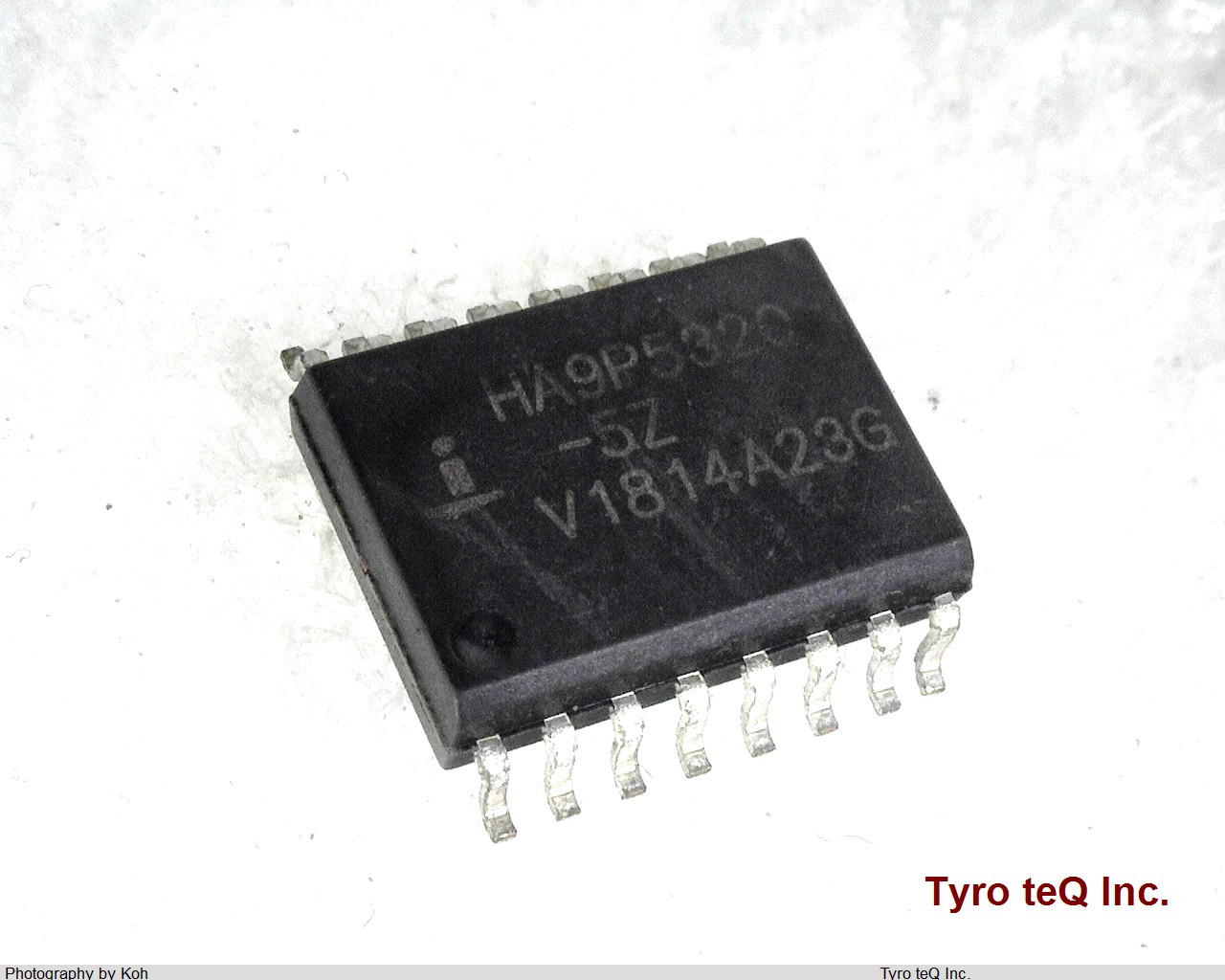

HA9P5320-5Z データシート

Name: HA9P5320-5Z
Brand: RENESAS
SKU: 180159779-0000-0000-0000

HA9P5320-5Z - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

HA9P5320-5Z の詳細情報

型番	HA9P5320-5Z
メーカー	RENESAS
データシート
Acquisition Time-Max	1.5 us
Acquisition Time-Nom	1 us
Amplifier Type	SAMPLE AND HOLD CIRCUIT
Analog Input Voltage-Max	-10 V
Analog Input Voltage-Min	-10 V
Droop Rate-Max	100 V/s
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e3
Length	10.3 mm
Moisture Sensitivity Level	3
Neg Supply Voltage Limit-Max	-20 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP16,.4
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Power Supplies	+-15 V
Qualification Status	Not Qualified
Sample-and-Hold/Track-and-Hold	SAMPLE
Seated Height-Max	2.65 mm
Sub Category	Sample and Hold Circuit
Supply Current-Max	13 mA
Supply Voltage Limit-Max	20 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	YES
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	7.5 mm
