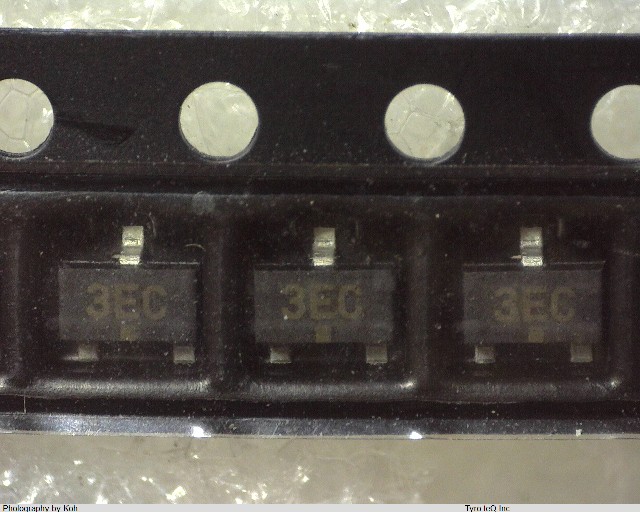

HA17L431ALTP データシート

Name: HA17L431ALTP
Brand: RENESAS
SKU: 180147968-0000-0000-0000

HA17L431ALTP - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

HA17L431ALTP の詳細情報

型番	HA17L431ALTP
メーカー	RENESAS
カテゴリ	レギュレータ
データシート
Analog IC - Other Type	TWO TERMINAL VOLTAGE REFERENCE
Category	Shunt Regulators
Ik(mA)max.	50
Ioff	1
JESD-30 Code	R-PDSO-G3
JESD-609 Code	e0
Length	2.9 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	1
Number of Terminals	3
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-20 Cel
Output Voltage-Max	1.253 V
Output Voltage-Min	1.227 V
Output Voltage-Nom	1.24 V
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Equivalence Code	TO-236
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Pt(W)	-
Qualification Status	Not Qualified
Seated Height-Max	1.3 mm
Sub Category	Voltage References
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	OTHER
Terminal Finish	Tin/Bismuth (Sn/Bi)
Terminal Form	GULL WING
Terminal Pitch	0.95 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	20
Topa[Tjopa](degC)max.	85
Topa[Tjopa](degC)min.	-
Totalpowerdissipation(W)	150
Trim/Adjustable Output	NO V
VKA(V)	16
Vo(V)max.	-
Voltage Tolerance-Max	1 %
Vref(V)typ.	1.24
Width	1.5 mm
ステータス	In Mass Production
ピン数	3
