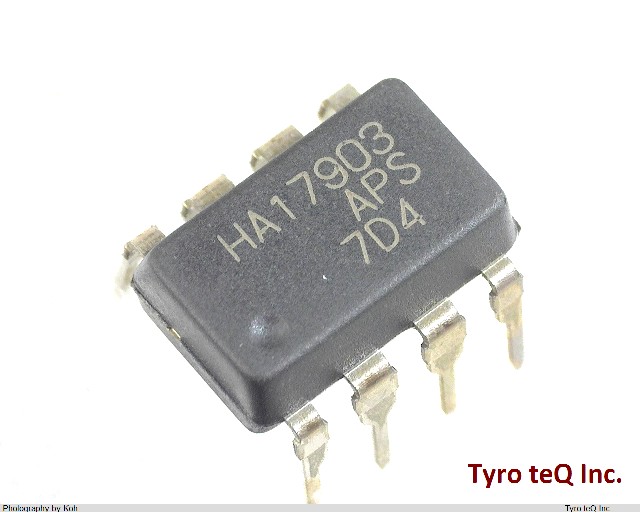

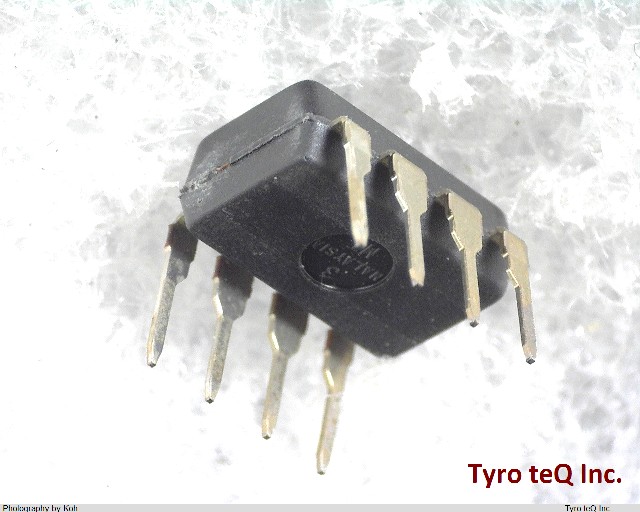

HA17903APS データシート

Name: HA17903APS
Brand: RENESAS
SKU: 180064626-0000-0000-0000

HA17903APS - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

HA17903APS の詳細情報

型番	HA17903APS
メーカー	RENESAS
カテゴリ	その他-汎用IC
データシート
Amplifier Type	COMPARATOR
Automotive	-
Average Bias Current-Max (IIB)	0.25 uA
Bias Current-Max (IIB) @25C	0.25 uA
Ch.	-
Dual Supplies(±V)max.	-
Dual Supplies(±V)min.	-
Input Offset Voltage-Max	5000 uV
Input Offset VoltageVio (±mV) max.	-
JESD-30 Code	R-PDIP-T8
JESD-609 Code	e0
Length	9.6 mm
Moisture Sensitivity Level	1
Number of Functions	2
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
OperatingTemperatureTopr (°C) max.	-
OperatingTemperatureTopr (°C) min.	-
Output CurrentIo Sink(mA) typ.	-
Output CurrentIo Source(mA) typ.	-
Output Type	OPEN-COLLECTOR
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Packing Method	TUBE
Peak Reflow Temperature (Cel)	240
Power Supplies	5 V
Process	Bipolar
Qualification Status	Not Qualified
Response Time-Nom	1300 ns
Response TimeTPHL(μs) typ.	-
Response TimeTPLH(μs) typ.	-
Seated Height-Max	5.06 mm
Single Supply(V) max.	-
Single Supply(V) min.	-
Sub Category	Comparator
Supply Current-Max	2 mA
Supply CurrentIcc/Idd(mA) max.	-
Supply Voltage Limit-Max	36 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7.62 mm
シミュレーションデータ	-
ステータス	In Mass Production
パッケージコード	PRDP0008AF-B(DP-8FV)
