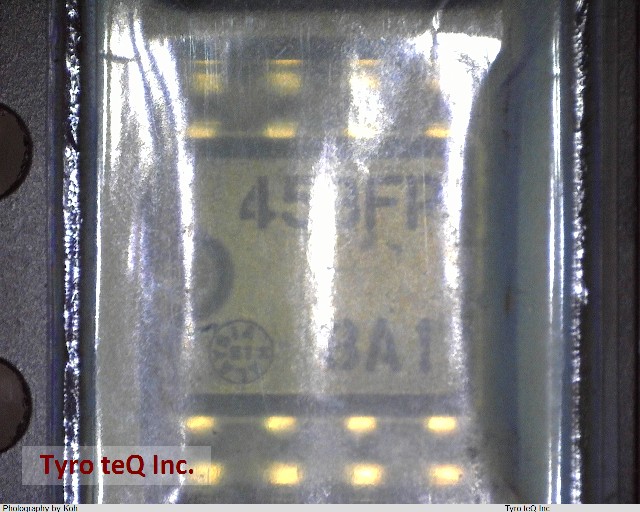

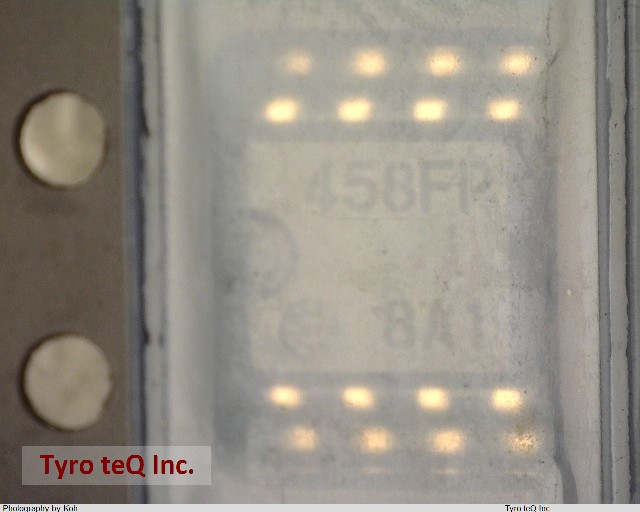

HA17458FP-E

Name: HA17458FP-E
Brand: RENESAS
SKU: 180069424-0000-0000-0000

HA17458FP-E - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

HA17458FP-E の詳細情報

型番	HA17458FP-E
メーカー	RENESAS
Amplifier Type	OPERATIONAL AMPLIFIER
Average Bias Current-Max (IIB)	1.1 uA
Common-mode Reject Ratio-Nom	90 dB
Input Offset Voltage-Max	6000 uV
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e0
Length	4.85 mm
Moisture Sensitivity Level	1
Neg Supply Voltage Limit-Max	-18 V
Neg Supply Voltage-Nom (Vsup)	-18 V
Number of Functions	2
Number of Terminals	8
Operating Temperature-Max	75 Cel
Operating Temperature-Min	-20 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR, EMBOSSED
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	2.03 mm
Slew Rate-Nom	0.6 V/us
Sub Category	Operational Amplifier
Supply Voltage Limit-Max	18 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	20
Width	4.4 mm
