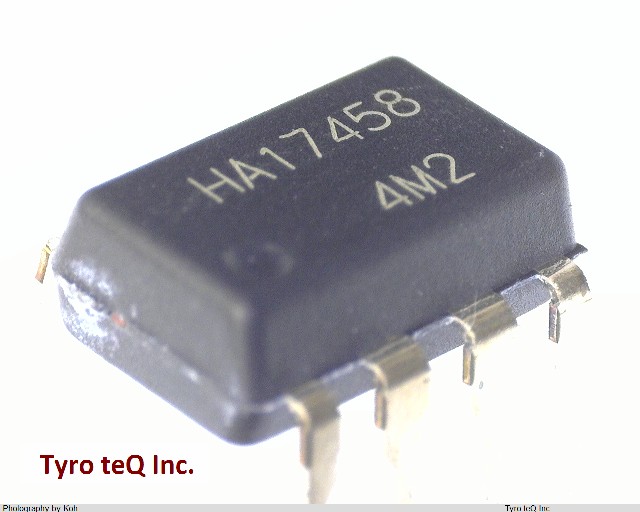

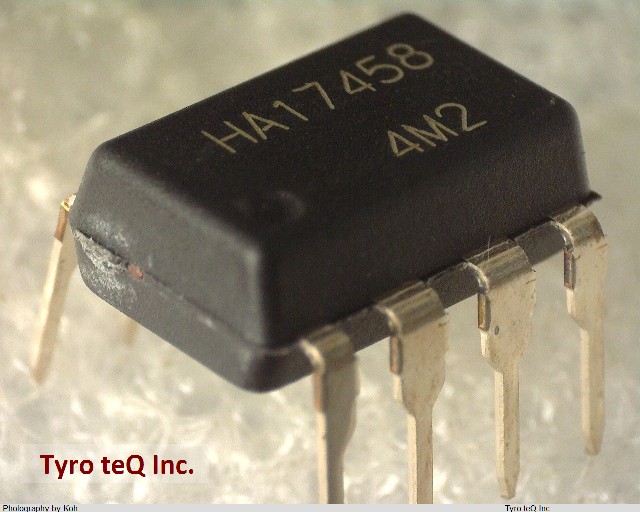

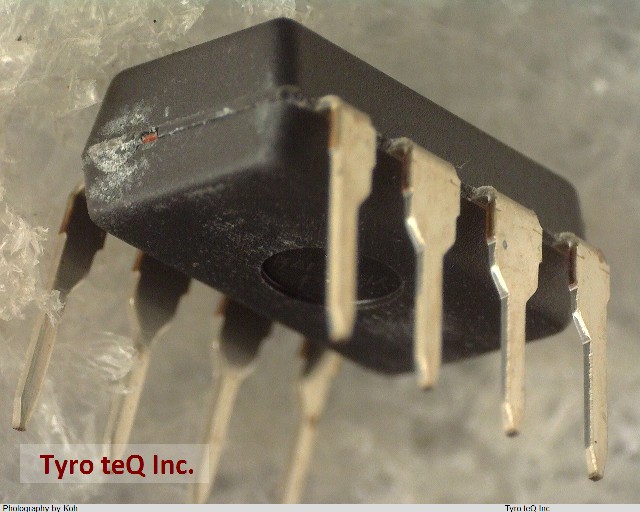

HA17458-E データシート

Name: HA17458-E
Brand: RENESAS
SKU: 180119636-0000-0000-0000

HA17458-E - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

HA17458-E の詳細情報

型番	HA17458-E
メーカー	RENESAS
データシート
Amplifier Type	OPERATIONAL AMPLIFIER
Average Bias Current-Max (IIB)	1.1 uA
Common-mode Reject Ratio-Nom	90 dB
Input Offset Voltage-Max	9000 uV
JESD-30 Code	R-PDIP-T8
JESD-609 Code	e4
Length	9.6 mm
Moisture Sensitivity Level	1
Neg Supply Voltage Limit-Max	-18 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Number of Functions	2
Number of Terminals	8
Operating Temperature-Max	75 Cel
Operating Temperature-Min	-20 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Packing Method	TUBE
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Qualification Status	Not Qualified
Seated Height-Max	5.06 mm
Slew Rate-Nom	0.6 V/us
Sub Category	Operational Amplifier
Supply Voltage Limit-Max	18 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7.62 mm
