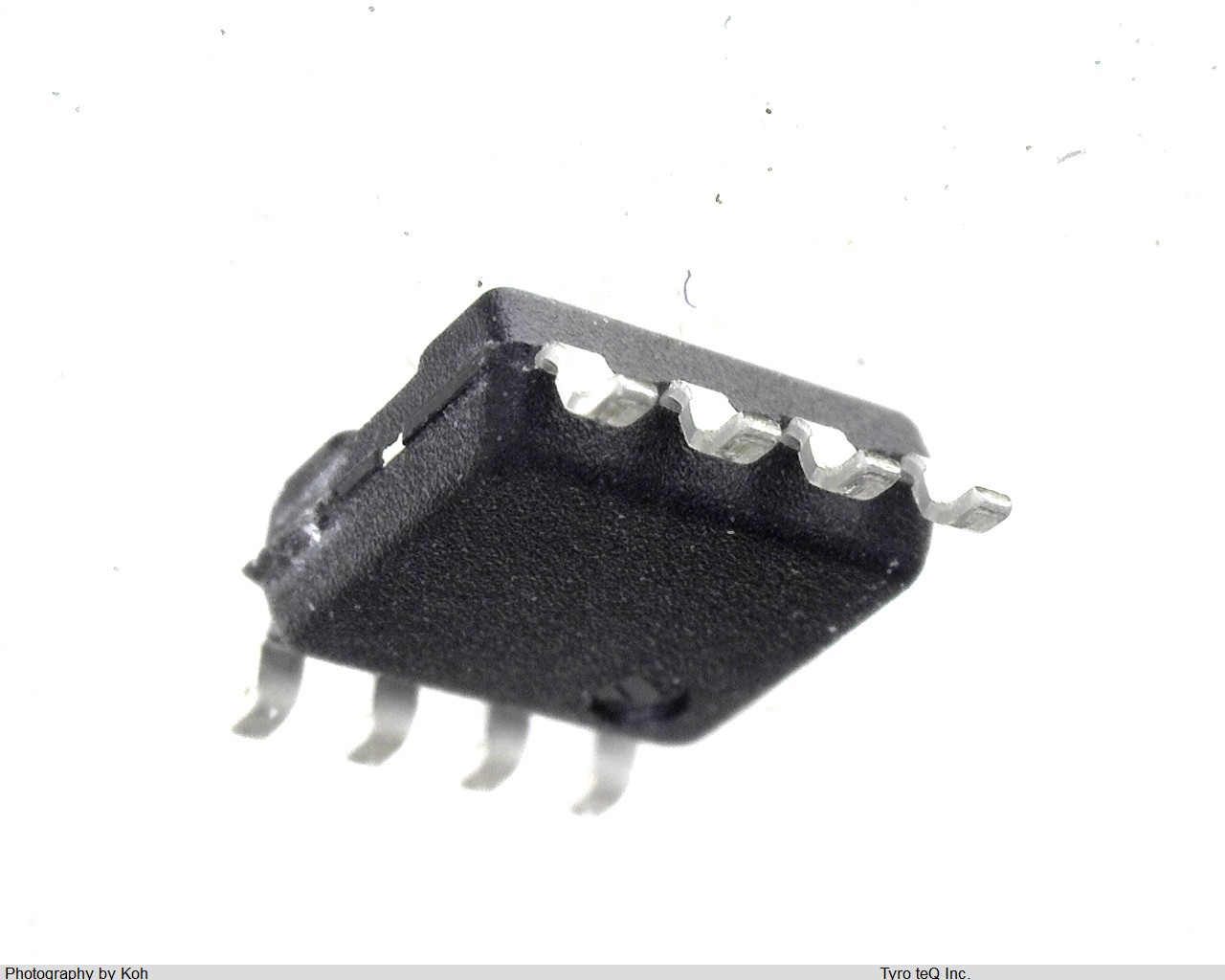

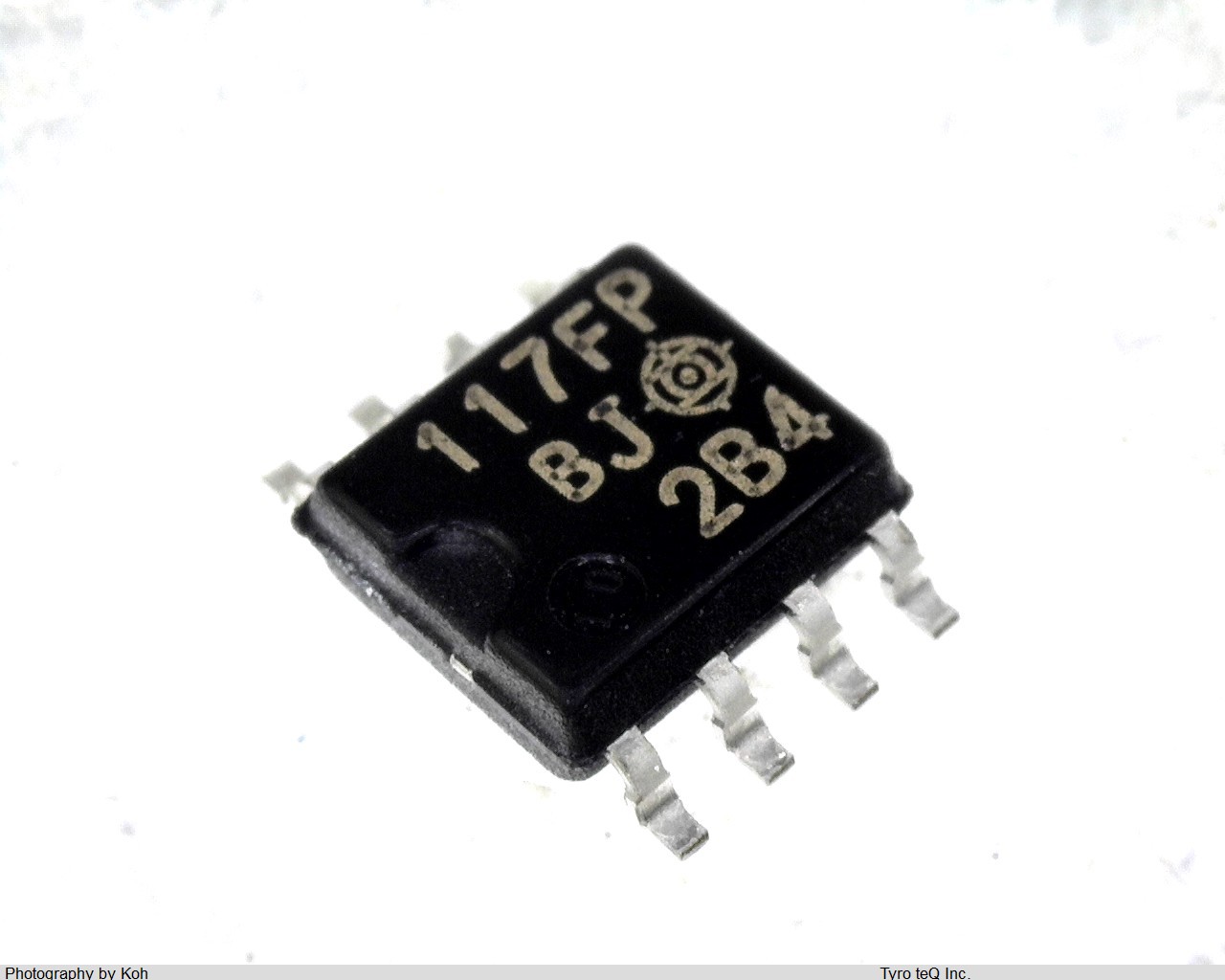

HA16117FPBJ データシート

Name: HA16117FPBJ
Brand: RENESAS
SKU: 180064547-0000-0000-0000

HA16117FPBJ - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

HA16117FPBJ の詳細情報

型番	HA16117FPBJ
メーカー	RENESAS
データシート
Additional Feature	DETECTION THRESHOLD VOLTAGE IS 4.2V
Adjustable Threshold	NO
Analog IC - Other Type	POWER SUPPLY MANAGEMENT CIRCUIT
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e0
Length	4.85 mm
Moisture Sensitivity Level	1
Number of Channels	1
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	2.03 mm
Supply Voltage-Max (Vsup)	6 V
Supply Voltage-Min (Vsup)	4.2 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	20
Width	4.4 mm
