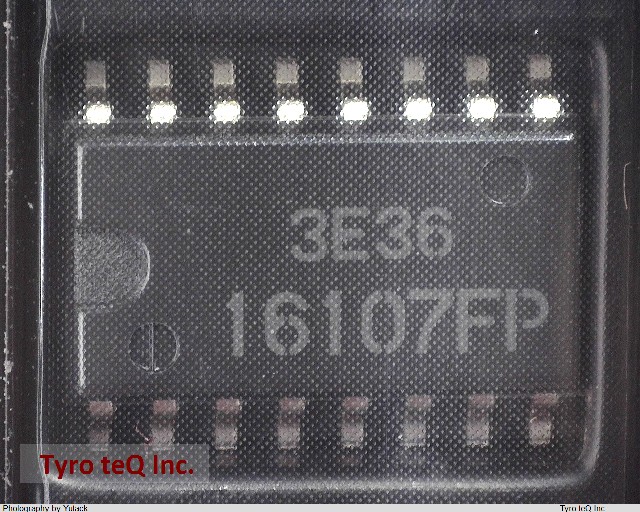

HA16107FP データシート

Name: HA16107FP
Brand: RENESAS
SKU: 180117523-0000-0000-0000

HA16107FP - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

HA16107FP の詳細情報

型番	HA16107FP
メーカー	RENESAS
データシート
Analog IC - Other Type	SWITCHING CONTROLLER
Control Mode	VOLTAGE-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	30 V
Input Voltage-Min	12 V
Input Voltage-Nom	18 V
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e0
Length	10.06 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-20 Cel
Output Current-Max	2 A
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP16,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	2.2 mm
Sub Category	Switching Regulator or Controllers
Surface Mount	YES
Switcher Configuration	SINGLE
Switching Frequency-Max	600 kHz
Technology	BIPOLAR
Temperature Grade	OTHER
Terminal Finish	Tin/Bismuth (Sn/Bi)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	20
Width	5.5 mm
