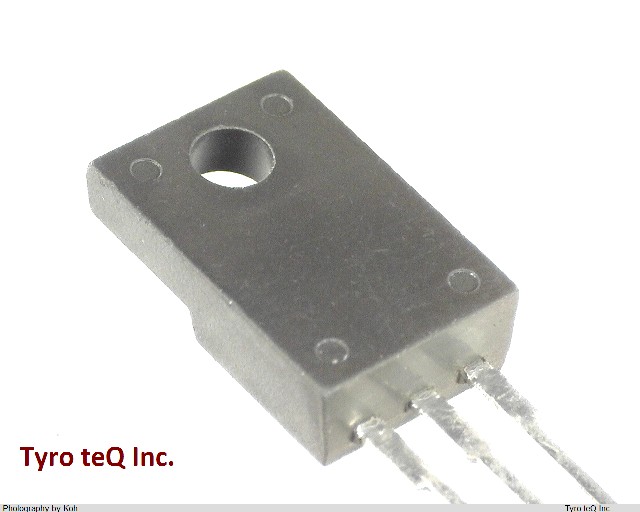

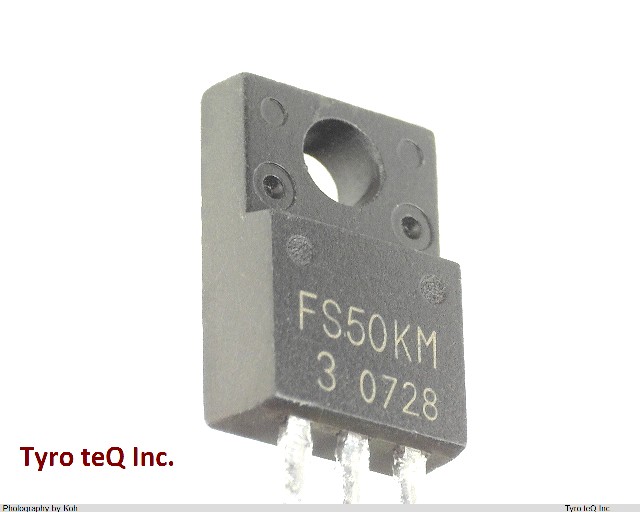

FS50KM-3 データシート

Name: FS50KM-3
Brand: RENESAS
SKU: 160074379-0000-0000-0000

FS50KM-3 - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

FS50KM-3 の詳細情報

型番	FS50KM-3
メーカー	RENESAS
データシート
Case Connection	ISOLATED
Configuration	SINGLE
DS Breakdown Voltage-Min	150 V
Drain Current-Max (Abs) (ID)	50 A
Drain Current-Max (ID)	50 A
Drain-source On Resistance-Max	0.031 ohm
FET Technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 Code	TO-220AB
JESD-30 Code	R-PSFM-T3
JESD-609 Code	e0
Number of Elements	1
Number of Terminals	3
Operating Mode	ENHANCEMENT MODE
Operating Temperature-Max	150 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Peak Reflow Temperature (Cel)	240
Polarity/Channel Type	N-CHANNEL
Power Dissipation Ambient-Max	35 W
Power Dissipation-Max (Abs)	35 W
Pulsed Drain Current-Max (IDM)	200 A
Qualification Status	Not Qualified
Sub Category	FET General Purpose Power
Surface Mount	NO
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Transistor Application	SWITCHING
Transistor Element Material	SILICON
