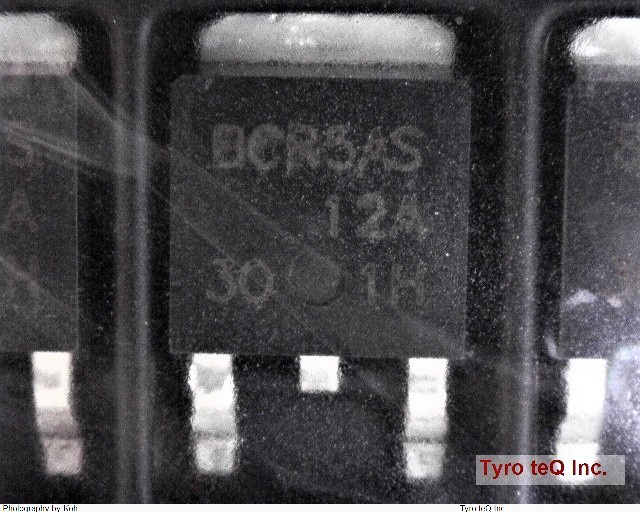

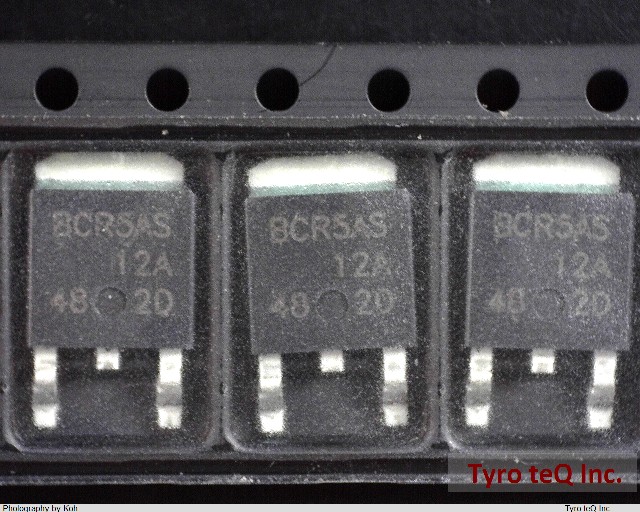

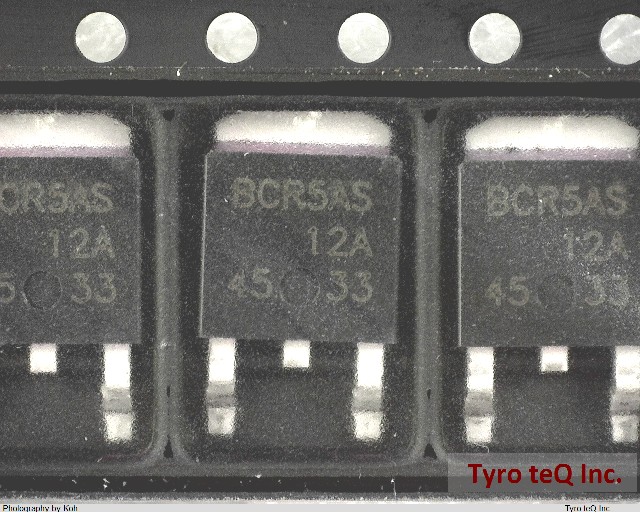

BCR5AS-12A-T13#B00

Name: BCR5AS-12A-T13#B00
Brand: RENESAS
SKU: 120205978-0000-0000-0000

BCR5AS-12A-T13#B00 - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

BCR5AS-12A-T13#B00 の詳細情報

型番	BCR5AS-12A-T13#B00
メーカー	RENESAS
Case Connection	MAIN TERMINAL 2
Configuration	SINGLE
Critical Rate of Rise of Commutation Voltage-Min	5 V/us
DC Gate Trigger Current-Max	30 mA
DC Gate Trigger Voltage-Max	1.5 V
JESD-30 Code	R-PSSO-G2
Number of Elements	1
Number of Terminals	2
On-State Voltage-Max	1.8 V
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
RMS On-state Current-Max	5 A
Repetitive Peak Off-state Leakage Current-Max	2000 uA
Repetitive Peak Off-state Voltage	600 V
Surface Mount	YES
Terminal Form	GULL WING
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Trigger Device Type	TRIAC
