74FCT163244CPVG8 データシート

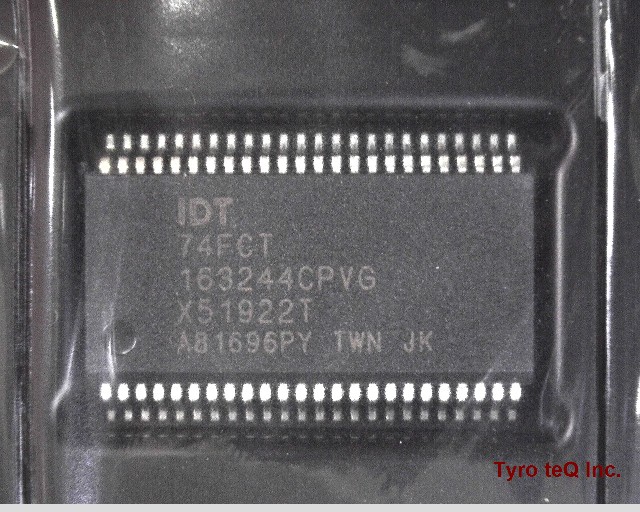

Name: 74FCT163244CPVG8
Brand: RENESAS
SKU: 400060498-0000-0000-0000

74FCT163244CPVG8 - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

74FCT163244CPVG8 の詳細情報

型番	74FCT163244CPVG8
メーカー	RENESAS
データシート
Additional Feature	MAX O/P SKEW = 0.5NS; TYP VOLP = 0.3V
Control Type	ENABLE LOW
Family	FCT
JESD-30 Code	R-PDSO-G48
JESD-609 Code	e3
Length	15.875 mm
Load Capacitance (CL)	50 pF
Logic IC Type	BUS DRIVER
Max I(ol)	0.024 Amp
Moisture Sensitivity Level	1
Number of Bits	4
Number of Functions	4
Number of Ports	2
Number of Terminals	48
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	3-STATE
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	SSOP
Package Equivalence Code	SSOP48,.4
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, SHRINK PITCH Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Power Supplies	3/3.3 V
Prop. Delay@Nom-Sup	4.1 ns
Propagation Delay (tpd)	4.1 ns
Qualification Status	Not Qualified
Seated Height-Max	2.794 mm
Sub Category	Bus Driver/Transceivers
Supply Voltage-Max (Vsup)	3.6 V
Supply Voltage-Min (Vsup)	2.7 V
Supply Voltage-Nom (Vsup)	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.635 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	7.493 mm
