2SK213 データシート

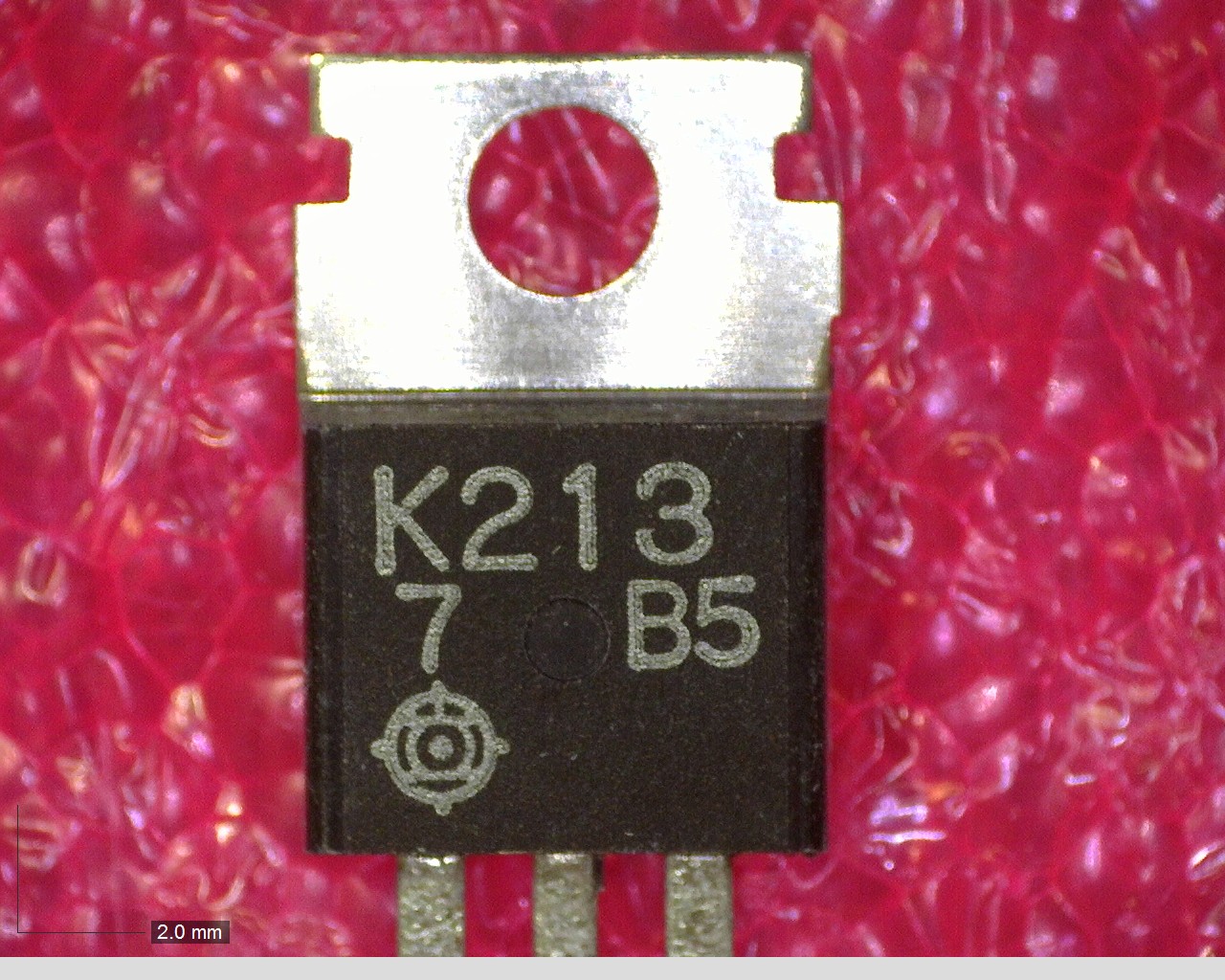

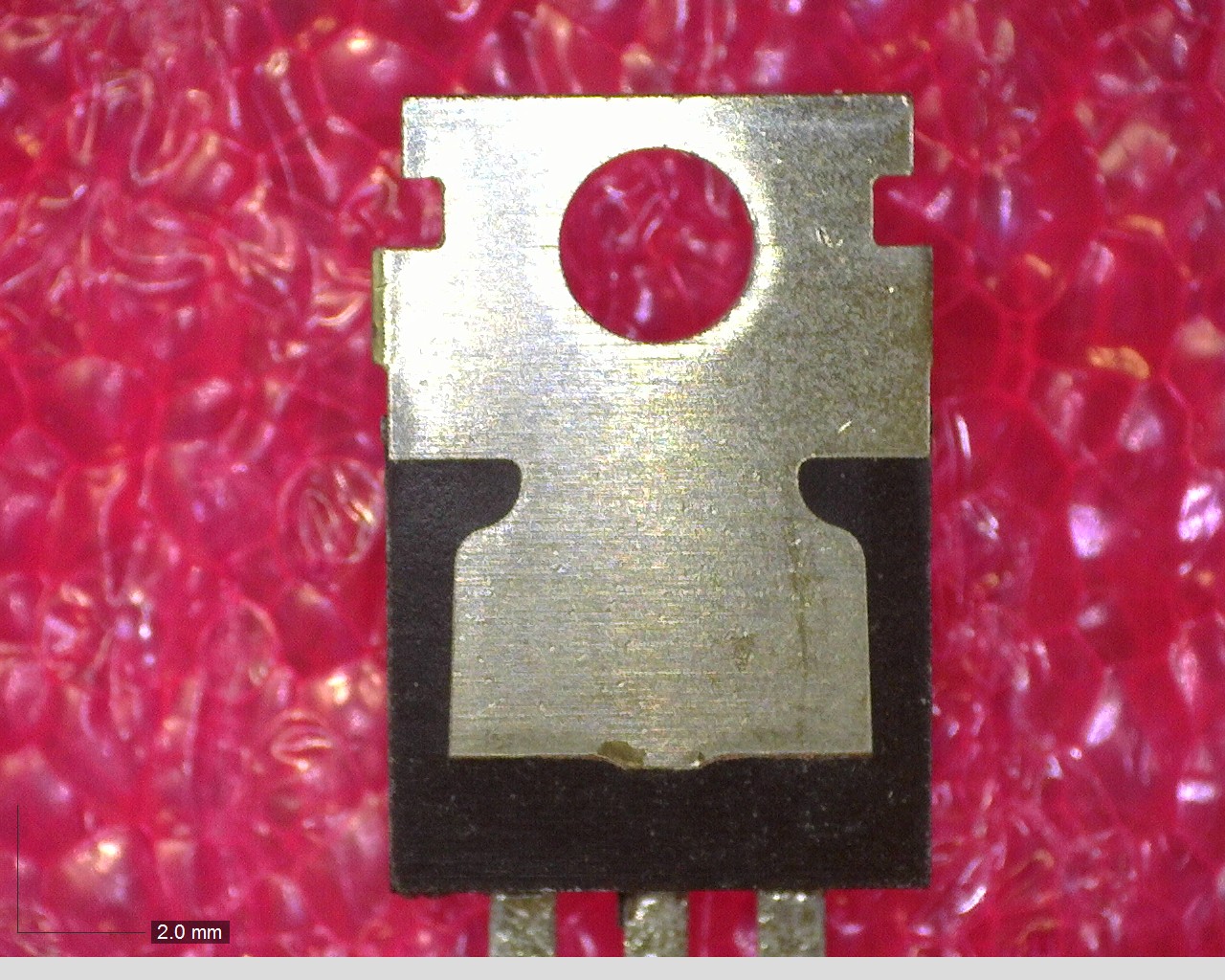

Name: 2SK213
Brand: RENESAS
SKU: 30085907-0000-0000-0000

2SK213 - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

Nチャネル電界効果型トランジスタ

2SK213 の詳細情報

型番	2SK213
メーカー	RENESAS
種別	Nチャネルトランジスタ
データシート
Additional Feature	AVALANCHE ENERGY RATED
Avalanche Energy Rating (Eas)	5.3 mJ
Case Connection	DRAIN
Configuration	SINGLE
DS Breakdown Voltage-Min	150 V
Drain Current-Max (Abs) (ID)	0.5 A
Drain Current-Max (ID)	0.5 A
Drain-source On Resistance-Max	0.18 ohm
FET Technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 Code	TO-220AB
JESD-30 Code	R-PSFM-T3
JESD-609 Code	e0
Moisture Sensitivity Level	1
Number of Elements	1
Number of Terminals	2
Operating Mode	ENHANCEMENT MODE
Operating Temperature-Max	150 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Peak Reflow Temperature (Cel)	260
Polarity/Channel Type	N-CHANNEL
Power Dissipation-Max (Abs)	1.5 W
Pulsed Drain Current-Max (IDM)	6 A
Qualification Status	Not Qualified
Sub Category	FET General Purpose Power
Surface Mount	NO
Terminal Finish	TIN LEAD
Terminal Form	GULL WING
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	10
Transistor Application	SWITCHING
Transistor Element Material	SILICON
