2SK1337TZ-E データシート

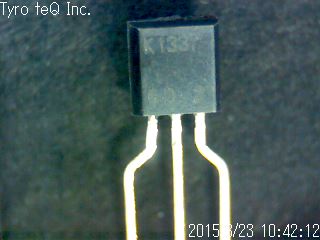

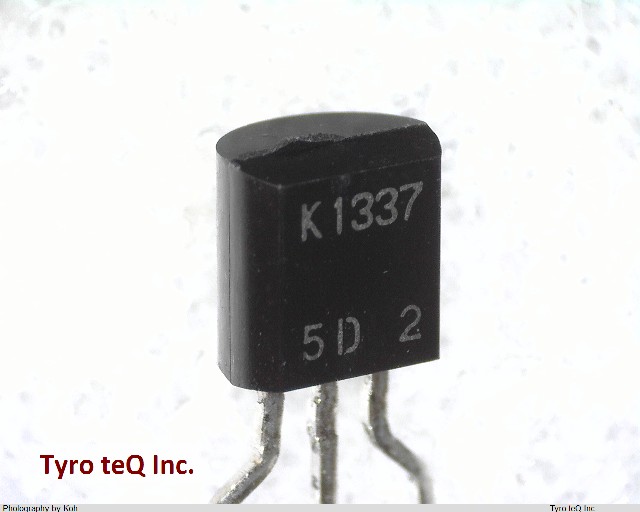

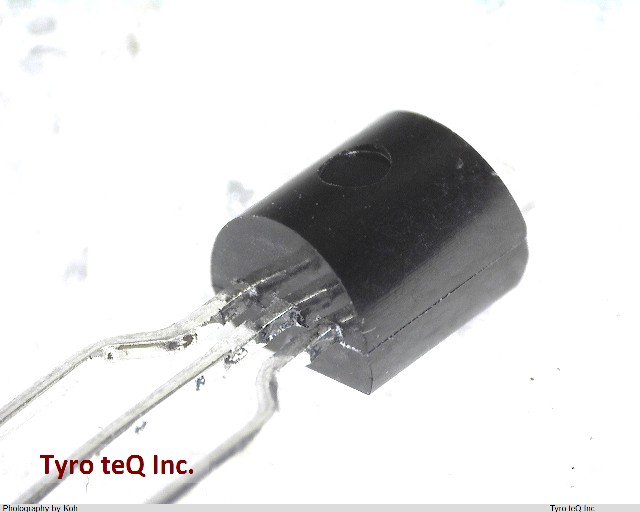

Name: 2SK1337TZ-E
Brand: RENESAS
SKU: 30231040-0000-0000-0000

2SK1337TZ-E - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

Nチャネル電界効果型トランジスタ

2SK1337TZ-E の詳細情報

型番	2SK1337TZ-E
メーカー	RENESAS
種別	Nチャネルトランジスタ
データシート
Configuration	SINGLE WITH BUILT-IN DIODE
DS Breakdown Voltage-Min	100 V
Drain Current-Max (Abs) (ID)	0.3 A
Drain Current-Max (ID)	0.3 A
Drain-source On Resistance-Max	6.5 ohm
FET Technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 Code	TO-92
JESD-30 Code	O-PBCY-W3
JESD-609 Code	e6
Moisture Sensitivity Level	1
Number of Elements	1
Number of Terminals	3
Operating Mode	ENHANCEMENT MODE
Operating Temperature-Max	150 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	ROUND
Package Style	CYLINDRICAL Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Polarity/Channel Type	N-CHANNEL
Power Dissipation-Max (Abs)	0.4 W
Qualification Status	Not Qualified
Sub Category	FET General Purpose Power
Surface Mount	NO
Terminal Finish	Tin/Bismuth (Sn/Bi)
Terminal Form	WIRE
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Transistor Application	SWITCHING
Transistor Element Material	SILICON
