2SK1336 データシート

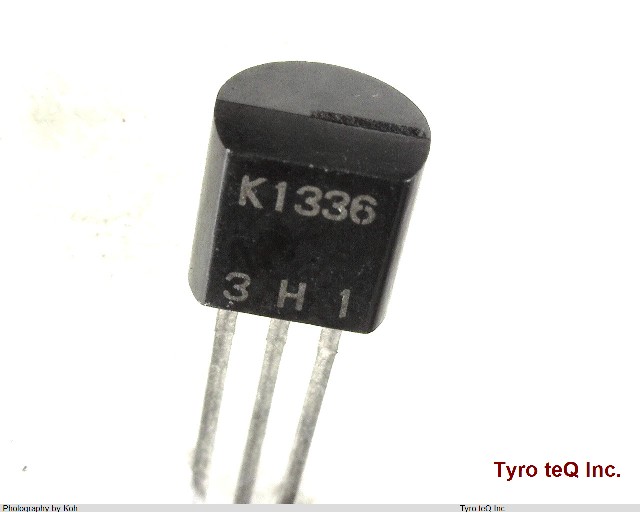

Name: 2SK1336
Brand: RENESAS
SKU: 30000525-0000-0000-0000

2SK1336 - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

Nチャネル電界効果型トランジスタ

2SK1336 の詳細情報

型番	2SK1336
メーカー	RENESAS
種別	Nチャネルトランジスタ
データシート
Configuration	SINGLE
DS Breakdown Voltage-Min	60 V
Drain Current-Max (Abs) (ID)	0.3 A
Drain Current-Max (ID)	0.3 A
Drain-source On Resistance-Max	2.5 ohm
FET Technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 Code	TO-92
JESD-30 Code	O-PBCY-T3
JESD-609 Code	e0
Moisture Sensitivity Level	1
Number of Elements	1
Number of Terminals	3
Operating Mode	DEPLETION MODE
Operating Temperature-Max	150 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	ROUND
Package Style	CYLINDRICAL Meter
Peak Reflow Temperature (Cel)	260
Polarity/Channel Type	N-CHANNEL
Power Dissipation-Max (Abs)	0.4 W
Qualification Status	Not Qualified
Sub Category	FET General Purpose Power
Surface Mount	NO
Terminal Finish	Tin/Bismuth (Sn/Bi)
Terminal Form	THROUGH-HOLE
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	20
Transistor Application	SWITCHING
Transistor Element Material	SILICON
