2SJ330 データシート

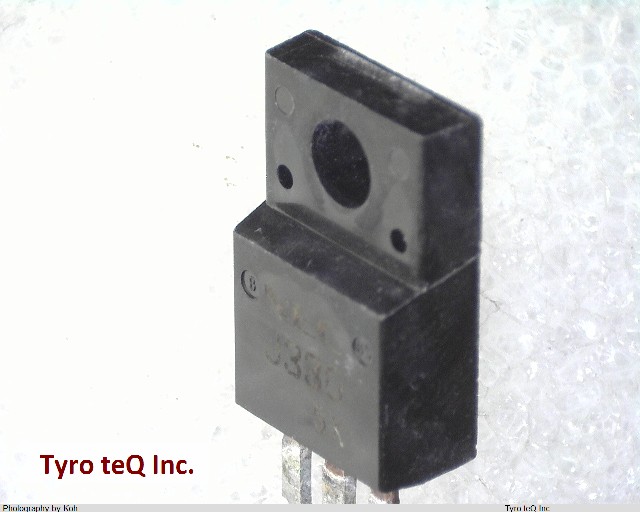

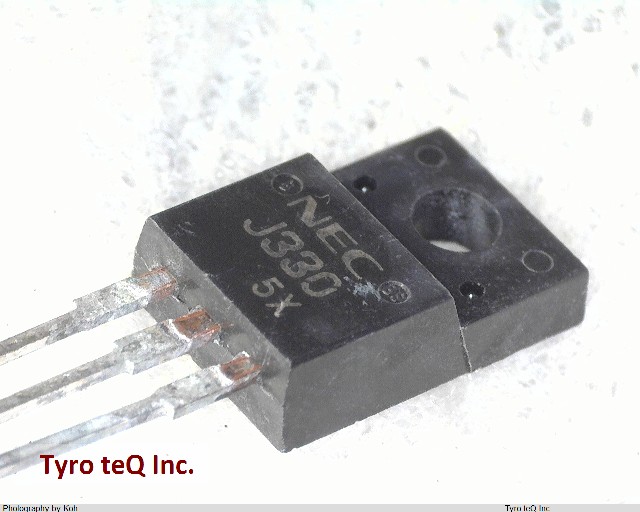

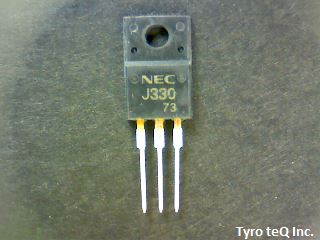

Name: 2SJ330
Brand: RENESAS
SKU: 30085627-0000-0000-0000

2SJ330 - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

Pチャネル電界効果型トランジスタ

2SJ330 の詳細情報

型番	2SJ330
メーカー	RENESAS
種別	Pチャネルトランジスタ
データシート
Case Connection	ISOLATED
Configuration	SINGLE
DS Breakdown Voltage-Min	60 V
Drain Current-Max (Abs) (ID)	20 A
Drain Current-Max (ID)	20 A
Drain-source On Resistance-Max	0.05 ohm
FET Technology	METAL-OXIDE SEMICONDUCTOR
JESD-30 Code	R-PSFM-T3
JESD-609 Code	e0
Number of Elements	1
Number of Terminals	3
Operating Mode	ENHANCEMENT MODE
Operating Temperature-Max	150 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Peak Reflow Temperature (Cel)	260
Polarity/Channel Type	P-CHANNEL
Power Dissipation-Max (Abs)	2 W
Pulsed Drain Current-Max (IDM)	80 A
Qualification Status	Not Qualified
Sub Category	Other Transistors
Surface Mount	NO
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	10
Transistor Application	SWITCHING
Transistor Element Material	SILICON
