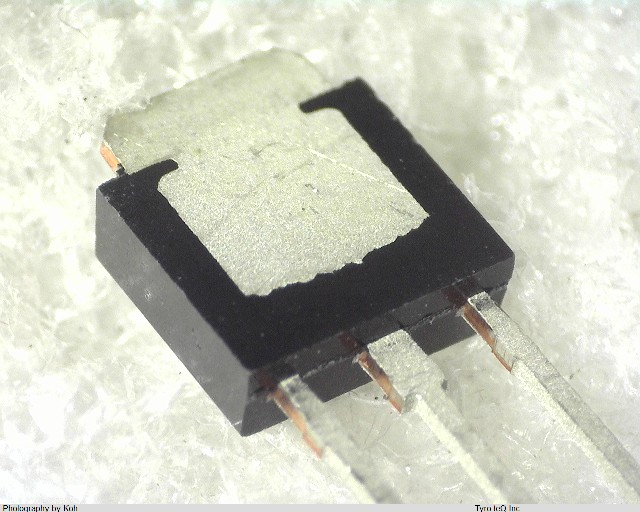

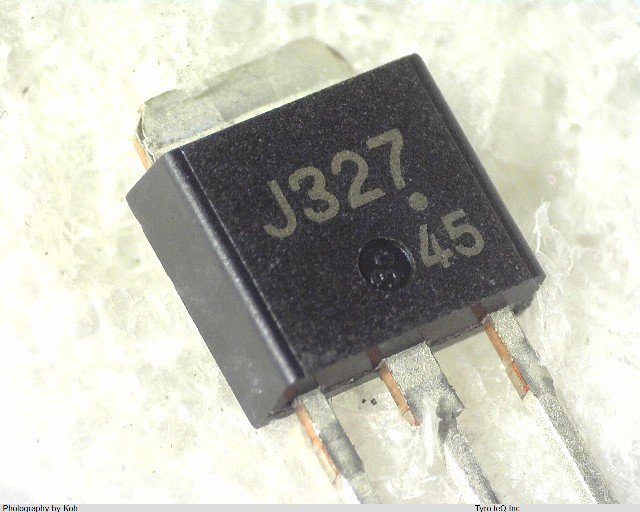

2SJ327-AZ

Name: 2SJ327-AZ
Brand: RENESAS
SKU: 30115904-0000-0000-0000

2SJ327-AZ - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

Pチャネル電界効果型トランジスタ|AZ：RohS対応品、かつ外部端子に鉛を含有していない製品

2SJ327-AZ の詳細情報

型番	2SJ327-AZ
メーカー	RENESAS
種別	Pチャネルトランジスタ
Case Connection	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE
DS Breakdown Voltage-Min	60 V
Drain Current-Max (Abs) (ID)	4 A
Drain Current-Max (ID)	4 A
Drain-source On Resistance-Max	0.17 ohm
FET Technology	METAL-OXIDE SEMICONDUCTOR
JESD-30 Code	R-PSIP-T3
Number of Elements	1
Number of Terminals	3
Operating Mode	ENHANCEMENT MODE
Operating Temperature-Max	150 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	260
Polarity/Channel Type	P-CHANNEL
Power Dissipation-Max (Abs)	20 W
Qualification Status	Not Qualified
Sub Category	Other Transistors
Surface Mount	NO
Terminal Form	THROUGH-HOLE
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	10
Transistor Application	SWITCHING
Transistor Element Material	SILICON
