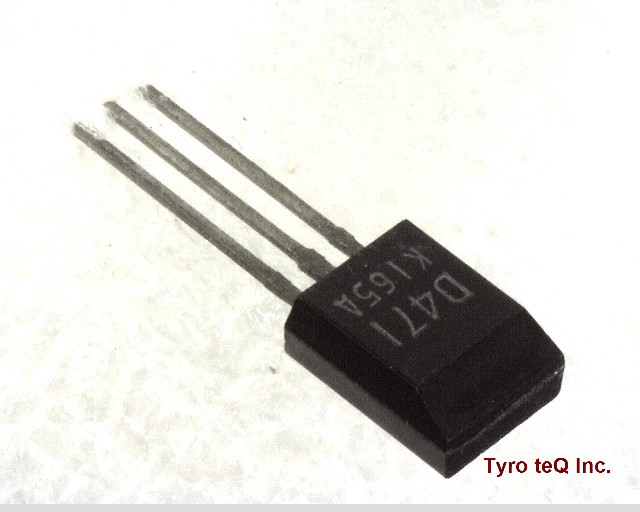

2SD471K データシート

Name: 2SD471K
Brand: RENESAS
SKU: 400054676-0000-0000-0000

2SD471K - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

2SD471K の詳細情報

型番	2SD471K
メーカー	RENESAS
種別	バイポーラトランジスタ
データシート
Collector Current-Max (IC)	1 A
Collector-emitter Voltage-Max	25 V
Configuration	SINGLE
DC Current Gain-Min (hFE)	200
JEDEC-95 Code	TO-92
JESD-30 Code	O-PBCY-W3
JESD-609 Code	e0
Number of Elements	1
Number of Terminals	3
Operating Temperature-Max	150 Cel
Operating Temperature-Min	-55 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	CYLINDRICAL Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Polarity/Channel Type	NPN
Power Dissipation-Max (Abs)	1 W
Qualification Status	Not Qualified
Sub Category	Other Transistors
Surface Mount	NO
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Transistor Application	AMPLIFIER
Transistor Element Material	SILICON
Transition Frequency-Nom (fT)	100 MHz
VCEsat-Max	0.35 V
