2SC3356 データシート

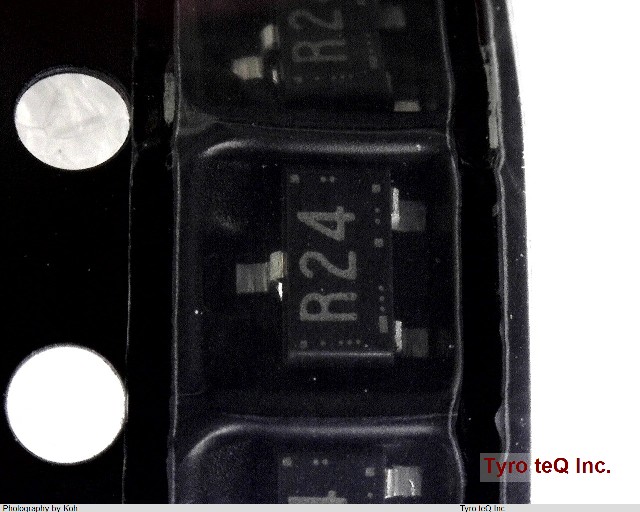

Name: 2SC3356
Brand: RENESAS
SKU: 30263116-0000-0000-0000

2SC3356 - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

NPN型バイポーラトランジスタ | 高周波用

2SC3356 の詳細情報

型番	2SC3356
メーカー	RENESAS
種別	バイポーラトランジスタ
データシート
Additional Feature	LOW NOISE
Collector Current-Max (IC)	0.1 A
Collector-base Capacitance-Max	1 pF
Collector-emitter Voltage-Max	12 V
Configuration	SINGLE
DC Current Gain-Min (hFE)	50
Highest Frequency Band	L BAND
JESD-30 Code	R-PDSO-G3
JESD-609 Code	e0
Moisture Sensitivity Level	1
Number of Elements	1
Number of Terminals	3
Operating Temperature-Max	150 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Polarity/Channel Type	NPN
Power Dissipation Ambient-Max	0.25 W
Power Dissipation-Max (Abs)	0.2 W
Power Gain-Min (Gp)	2 dB
Qualification Status	Not Qualified
Sub Category	Other Transistors
Surface Mount	YES
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	10
Transistor Application	AMPLIFIER
Transistor Element Material	SILICON
Transition Frequency-Nom (fT)	6000 MHz
VCEsat-Max	0.2 V
