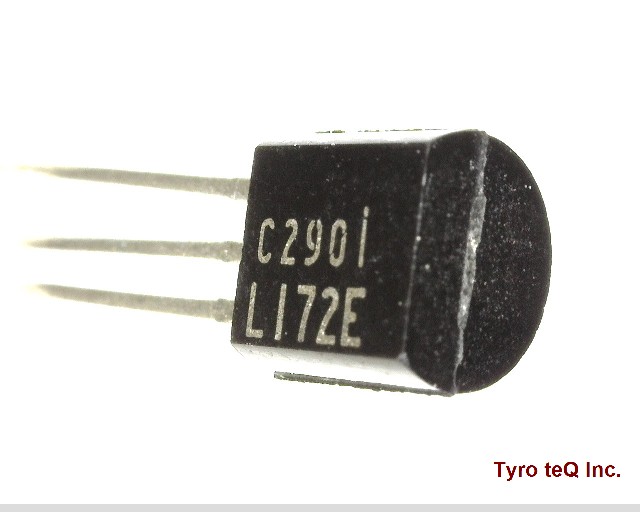

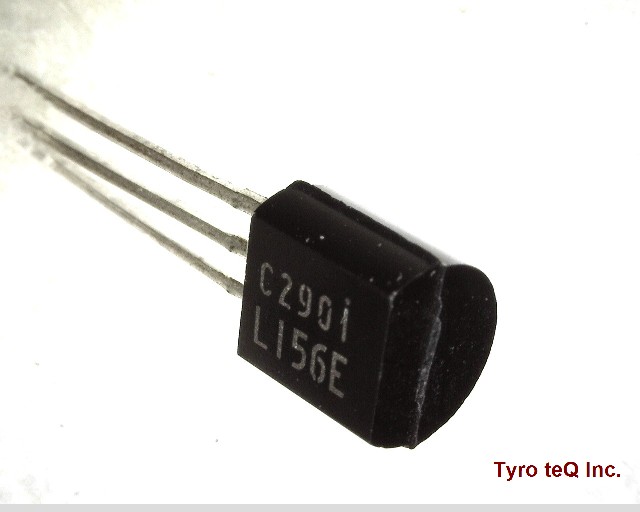

2SC2901-L

Name: 2SC2901-L
Brand: RENESAS
SKU: 400068564-0000-0000-0000

2SC2901-L - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

2SC2901-L の詳細情報

型番	2SC2901-L
メーカー	RENESAS
種別	バイポーラトランジスタ
Collector Current-Max (IC)	0.2 A
Collector-base Capacitance-Max	4 pF
Collector-emitter Voltage-Max	15 V
Configuration	SINGLE
DC Current Gain-Min (hFE)	40
JEDEC-95 Code	TO-92
JESD-30 Code	O-PBCY-W3
JESD-609 Code	e0
Number of Elements	1
Number of Terminals	3
Operating Temperature-Max	150 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	ROUND
Package Style	CYLINDRICAL Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Polarity/Channel Type	NPN
Power Dissipation-Max (Abs)	0.6 W
Qualification Status	Not Qualified
Sub Category	Other Transistors
Surface Mount	NO
Terminal Finish	TIN BISMUTH
Terminal Form	WIRE
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Transistor Application	SWITCHING
Transistor Element Material	SILICON
Transition Frequency-Nom (fT)	750 MHz
