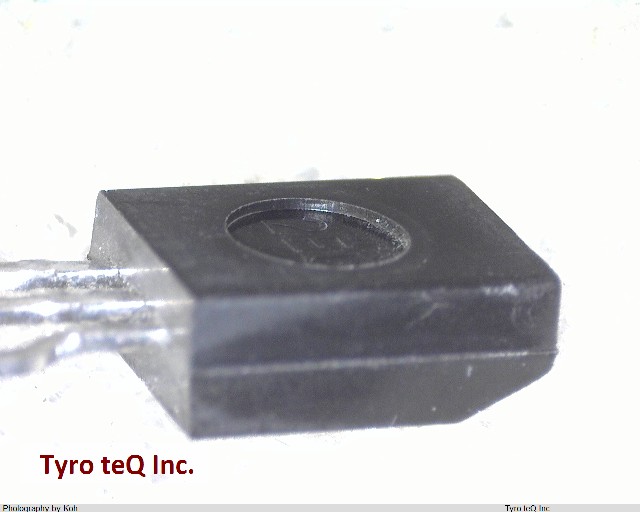

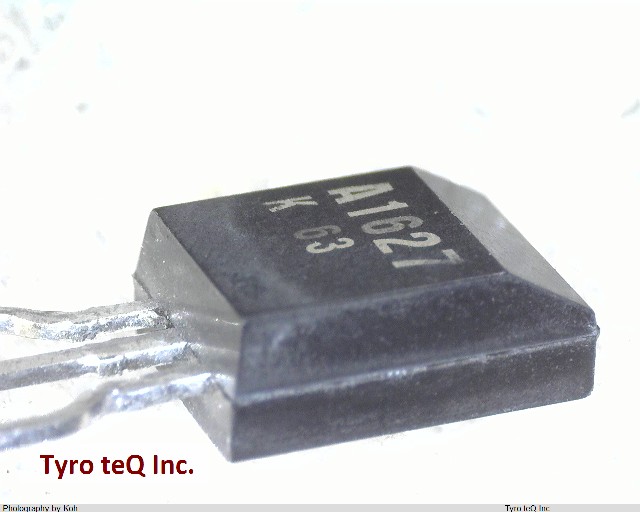

2SA1627-K データシート

Name: 2SA1627-K
Brand: RENESAS
SKU: 30113764-0000-0000-0000

2SA1627-K - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

PNP型バイポーラトランジスタ | 高周波用

2SA1627-K の詳細情報

型番	2SA1627-K
メーカー	RENESAS
種別	バイポーラトランジスタ
データシート
Collector Current-Max (IC)	1 A
Collector-emitter Voltage-Max	600 V
Configuration	SINGLE
DC Current Gain-Min (hFE)	60
JEDEC-95 Code	TO-126
JESD-30 Code	R-PSFM-T3
JESD-609 Code	e0
Number of Elements	1
Number of Terminals	3
Operating Temperature-Max	150 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Polarity/Channel Type	PNP
Power Dissipation-Max (Abs)	1 W
Qualification Status	Not Qualified
Sub Category	Other Transistors
Surface Mount	NO
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Transistor Application	SWITCHING
Transistor Element Material	SILICON
Transition Frequency-Nom (fT)	10 MHz
Turn-off Time-Max (toff)	5500 ns
Turn-on Time-Max (ton)	500 ns
