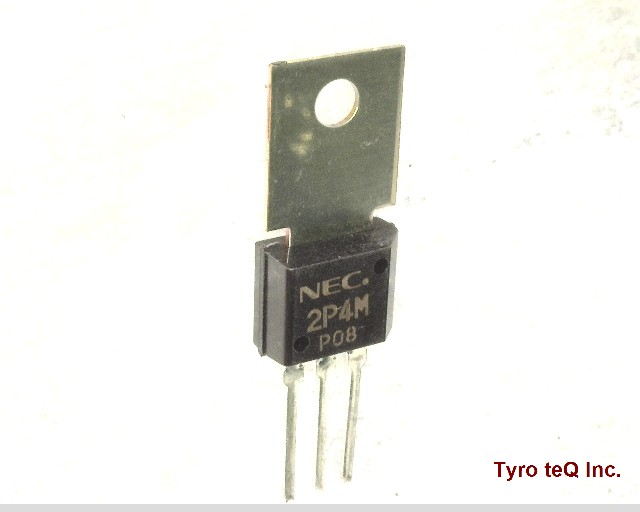

2P4M-AZ

Name: 2P4M-AZ
Brand: RENESAS
SKU: 30261143-0000-0000-0000

2P4M-AZ - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

2P4M-AZ の詳細情報

型番	2P4M-AZ
メーカー	RENESAS
Case Connection	ANODE
Circuit Commutated Turn-off Time-Nom	30 us
Configuration	SINGLE
Critical Rate of Rise of Off-state Voltage-Min	10 V/us
DC Gate Trigger Current-Max	0.2 mA
DC Gate Trigger Voltage-Max	0.8 V
Holding Current-Max	3 mA
JESD-30 Code	R-PSFM-T3
JESD-609 Code	e6
Leakage Current-Max	0.1 mA
Non-Repetitive Pk On-state Cur	20 A
Number of Elements	1
Number of Terminals	3
On-State Voltage-Max	2.2 V
On-state Current-Max	2000 A
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-45 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Qualification Status	Not Qualified
RMS On-state Current-Max	4 A
Repetitive Peak Off-state Voltage	400 V
Repetitive Peak Reverse Voltage	400 V
Sub Category	Silicon Controlled Rectifiers
Surface Mount	NO
Terminal Finish	Tin/Bismuth (Sn/Bi)
Terminal Form	THROUGH-HOLE
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Trigger Device Type	SCR
