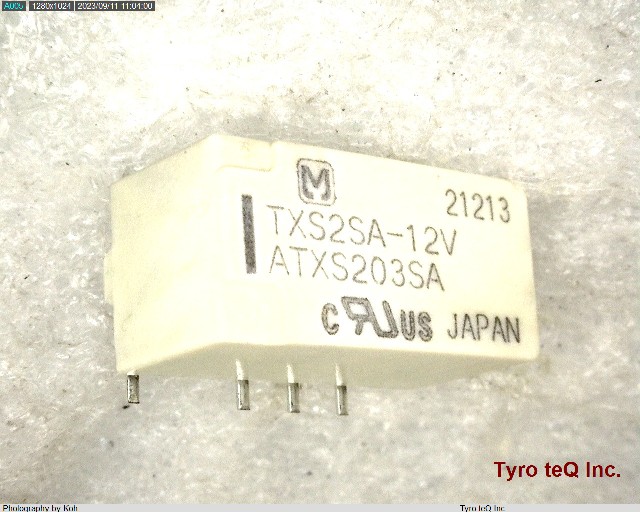

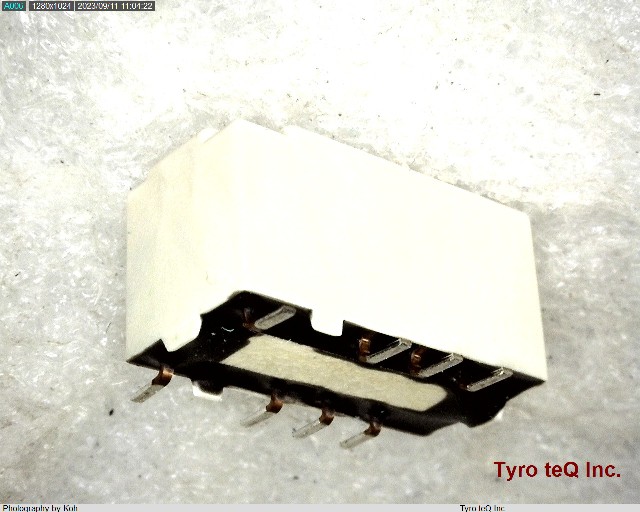

TX2SA-12V

Name: TX2SA-12V
Brand: PANASONIC
SKU: 400066486-0000-0000-0000

TX2SA-12V - PANASONIC の商品詳細ページです。

２営業日以内に回答いたします

TX2SA-12V の詳細情報

型番	TX2SA-12V
メーカー	PANASONIC
Additional Feature	LOW PROFILE
Body Breadth	7.4 inch
Body Breadth (mm)	7.4
Body Height	8.2 mm
Body Height (mm)	8.2
Body Length or Diameter	15 mm
Body Length or Diameter (mm)	15
Coil Current(DC)-Max	0.0117 A
Coil Current(DC)-Max (A)	0.012
Coil Operate Voltage(DC)	9 V
Coil Operate Voltage(DC) (V)	9
Coil Power	140 mW
Coil Power (mW)	140
Coil Release Voltage(DC)	1.2 V
Coil Release Voltage(DC) (V)	1.2
Coil Resistance	1028 ohm
Coil Resistance (ohm)	1028
Coil Voltage(DC)-Max (V)	12
Coil Voltage-Nom (V)	12
Coil/Input Supply Type	DC
Contact AC Max Rating R Load	7.5A@250VAC
Contact Current(DC)-Max (A)	1
Contact DC Max Power Rating R Load	30W@220VDC
Contact DC Max Rating R Load	1A@220VDC
Contact Resistance (mohm)	100
Contact Voltage(DC)-Max (V)	220
Contact/Output Supply Type	AC/DC
Dielectric Strength Between Coil and Contacts (Vrms)	2000
Dielectric Strength Between Open Contacts (Vrms)	1000
Electrical Life (Cycle(s))	100000
End Contact Material	Silver
End Contact Plating	GOLD
Input Switching Control Type	Random
Insulation Resistance (ohm)	1000000000
Mounting Feature	SURFACE MOUNT-STRAIGHT
Number of Terminals	8
Operate Time (ms)	4
Operating Temperature-Max (Cel)	85
Operating Temperature-Min (Cel)	-40
Packing Method	BOX; TAPE AND REEL
Physical Dimension	15mm x 7.4mm x 8.2mm
Relay Action	MOMENTARY
Relay Form	2 FORM C
Relay Function	DPDT
Relay Type	POWER/SIGNAL RELAY
Release Time (ms)	4
Screening Level / Reference Standard	BSI; CSA; UL
Sealing	IP67; RT3
Termination Type	SOLDER
Weight (g)	2
