TQ2L25V データシート

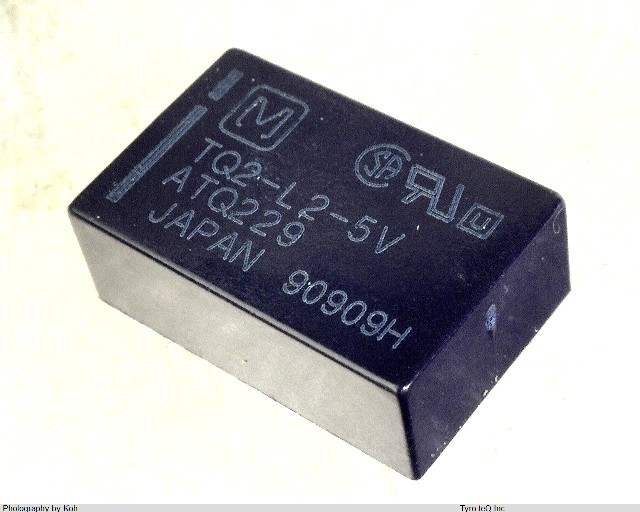

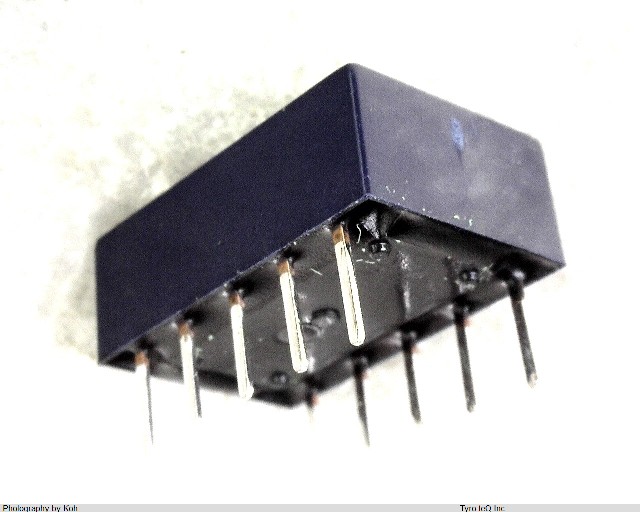

Name: TQ2L25V
Brand: PANASONIC
SKU: 300006382-0000-0000-0000

TQ2L25V - PANASONIC の商品詳細ページです。

２営業日以内に回答いたします

TQ2L25V の詳細情報

型番	TQ2L25V
メーカー	PANASONIC
データシート
Additional Feature	LOW PROFILE
Body Breadth	9 inch
Body Height	5 mm
Body Length or Diameter	14 mm
Coil Current(DC)-Max	0.04 A
Coil Operate Voltage(DC)	3.75 V
Coil Power	200 mW
Coil Release Voltage(DC)	3.75 V
Coil Resistance	125 ohm
Coil Voltage(DC)-Max	5 V
Coil Voltage-Nom	5 V
Coil/Input Supply Type	DC
Contact AC Max Power Rating R Load	62.5VA@125VAC
Contact AC Max Rating R Load	.5A@125VAC
Contact Current(AC)-Max	0.5 A
Contact Current(DC)-Max	1 A
Contact DC Max Power Rating R Load	20W@30VDC
Contact DC Max Rating R Load	1A@30VDC
Contact Resistance	50 mohm
Contact Voltage(AC)-Max	125 V
Contact Voltage(DC)-Max	30 V
Contact/Output Supply Type	AC/DC
Electrical Life	100000 Cycle(s)
End Contact Material	Silver
End Contact Plating	GOLD
Input Switching Control Type	Random
Insulation Resistance	1000000000 ohm
Mounting Feature	THROUGH HOLE-STRAIGHT MOUNT
Number of Terminals	10
Operate Time	3 ms
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-40 Cel
PCB Hole Count	10
Packing Method	BOX; TUBE
Physical Dimension	14mm x 9mm x 5mm
Reference Standard	BSI; CSA; UL
Relay Action	LATCHED
Relay Form	2 FORM C
Relay Function	DPDT
Relay Type	POWER/SIGNAL RELAY
Release Time	3 ms
Terminal Length	0.0035 inch
Termination Type	SOLDER
Weight	2 g
