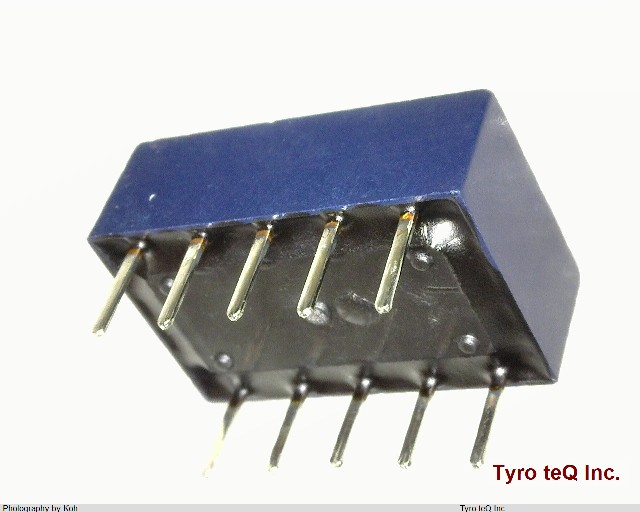

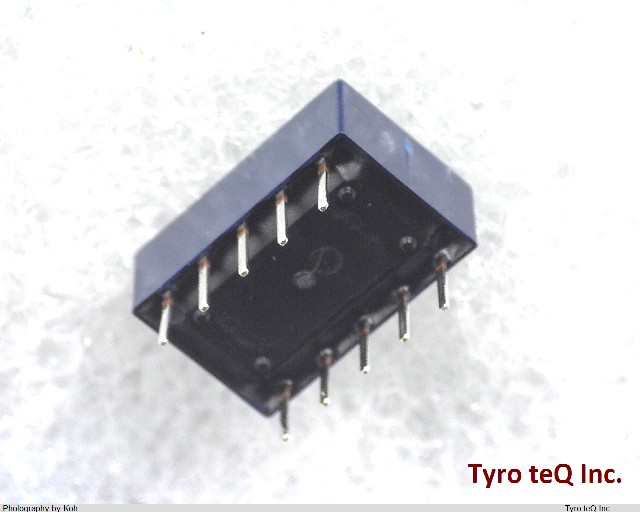

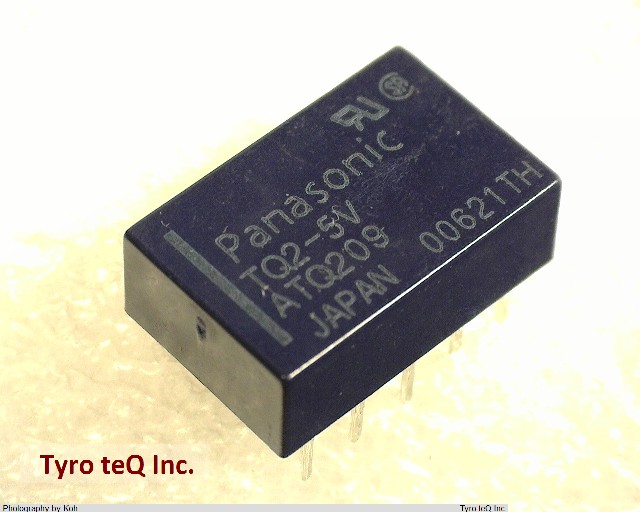

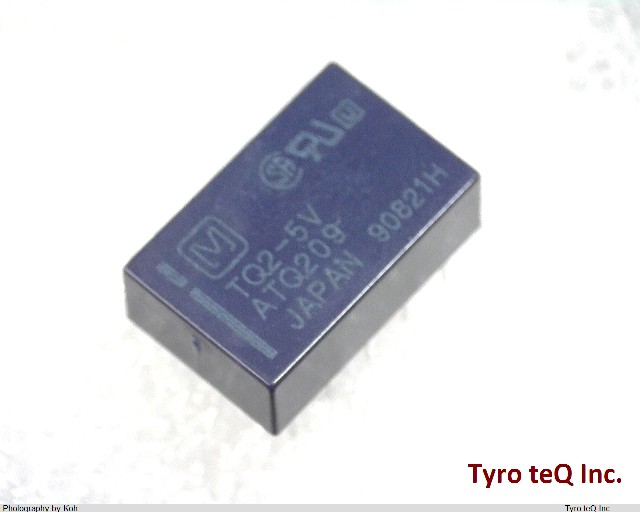

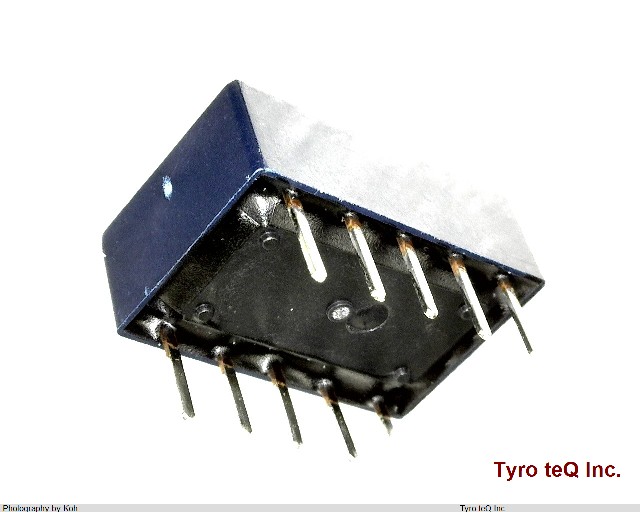

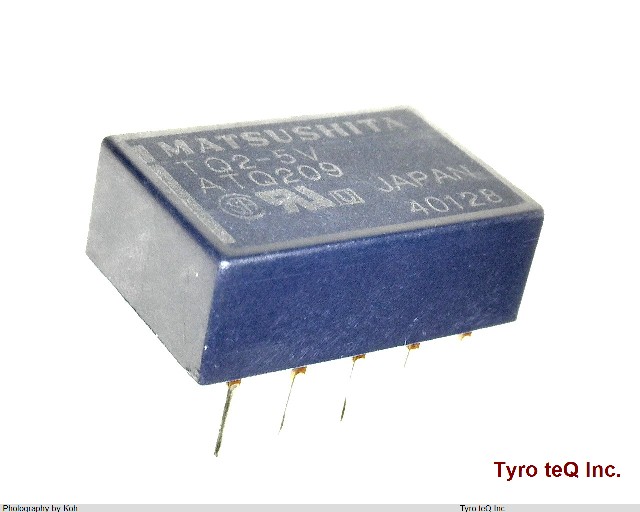

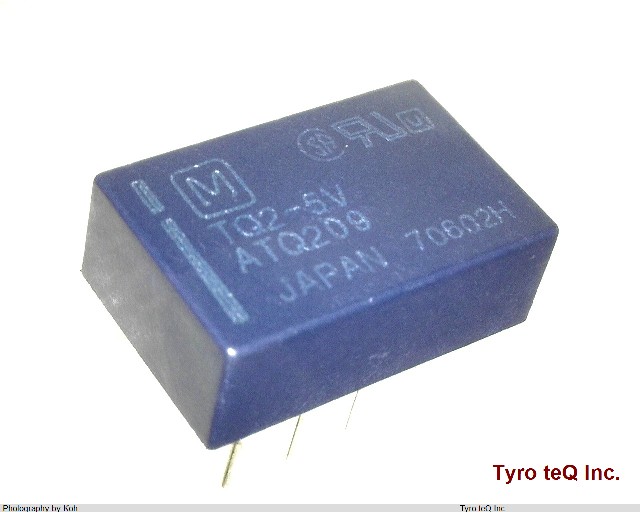

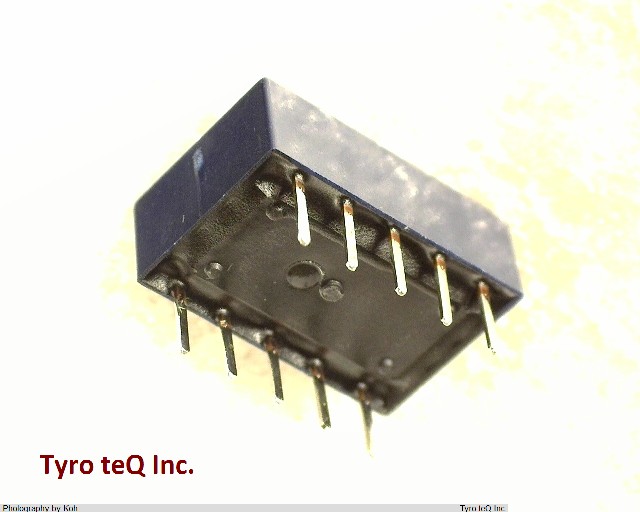

TQ2-5V データシート

Name: TQ2-5V
Brand: PANASONIC
SKU: 300384374-0000-0000-0000

TQ2-5V - PANASONIC の商品詳細ページです。

２営業日以内に回答いたします

TQ2-5V の詳細情報

型番	TQ2-5V
メーカー	PANASONIC
データシート
Additional Feature	LOW PROFILE
Body Breadth	9 inch
Body Height	5 mm
Body Length or Diameter	14 mm
Coil Current(DC)-Max	0.028 A
Coil Operate Voltage(DC)	3.75 V
Coil Power	140 mW
Coil Release Voltage(DC)	0.5 V
Coil Resistance	178 ohm
Coil Voltage(DC)-Max	5 V
Coil Voltage-Nom	5 V
Coil/Input Supply Type	DC
Contact AC Max Power Rating R Load	62.5VA@125VAC
Contact AC Max Rating R Load	.5A@125VAC
Contact Current(AC)-Max	0.5 A
Contact Current(DC)-Max	1 A
Contact DC Max Power Rating R Load	20W@30VDC
Contact DC Max Rating R Load	1A@30VDC
Contact Resistance	50 mohm
Contact Voltage(AC)-Max	125 V
Contact Voltage(DC)-Max	30 V
Contact/Output Supply Type	AC/DC
Dielectric Strength Between Coil and Contacts	1000 Vrms
Dielectric Strength Between Open Contacts	2121 Vrms
Electrical Life	100000 Cycle(s)
End Contact Material	Silver
End Contact Plating	Gold
Input Switching Control Type	Random
Insulation Resistance	1000000000 ohm
JESD-609 Code	e2
Mounting Feature	THROUGH HOLE-STRAIGHT MOUNT
Number of Terminals	10
Operate Time	3 ms
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-40 Cel
PCB Hole Count	10
Packing Method	BOX; TUBE
Physical Dimension	14mm x 9mm x 5mm
Reference Standard	BSI; CSA; UL
Relay Action	MOMENTARY
Relay Form	2 FORM C
Relay Function	DPDT
Relay Type	POWER/SIGNAL RELAY
Release Time	3 ms
Terminal Finish	Tin/Copper (Sn/Cu)
Terminal Length	0.0035 inch
Termination Type	SOLDER
Weight	2 g
