TK1-5V データシート

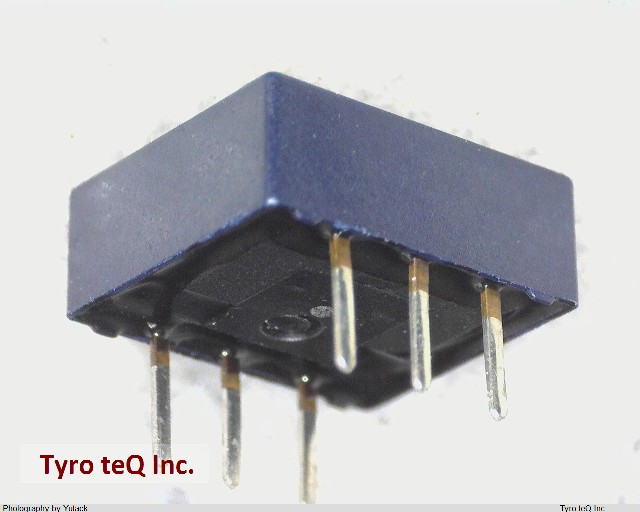

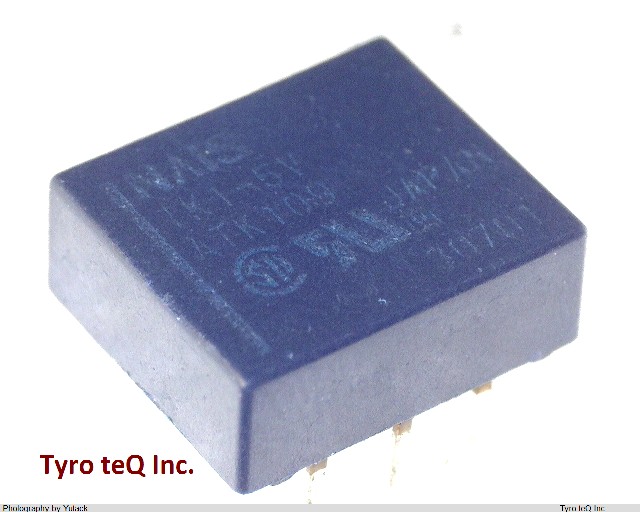

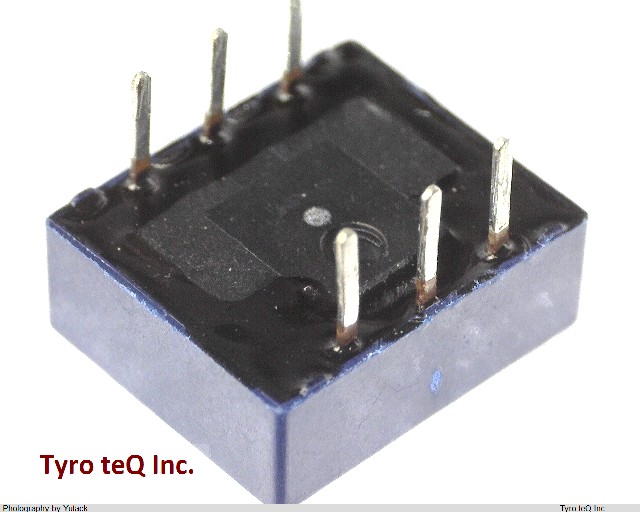

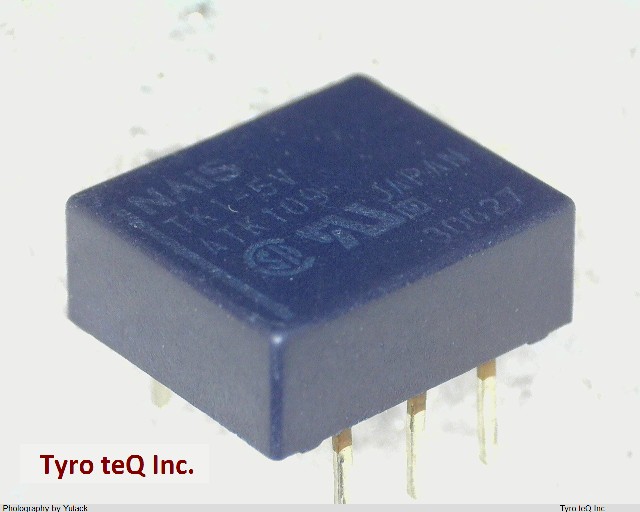

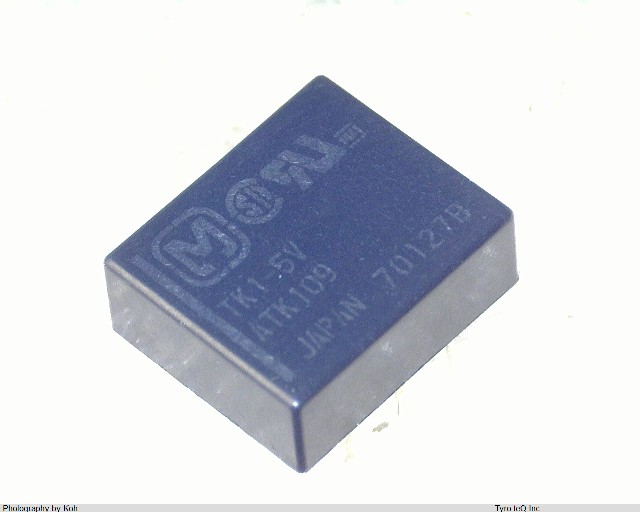

Name: TK1-5V
Brand: PANASONIC
SKU: 300384932-0000-0000-0000

TK1-5V - PANASONIC の商品詳細ページです。

２営業日以内に回答いたします

TK1-5V の詳細情報

型番	TK1-5V
メーカー	PANASONIC
データシート
Body Breadth	9 inch
Body Height	4 mm
Body Length or Diameter	10.6 mm
Coil Current(DC)-Max	0.028 A
Coil Operate Voltage(DC)	3.75 V
Coil Power	140 mW
Coil Release Voltage(DC)	0.5 V
Coil Resistance	178 ohm
Coil Voltage(DC)-Max	5 V
Coil Voltage-Nom	5 V
Coil/Input Supply Type	DC
Contact Current(DC)-Max	2 A
Contact DC Max Power Rating R Load	60W@220VDC
Contact DC Max Rating R Load	2A@220VDC
Contact Resistance	50 mohm
Contact Voltage(DC)-Max	220 V
Contact/Output Supply Type	DC
Dielectric Strength Between Coil and Contacts	1500 Vrms
Dielectric Strength Between Open Contacts	750 Vrms
Electrical Life	100000 Cycle(s)
End Contact Material	Silver Alloy
End Contact Plating	GOLD
Input Switching Control Type	Random
Insulation Resistance	1000000000 ohm
Mounting Feature	THROUGH HOLE-STRAIGHT MOUNT
Number of Terminals	6
Operate Time	3 ms
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
PCB Hole Count	6
Packing Method	BOX; TUBE
Physical Dimension	10.6mm x 9mm x 4mm
Reference Standard	CSA; UL
Relay Action	MOMENTARY
Relay Form	1 FORM C
Relay Function	SPDT
Relay Type	POWER/SIGNAL RELAY
Release Time	2 ms
Terminal Length	0.0035 inch
Termination Type	SOLDER
Weight	1 g
