TF2-5V データシート

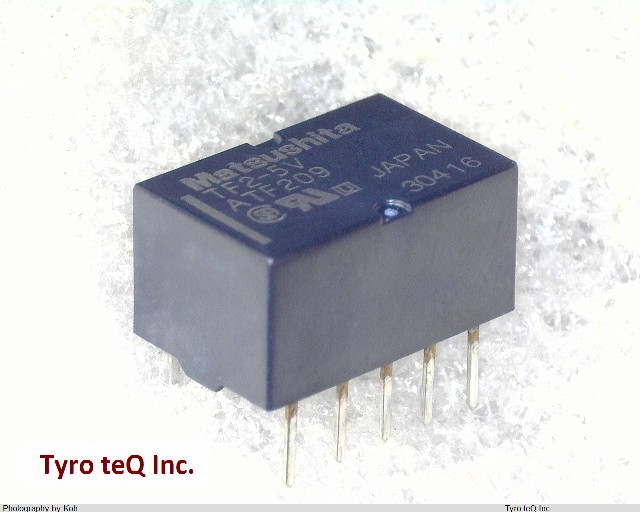

Name: TF2-5V
Brand: PANASONIC
SKU: 300084205-0000-0000-0000

TF2-5V - PANASONIC の商品詳細ページです。

２営業日以内に回答いたします

TF2-5V の詳細情報

型番	TF2-5V
メーカー	PANASONIC
データシート
Body Breadth	9 inch
Body Height	7.8 mm
Body Length or Diameter	14 mm
Coil Power	80 mW
Coil Voltage(DC)-Max	7.5 V
Coil Voltage-Nom	5 V
Coil/Input Supply Type	DC
Contact AC Max Rating R Load	0.5A@125VAC
Contact Current(AC)-Max	0.5 A
Contact Current(DC)-Max	1 A
Contact DC Max Rating R Load	1A@30VDC
Contact Resistance	50 mohm
Contact Voltage(AC)-Max	125 V
Contact Voltage(DC)-Max	30 V
Contact/Output Supply Type	DC
Input Switching Control Type	Random
Insulation Resistance	1000000000 ohm
Mounting Feature	THROUGH HOLE-STRAIGHT MOUNT
Number of Terminals	8
Operate Time	4 ms
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-40 Cel
Physical Dimension	14.2mm x 9.2mm x 7.8mm
Reference Standard	CSA; UL
Relay Action	LATCHED
Relay Function	DPDT
Relay Type	POWER/SIGNAL RELAY
Release Time	4 ms
Terminal Length	0.004 inch
Termination Type	SOLDER
Weight	2 g
