NR-SD-24V データシート

Name: NR-SD-24V
Brand: PANASONIC
SKU: 240117888-0000-0000-0000

NR-SD-24V - PANASONIC の商品詳細ページです。

２営業日以内に回答いたします

NR-SD-24V の詳細情報

型番	NR-SD-24V
メーカー	PANASONIC
データシート
Body Breadth	10 inch
Body Height	10 mm
Body Length or Diameter	20 mm
Coil Current(DC)-Max	0.012 A
Coil Operate Voltage(DC)	16 V
Coil Power	288 mW
Coil Release Voltage(DC)	2.4 V
Coil Resistance	2000 ohm
Coil Voltage(DC)-Max	42 V
Coil Voltage-Nom	24 V
Coil/Input Supply Type	DC
Contact AC Max Power Rating R Load	33VA@110VAC
Contact AC Max Rating R Load	0.3A@110VAC
Contact Current(AC)-Max	0.3 A
Contact Current(DC)-Max	1 A
Contact DC Max Power Rating R Load	20W@30VDC
Contact DC Max Rating R Load	1A@30VDC
Contact Resistance	60 mohm
Contact Voltage(AC)-Max	110 V
Contact Voltage(DC)-Max	30 V
Contact/Output Supply Type	AC/DC
End Contact Material	Gold Cobalt
Input Switching Control Type	Random
Insulation Resistance	1000000000 ohm
Mounting Feature	THROUGH HOLE-STRAIGHT MOUNT

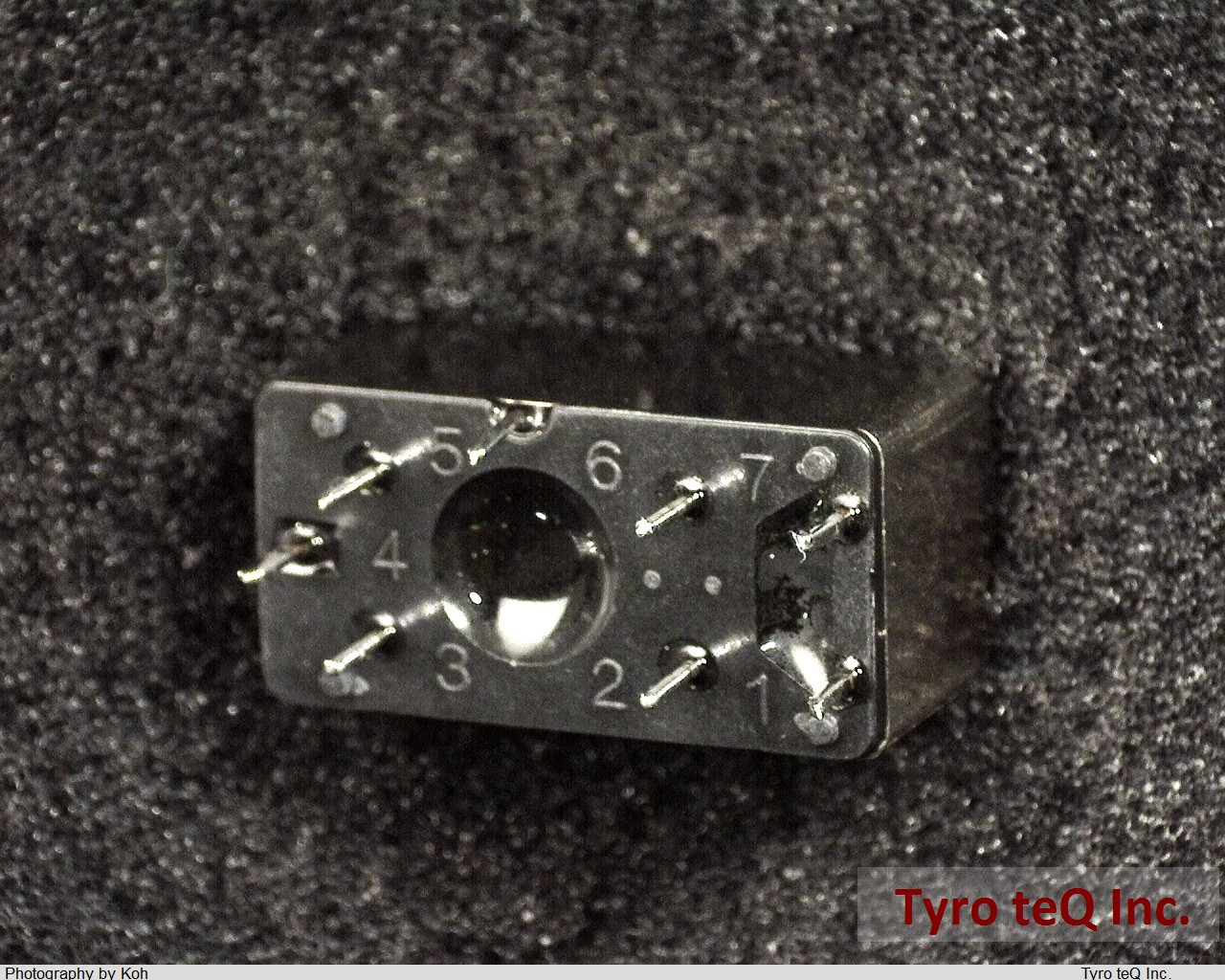

Number of Terminals	8
Operate Time	3.5 ms
Operating Temperature-Max	65 Cel
Operating Temperature-Min	-55 Cel
Packing Method	BOX
Physical Dimension	20mm x 10mm x 10mm
Relay Action	MOMENTARY
Relay Form	1 FORM C
Relay Function	SPDT
Relay Type	POWER/SIGNAL RELAY
Release Time	2.5 ms
Terminal Length	0.004 inch
Termination Type	SOLDER
