NF4EB-12V データシート

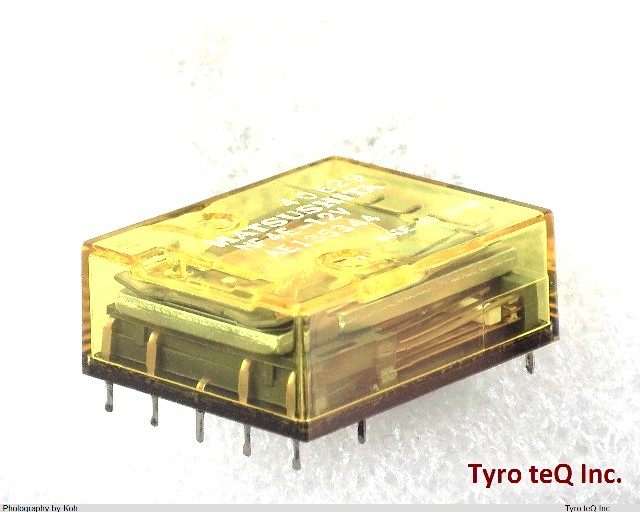

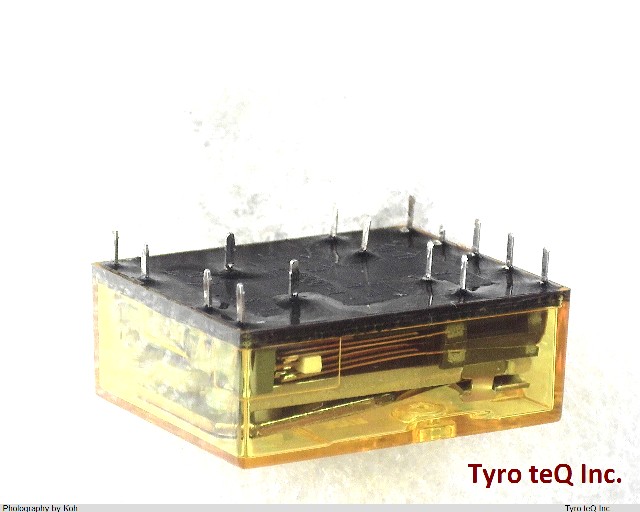

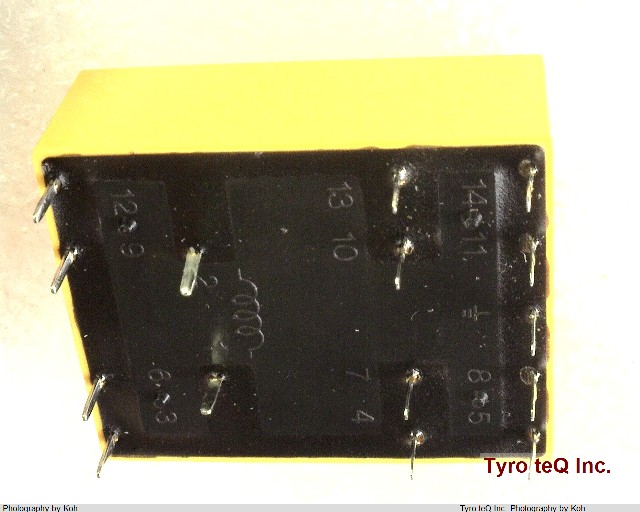

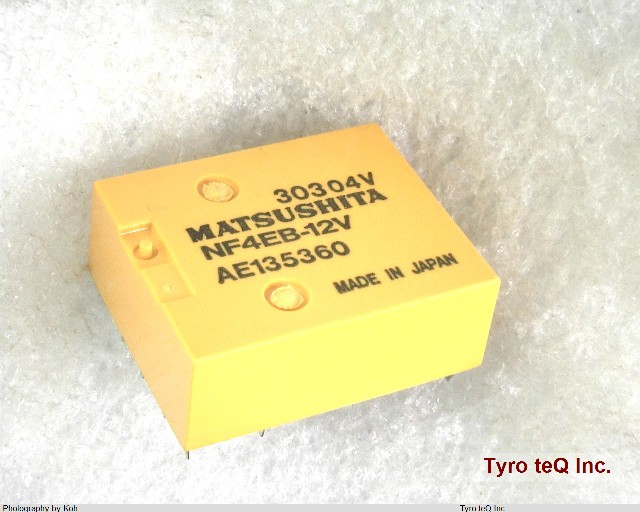

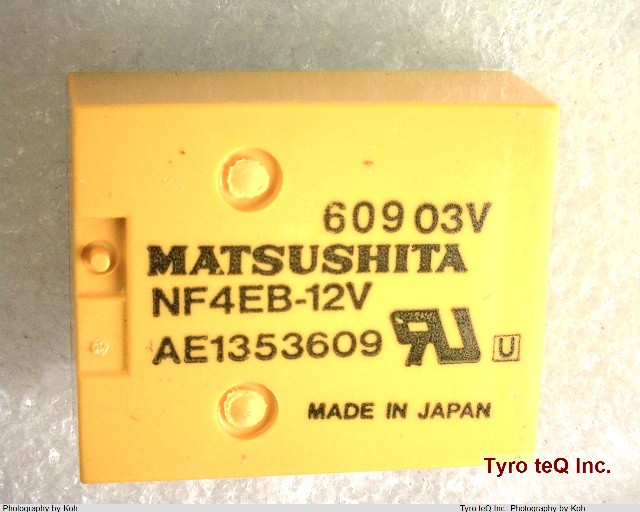

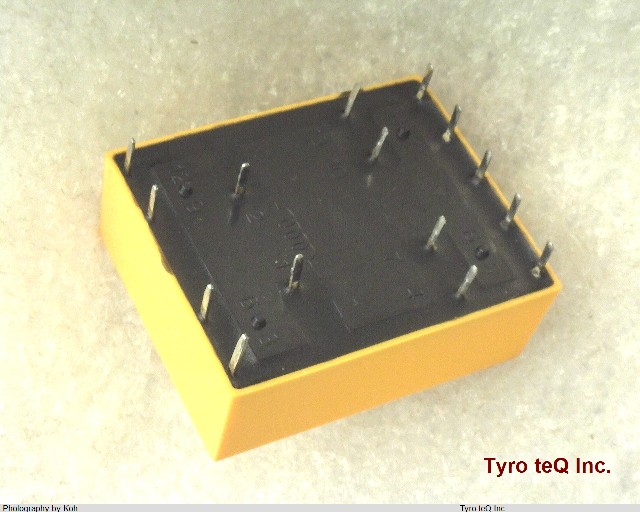

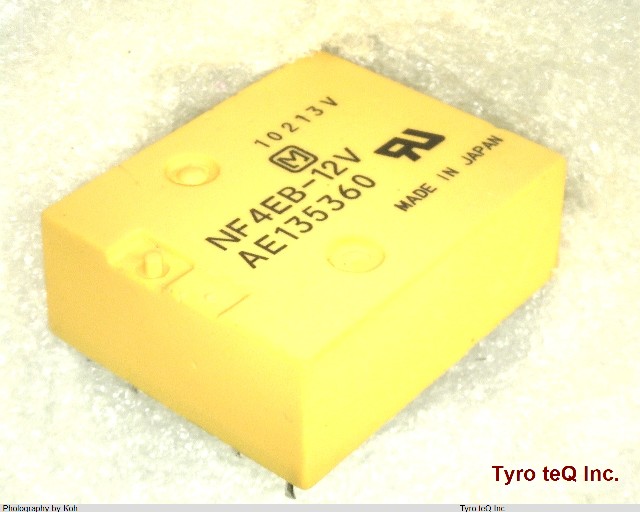

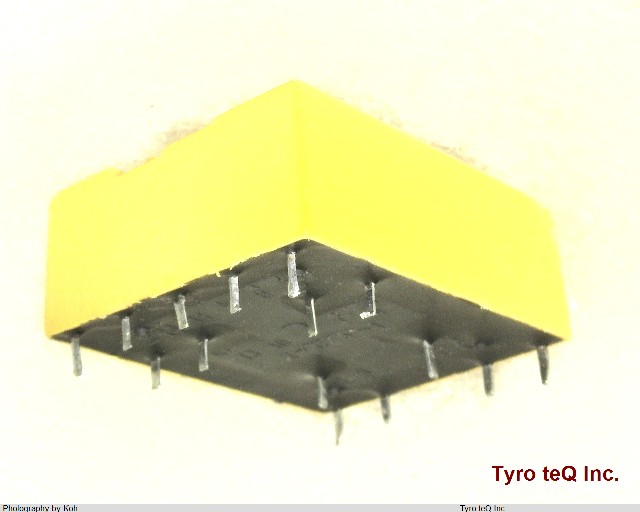

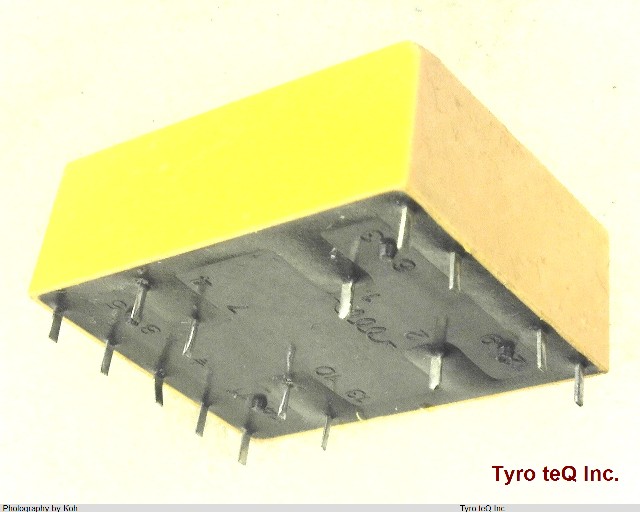

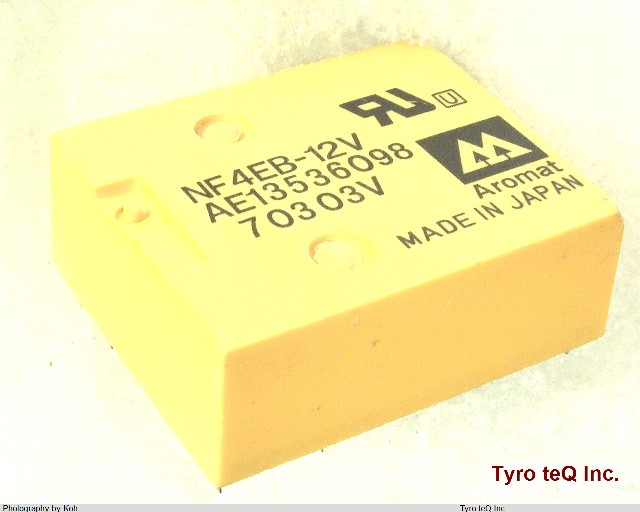

Name: NF4EB-12V
Brand: PANASONIC
SKU: 240019005-0000-0000-0000

NF4EB-12V - PANASONIC の商品詳細ページです。

２営業日以内に回答いたします

NF4EB-12V の詳細情報

型番	NF4EB-12V
メーカー	PANASONIC
データシート
Body Breadth	20 inch
Body Height	10.8 mm
Body Length or Diameter	30.2 mm
Coil Operate Voltage(DC)	9.6 V
Coil Power	440 mW
Coil Release Voltage(DC)	1.2 V
Coil Resistance	330 ohm
Coil Voltage(DC)-Max	17 V
Coil Voltage-Nom	12 V
Coil/Input Supply Type	DC
Contact AC Max Power Rating R Load	100VA@220VAC
Contact AC Max Rating R Load	2A@220VAC
Contact Current(AC)-Max	2 A
Contact Current(DC)-Max	2 A
Contact DC Max Power Rating R Load	60W@220VDC
Contact DC Max Rating R Load	2A@30VDC
Contact Resistance	50 mohm
Contact Voltage(AC)-Max	220 V
Contact Voltage(DC)-Max	30 V
Contact/Output Supply Type	AC/DC
Dielectric Strength Between Coil and Contacts	1000 Vrms
Dielectric Strength Between Open Contacts	750 Vrms
Electrical Life	200000 Cycle(s)
End Contact Material	Silver
End Contact Plating	GOLD
Input Switching Control Type	Random
Insulation Resistance	1000000000 ohm
Manufacturer Series	NF
Number of Terminals	15
Operate Time	15 ms
Operating Temperature-Max	65 Cel
Operating Temperature-Min	-40 Cel
PCB Hole Count	15
Physical Dimension	30.2mm x 20mm x 10.8mm
Reference Standard	CSA; UL
Relay Action	LATCHED
Relay Form	4 FORM C
Relay Function	4PDT
Relay Type	WET REED RELAY
Release Time	10 ms
Terminal Length	0.003 inch
Termination Type	SOLDER
Weight	15.5 g
