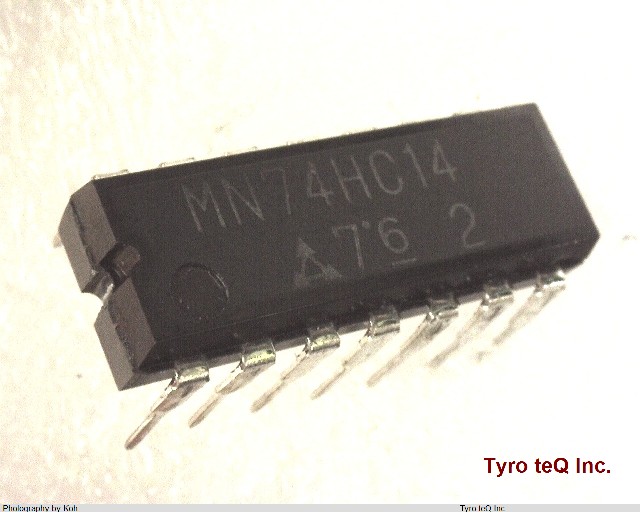

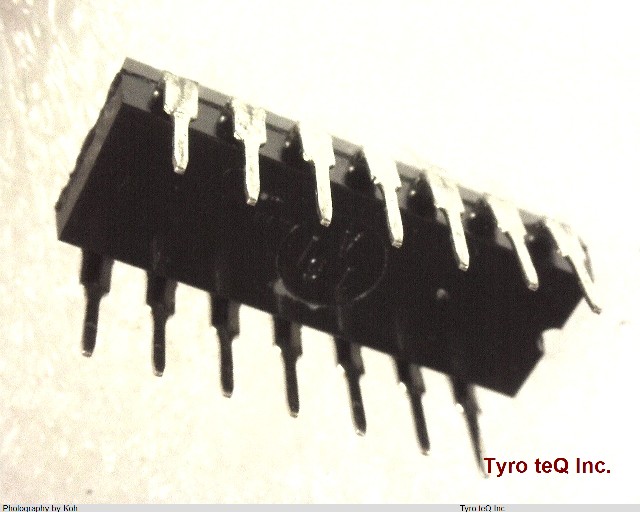

MN74HC14 データシート

Name: MN74HC14
Brand: PANASONIC
SKU: 400052058-0000-0000-0000

MN74HC14 - PANASONIC の商品詳細ページです。

２営業日以内に回答いたします

MN74HC14 の詳細情報

型番	MN74HC14
メーカー	PANASONIC
データシート
Family	HC/UH
JESD-30 Code	R-PDIP-T14
JESD-609 Code	e0
Length	19.2 mm
Load Capacitance (CL)	50 pF
Logic IC Type	ENCODER
Max I(ol)	0.006 Amp
Number of Bits	8
Number of Functions	1
Number of Inputs	1
Number of Terminals	14
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	2/6 V
Prop. Delay@Nom-Sup	15 ns
Propagation Delay (tpd)	95 ns
Qualification Status	Not Qualified
Schmitt Trigger	YES
Seated Height-Max	4.8 mm
Sub Category	Gates
Supply Voltage-Max (Vsup)	6 V
Supply Voltage-Min (Vsup)	1.4 V
Supply Voltage-Nom (Vsup)	2 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7.62 mm
