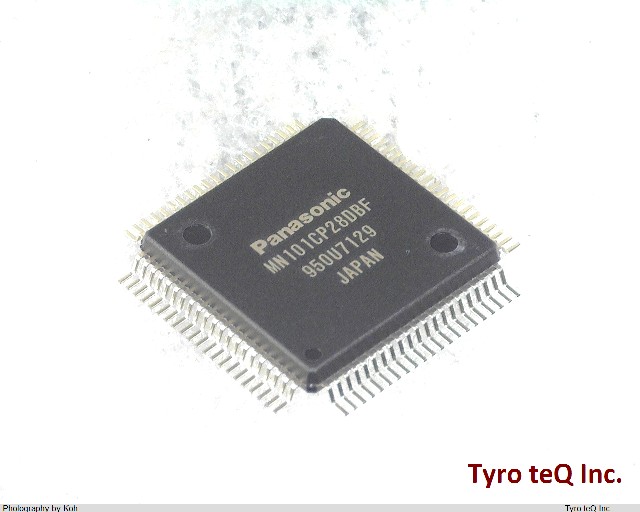

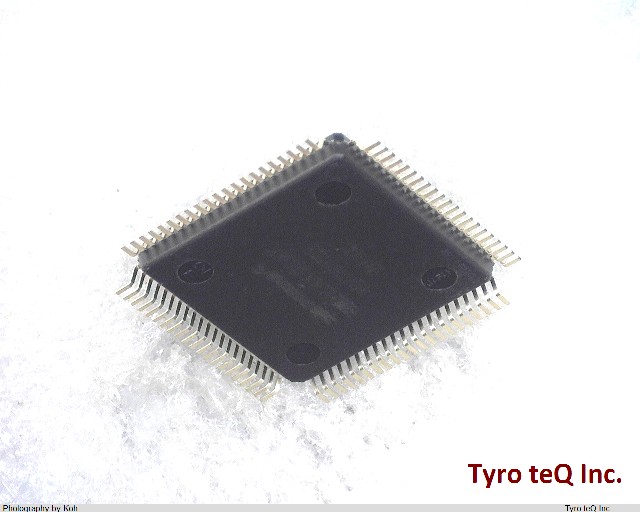

MN101CP28DBF データシート

Name: MN101CP28DBF
Brand: PANASONIC
SKU: 230761491-0000-0000-0000

MN101CP28DBF - PANASONIC の商品詳細ページです。

２営業日以内に回答いたします

MN101CP28DBF の詳細情報

型番	MN101CP28DBF
メーカー	PANASONIC
データシート
ADC Channels	YES
Additional Feature	ALSO AVAILABLE IN TQFP-80 AND QFP-84 PACKAGE; ALSO OPERATES AT 2.3V MINIMUM SUPPLY
Address Bus Width	18
Bit Size	8
Clock Frequency-Max	20 MHz
DAC Channels	NO
DMA Channels	NO
External Data Bus Width	8
JESD-30 Code	S-PQFP-G80
Length	14 mm
Number of I/O Lines	70
Number of Terminals	80
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	LQFP
Package Shape	SQUARE
Package Style	FLATPACK, LOW PROFILE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Qualification Status	Not Qualified
ROM Programmability	OTPROM
Seated Height-Max	1.7 mm
Speed	20 rpm
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	14 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
