MA3X786 データシート

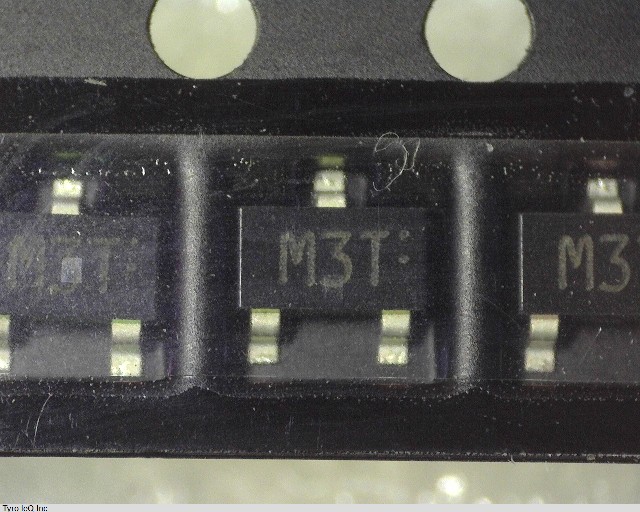

Name: MA3X786
Brand: PANASONIC
SKU: 230751657-0000-0000-0000

MA3X786 - PANASONIC の商品詳細ページです。

２営業日以内に回答いたします

MA3X786 の詳細情報

型番	MA3X786
メーカー	PANASONIC
データシート
Additional Feature	HIGH SPEED SWITCH
Configuration	COMMON ANODE, 2 ELEMENTS
Diode Element Material	SILICON
Diode Type	RECTIFIER DIODE
Forward Voltage-Max (VF)	0.55 V
JEDEC-95 Code	TO-236
JESD-30 Code	R-PDSO-G3
JESD-609 Code	e6
Moisture Sensitivity Level	1
Non-rep Pk Forward Current-Max	1 A
Number of Elements	1
Number of Phases	1
Number of Terminals	3
Operating Temperature-Max	125 Cel
Output Current-Max	0.1 A
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Qualification Status	Not Qualified
Rep Pk Reverse Voltage-Max	30 V
Reverse Recovery Time-Max	0.002 us
Sub Category	Rectifier Diodes
Surface Mount	YES
Technology	SCHOTTKY
Terminal Finish	TIN BISMUTH
Terminal Form	GULL WING
Terminal Position	DUAL
