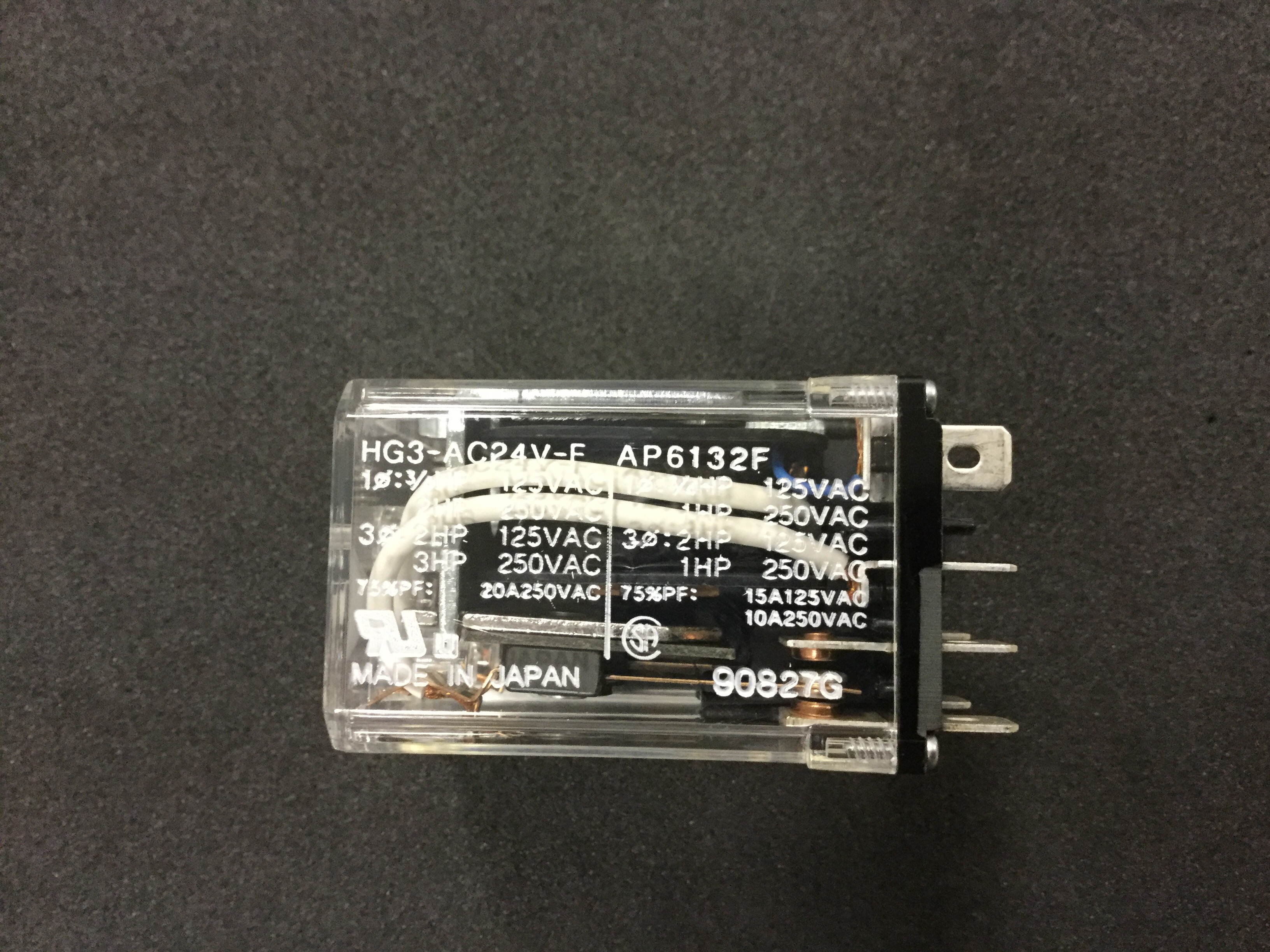

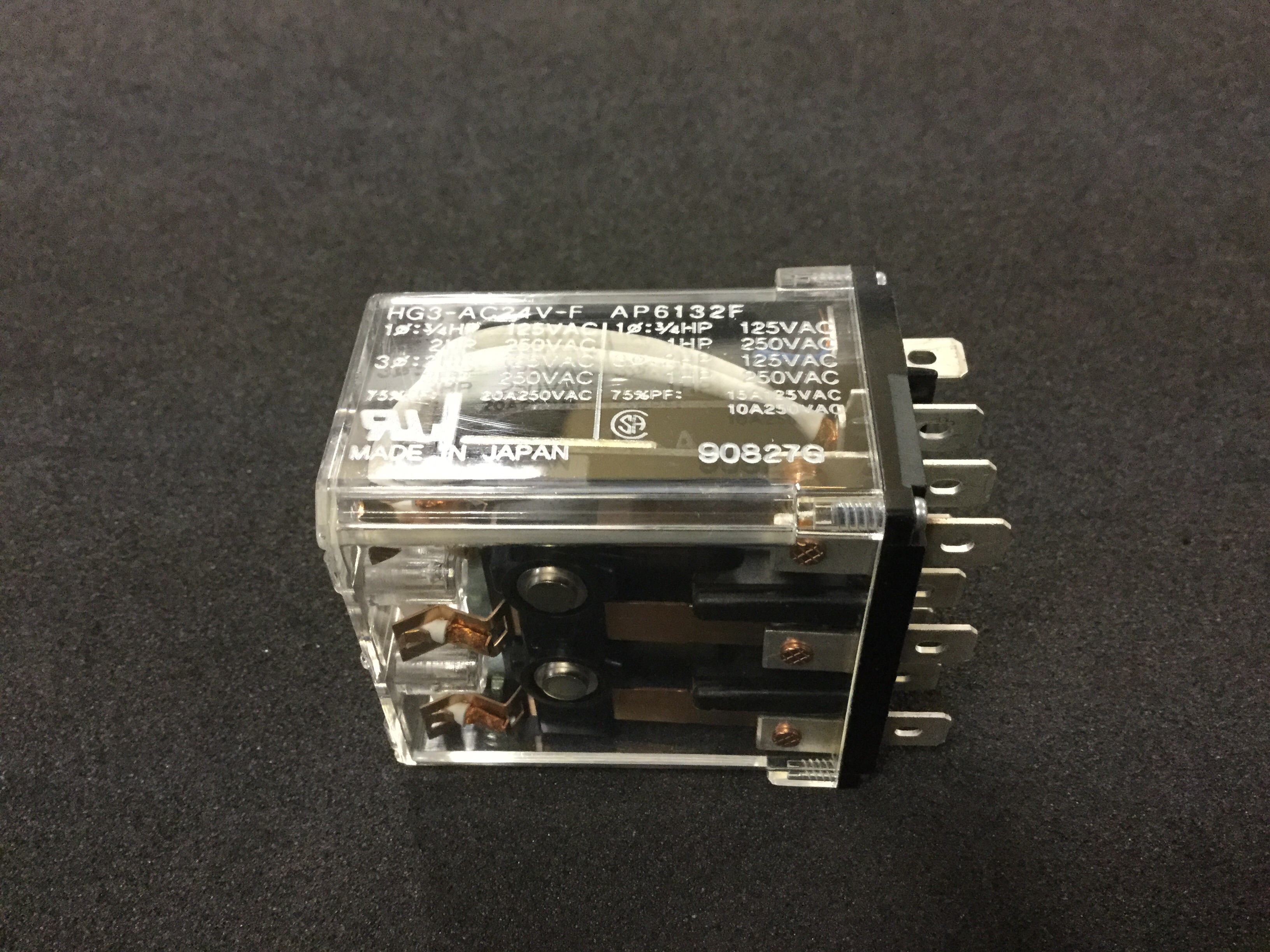

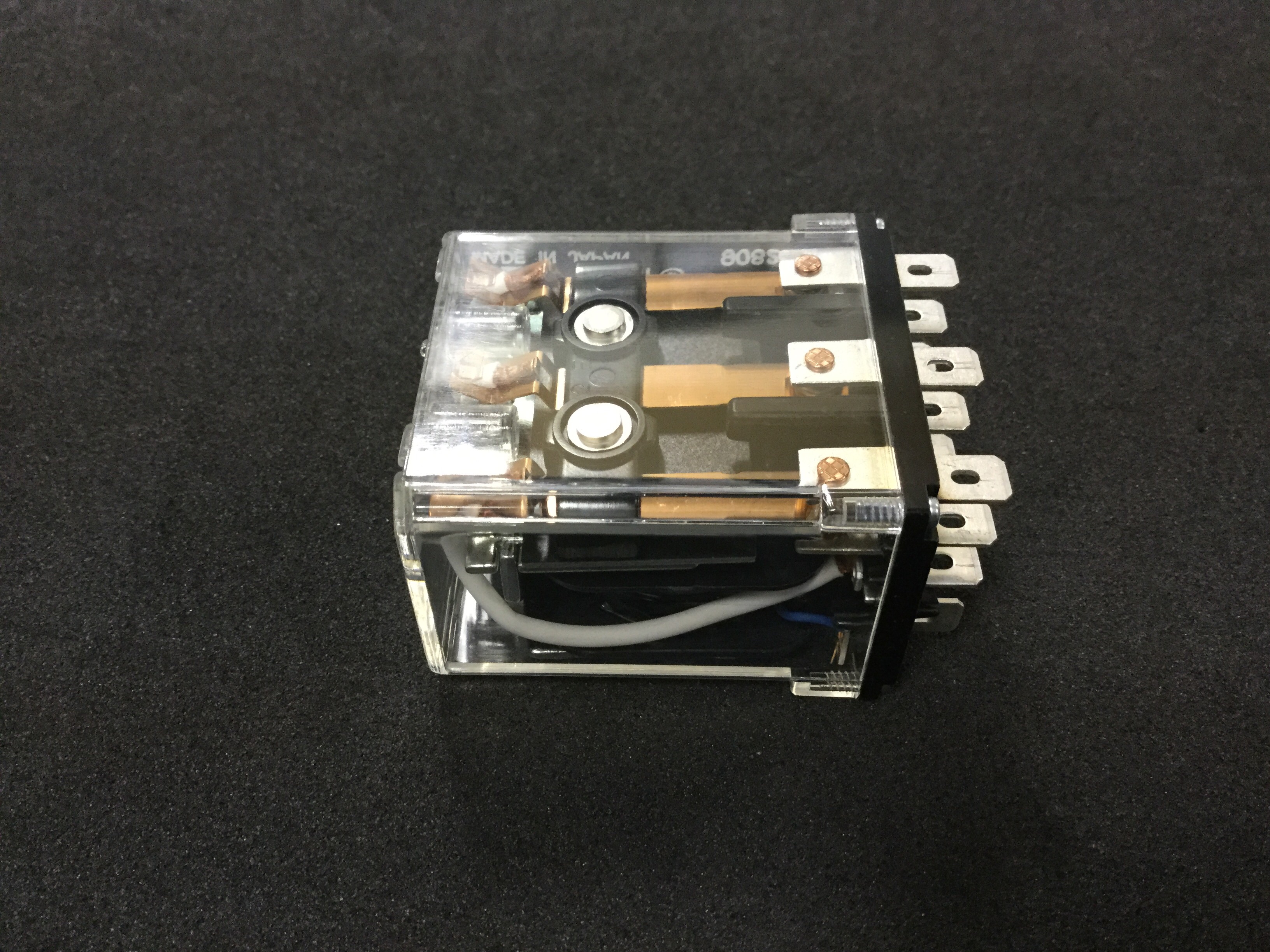

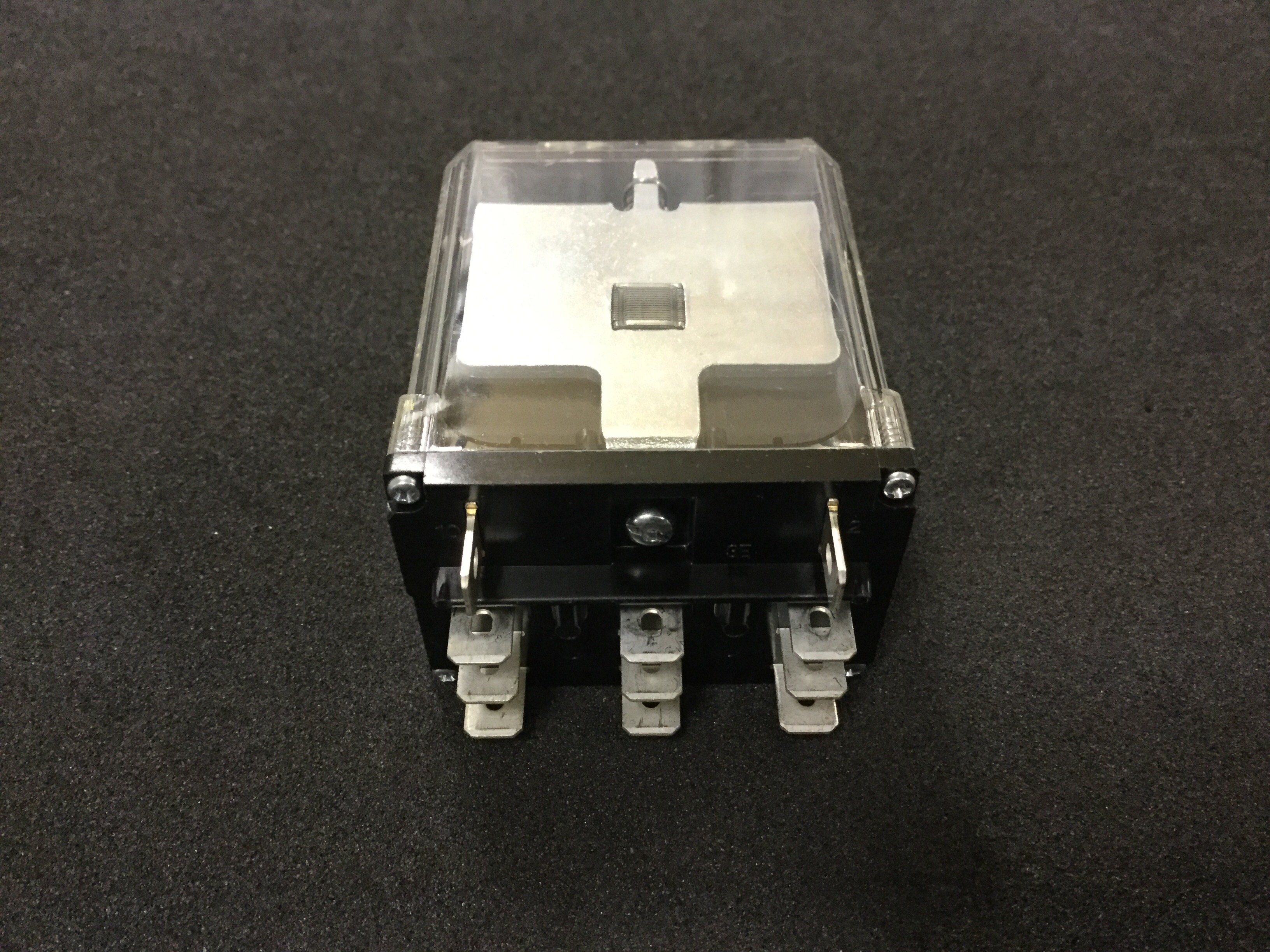

HG3-AC24V データシート

Name: HG3-AC24V
Brand: PANASONIC
SKU: 180029909-0000-0000-0000

HG3-AC24V - PANASONIC の商品詳細ページです。

２営業日以内に回答いたします

HG3-AC24V の詳細情報

型番	HG3-AC24V
メーカー	PANASONIC
データシート
Additional Feature	COIL OPERATE VOLTAGE(AC): 19.2 V, COIL RELEASE VOLTAGE(AC): 7.2 V
Body Breadth	36 inch
Body Height	56 mm
Body Length or Diameter	50 mm
Coil Current(AC)-Max	0.216 A
Coil Power	5200 mW
Coil Voltage(AC)-Max	24 V
Coil/Input Supply Type	AC
Contact AC Max Rating R Load	20A@250VAC
Contact Current(AC)-Max	20 A
Contact Voltage(AC)-Max	250 V
Contact/Output Supply Type	AC
Electrical Life	100000 Cycle(s)
Manufacturer Series	HG
Mounting Feature	DIN-RAIL MOUNT
Operate Time	40 ms
Operating Temperature-Max	40 Cel
Operating Temperature-Min	-50 Cel
Packing Method	BOX
Physical Dimension	50mm x 36mm x 56mm
Reference Standard	CSA; UL
Relay Action	MOMENTARY
Relay Function	3PDT
Relay Type	POWER/SIGNAL RELAY
Release Time	40 ms
Termination Type	SCREW
