HG2-AC100V-F データシート

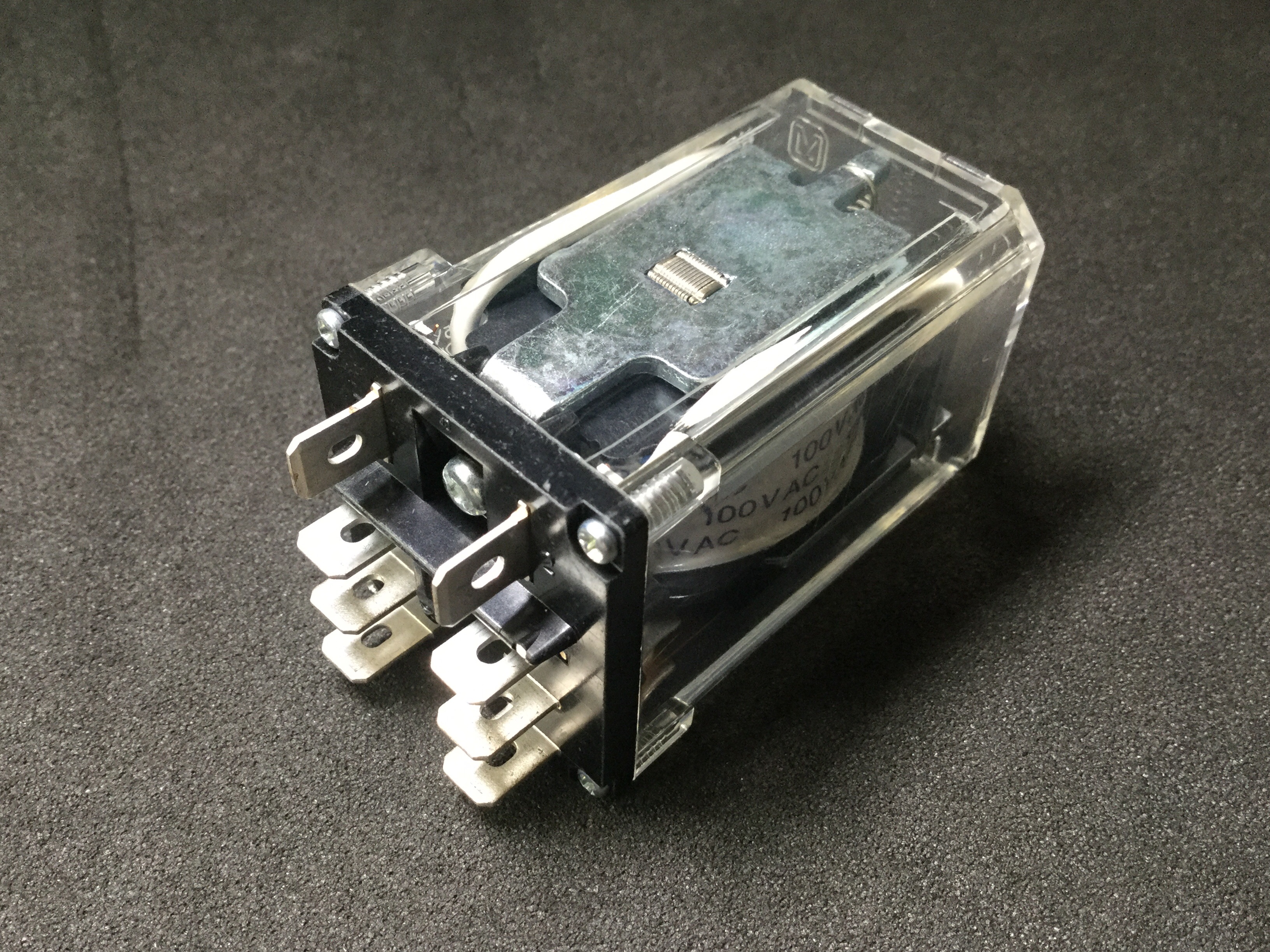

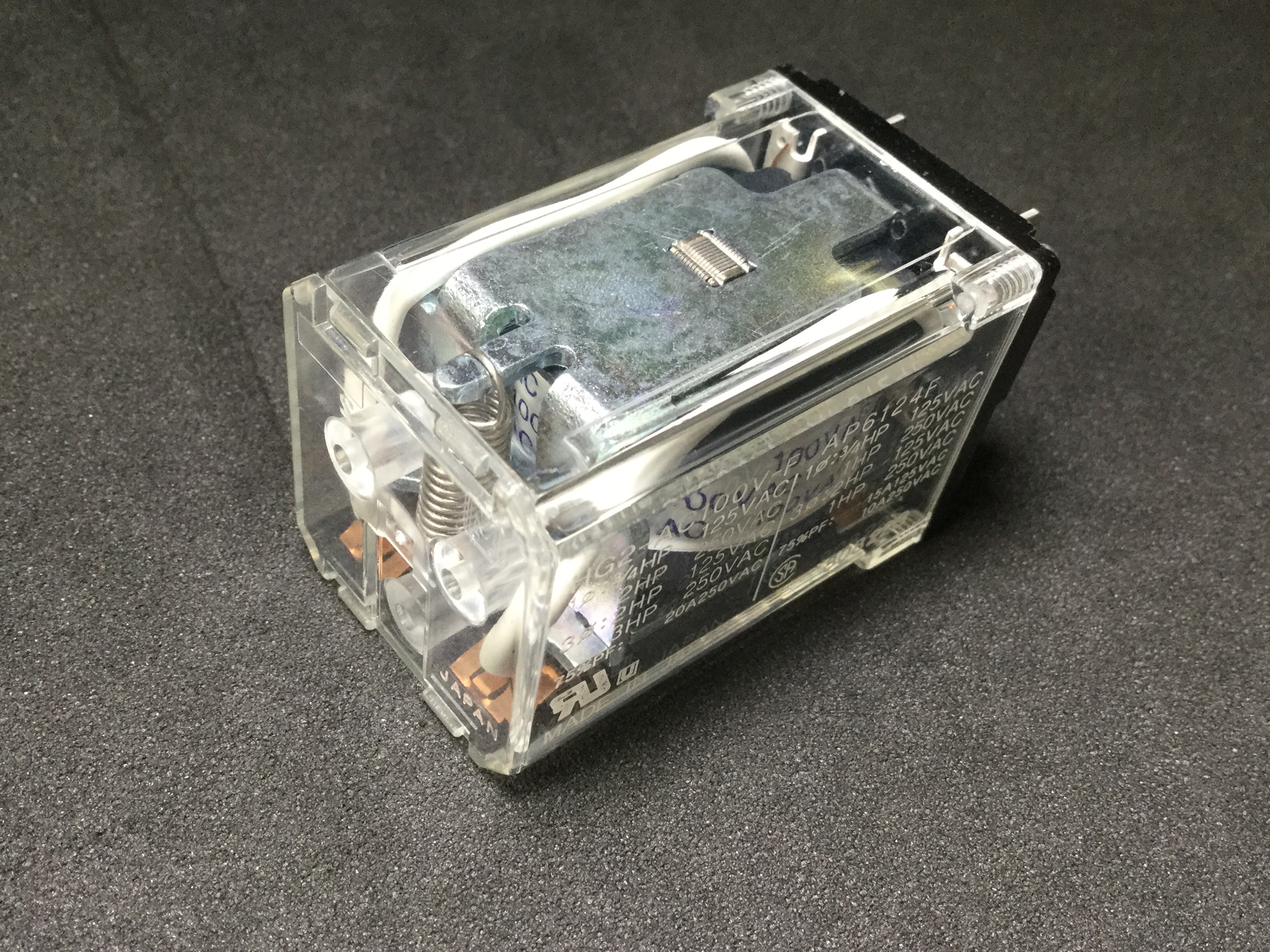

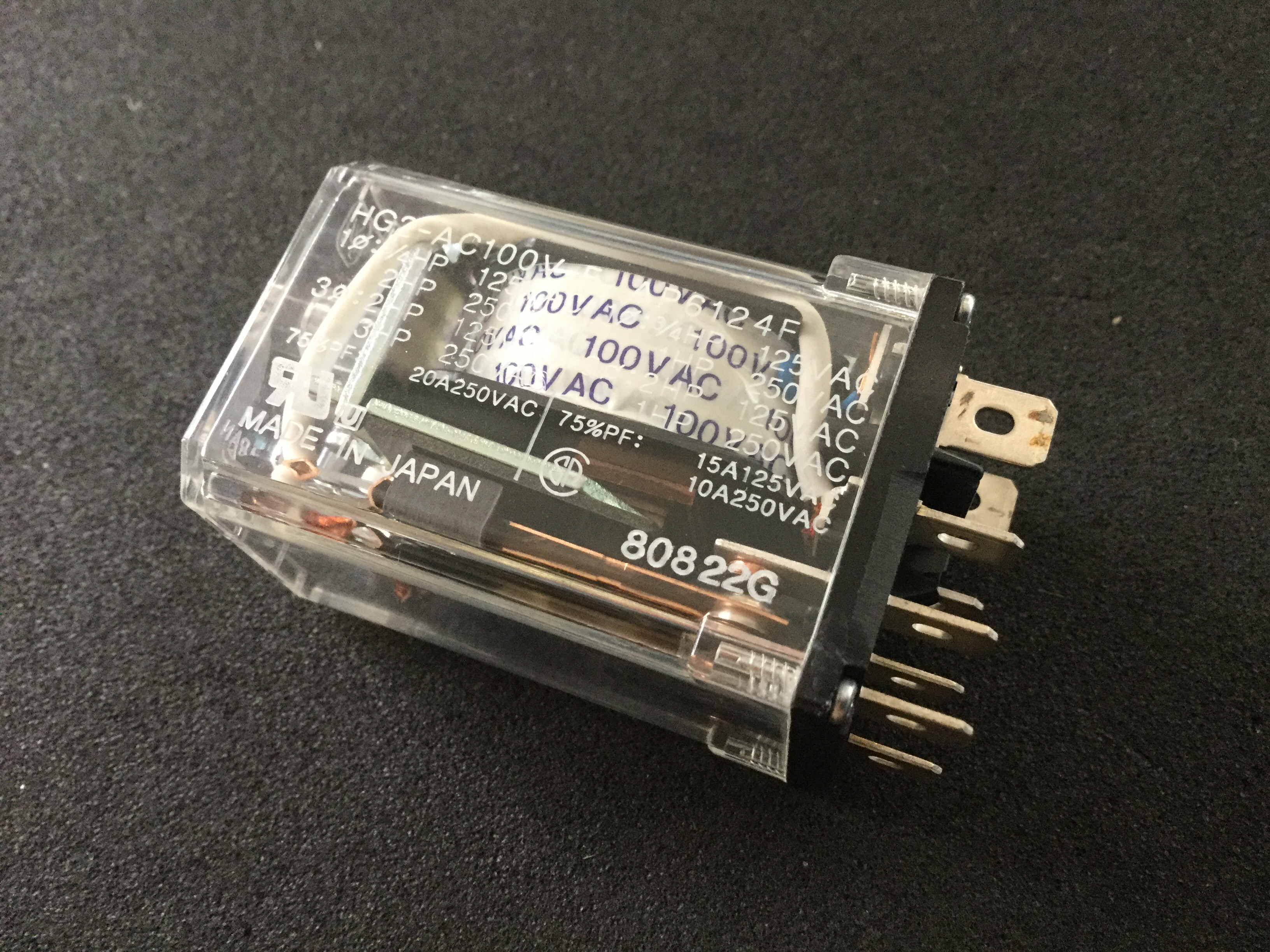

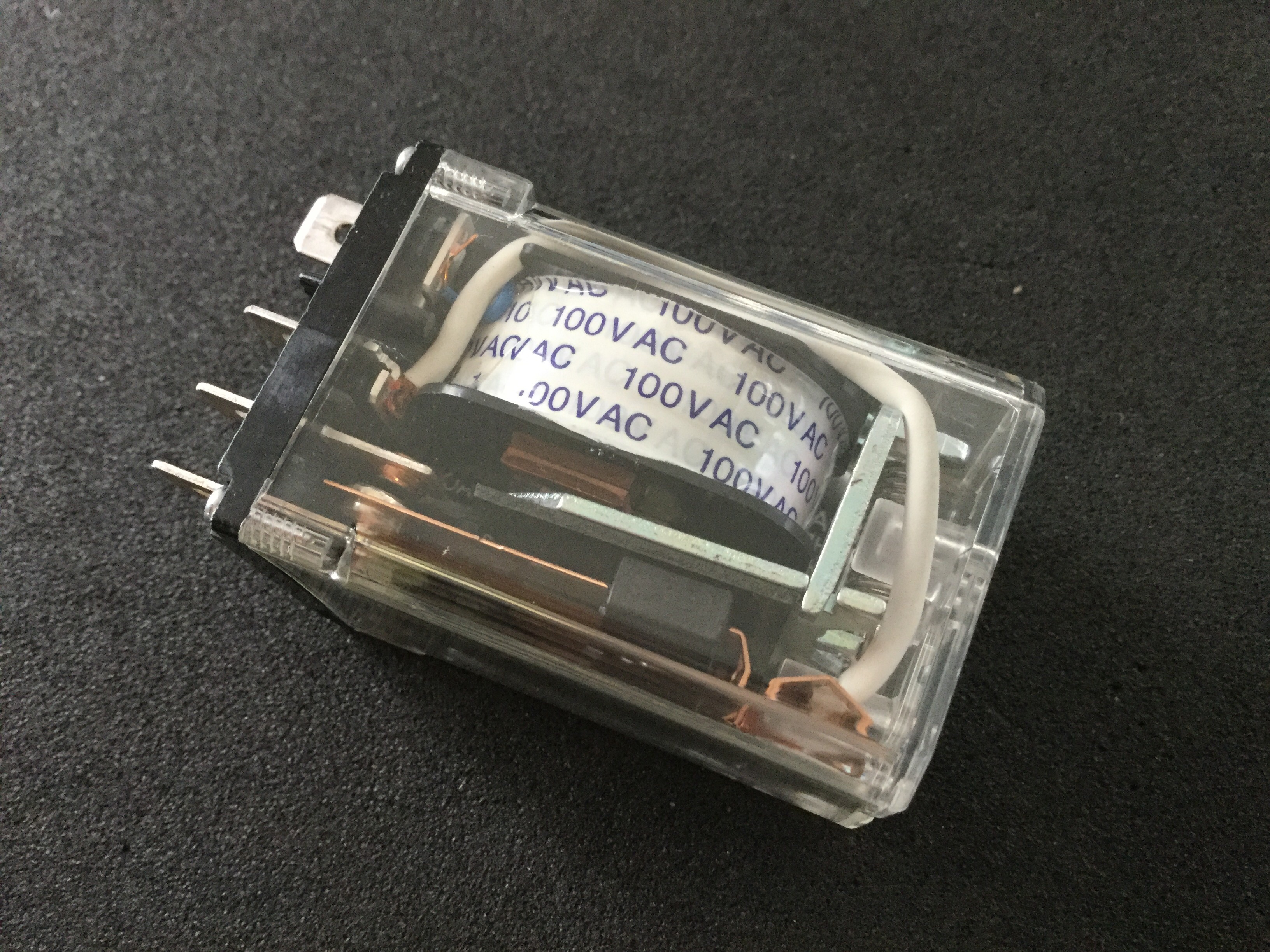

Name: HG2-AC100V-F
Brand: PANASONIC
SKU: 180150159-0000-0000-0000

HG2-AC100V-F - PANASONIC の商品詳細ページです。

２営業日以内に回答いたします

HG2-AC100V-F の詳細情報

型番	HG2-AC100V-F
メーカー	PANASONIC
データシート
Additional Feature	COIL OPERATE VOLTAGE(AC): 80 V, COIL RELEASE VOLTAGE(AC): 30 V
Body Breadth	34 inch
Body Height	60 mm
Body Length or Diameter	36 mm
Coil Current(AC)-Max	0.042 A
Coil Power	4200 mW
Coil Voltage(AC)-Max	100 V
Coil/Input Supply Type	AC
Contact AC Max Rating R Load	20A@250VAC
Contact Current(AC)-Max	20 A
Contact Voltage(AC)-Max	250 V
Contact/Output Supply Type	AC
Electrical Life	100000 Cycle(s)
Manufacturer Series	HG
Mounting Feature	SOCKET MOUNT
Operate Time	30 ms
Operating Temperature-Max	40 Cel
Operating Temperature-Min	-50 Cel
Packing Method	BOX
Physical Dimension	36mm x 34mm x 60mm
Reference Standard	CSA; UL
Relay Action	MOMENTARY
Relay Function	DPDT
Relay Type	POWER/SIGNAL RELAY
Release Time	30 ms
Termination Type	SNAP-ON
