HE1AN-AC200V データシート

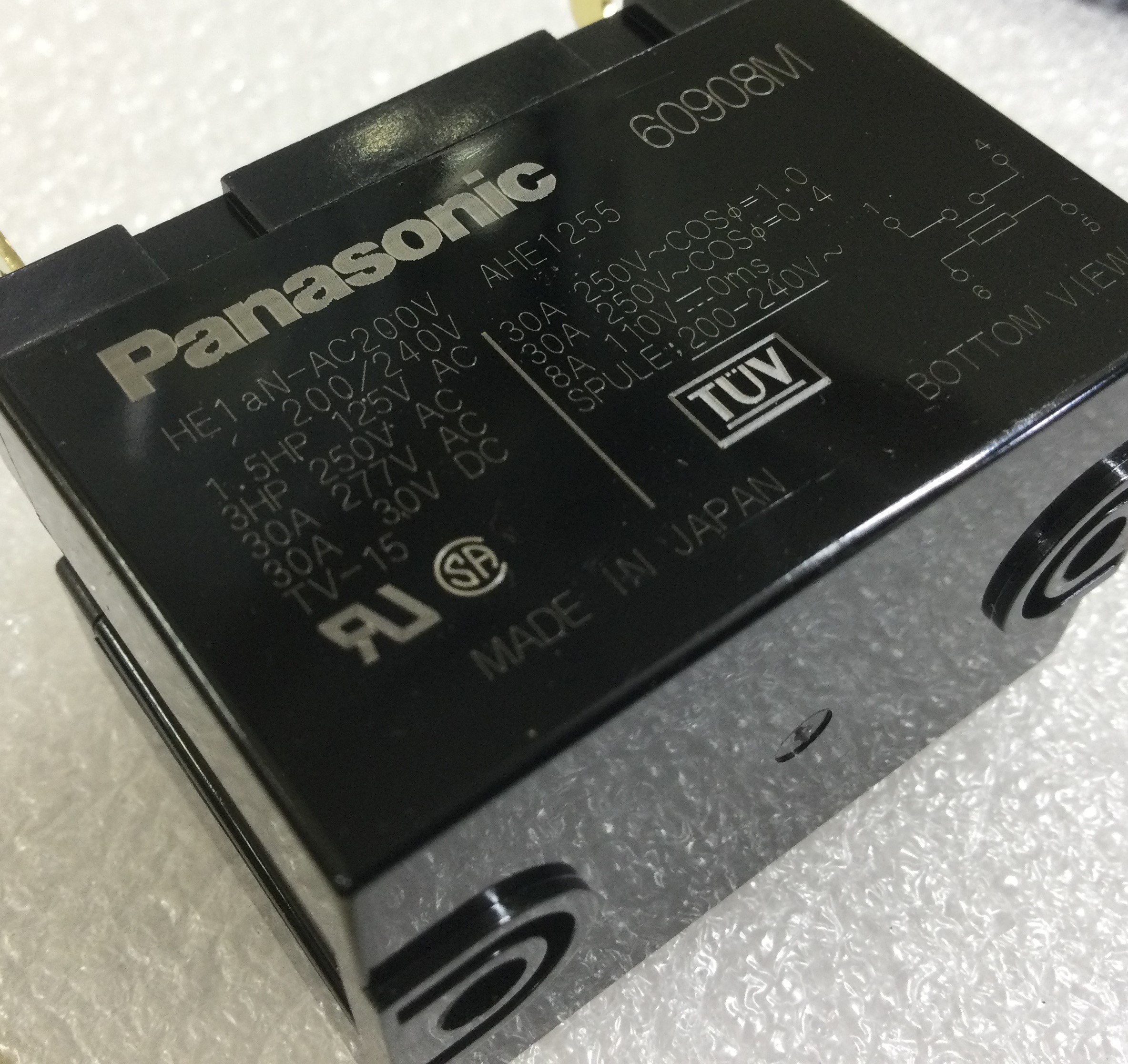

Name: HE1AN-AC200V
Brand: PANASONIC
SKU: 400055153-0000-0000-0000

HE1AN-AC200V - PANASONIC の商品詳細ページです。

２営業日以内に回答いたします

HE1AN-AC200V の詳細情報

型番	HE1AN-AC200V
メーカー	PANASONIC
データシート
Additional Feature	COIL OPERATE VOLTAGE(AC): 140 V, COIL RELEASE VOLTAGE(AC): 30 V
Body Breadth	33 inch
Body Height	35.8 mm
Body Length or Diameter	50 mm
Coil Current(AC)-Max	0.009 A
Coil Power	1800 mW
Coil Voltage(AC)-Max	200 V
Coil/Input Supply Type	AC
Contact AC Max Rating R Load	30A@277VAC
Contact Current(AC)-Max	30 A
Contact Current(DC)-Max	30 A
Contact DC Max Rating R Load	30A@30VDC
Contact Voltage(AC)-Max	277 V
Contact Voltage(DC)-Max	30 V
Contact/Output Supply Type	AC/DC
Electrical Life	100000 Cycle(s)
Manufacturer Series	HE
Mounting Feature	PANEL MOUNT
Operate Time	30 ms
Operating Temperature-Max	55 Cel
Operating Temperature-Min	-50 Cel
Packing Method	BOX
Physical Dimension	50mm x 33mm x 35.8mm
Reference Standard	CSA; TUV; UL; VDE
Relay Action	MOMENTARY
Relay Function	SPST
Relay Type	POWER/SIGNAL RELAY
Release Time	30 ms
Termination Type	QUICK CONNECT
