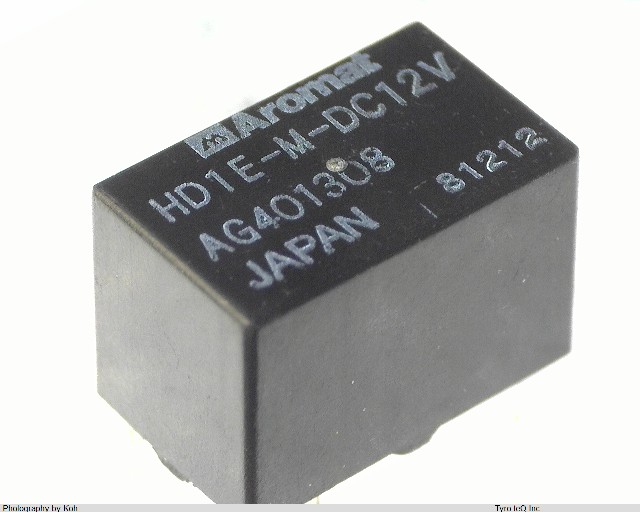

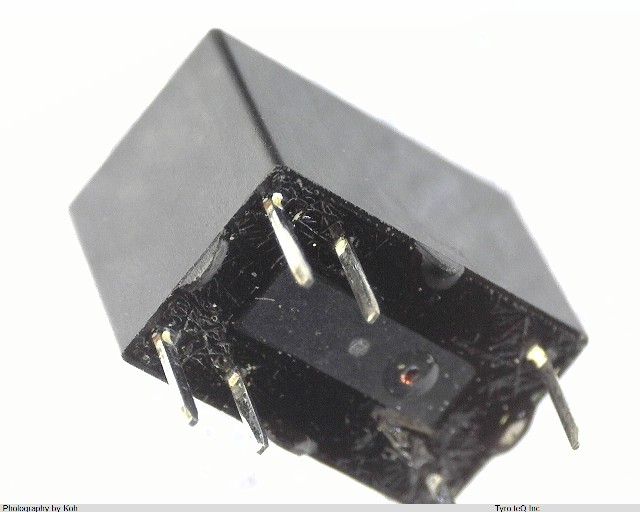

HD1E-M-DC12V データシート

Name: HD1E-M-DC12V
Brand: PANASONIC
SKU: 180025923-0000-0000-0000

HD1E-M-DC12V - PANASONIC の商品詳細ページです。

２営業日以内に回答いたします

HD1E-M-DC12V の詳細情報

型番	HD1E-M-DC12V
メーカー	PANASONIC
データシート
Body Breadth	7.4 inch
Body Height	8.3 mm
Body Length or Diameter	12 mm
Coil Operate Voltage(DC)	9.6 V
Coil Power	280 mW
Coil Release Voltage(DC)	1.2 V
Coil Resistance	515 ohm
Coil Voltage(DC)-Max	13.2 V
Coil Voltage-Nom	12 V
Coil/Input Supply Type	DC
Contact AC Max Power Rating R Load	50VA@125VAC
Contact AC Max Rating R Load	1A@125VAC
Contact Current(AC)-Max	1 A
Contact Current(DC)-Max	1 A
Contact DC Max Power Rating R Load	30W@60VDC
Contact DC Max Rating R Load	1A@30VDC
Contact Resistance	100 mohm
Contact Voltage(AC)-Max	125 V
Contact Voltage(DC)-Max	30 V
Contact/Output Supply Type	AC/DC
Dielectric Strength Between Coil and Contacts	500 Vrms
Dielectric Strength Between Open Contacts	500 Vrms
Electrical Life	100000 Cycle(s)
Input Switching Control Type	Random
Insulation Resistance	100000000 ohm
Number of Terminals	6
Operate Time	10 ms
Operating Temperature-Max	60 Cel
Operating Temperature-Min	-25 Cel
PCB Hole Count	6
Physical Dimension	12mm x 7.4mm x 8.3mm
Reference Standard	CSA; UL
Relay Action	LATCHED
Relay Form	1 FORM C
Relay Function	SPDT
Release Time	5 ms
Terminal Length	0.004 inch
Termination Type	SOLDER
Weight	1.7 g
