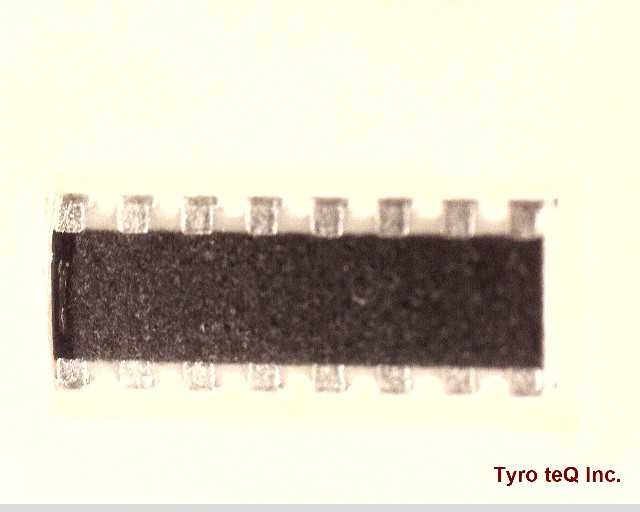

EXB-2HV390JV データシート

Name: EXB-2HV390JV
Brand: PANASONIC
SKU: 150054441-0000-0000-0000

EXB-2HV390JV - PANASONIC の商品詳細ページです。

２営業日以内に回答いたします

EXB-2HV390JV の詳細情報

型番	EXB-2HV390JV
メーカー	PANASONIC
データシート
Additional Feature	IEC60115-9
Construction	Rectangular
Element Power Dissipation	0.063 W
First Element Resistance	39 ohm
JESD-609 Code	e3
Mounting Feature	SURFACE MOUNT
Network Type	ISOLATED
Number of Elements	1
Number of Functions	8
Number of Terminals	16
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-55 Cel
Package Height	0.45 mm
Package Length	3.8 mm
Package Shape	RECTANGULAR PACKAGE
Package Style	SMT Meter
Package Width	1.6 mm
Packing Method	TR, PUNCHED, 7 INCH
Rated Power Dissipation (P)	0.25 W
Rated Temperature	70 Cel
Reference Standard	AEC-Q200
Resistance	39 ohm
Resistor Type	ARRAY/NETWORK RESISTOR
Second/Last Element Resistance	39 ohm
Size Code	0615
Sub Category	ARRAY/NETWORK RESISTOR
Technology	METAL GLAZE/THICK FILM
Temperature Coefficient	200 ppm/Cel
Terminal Finish	MATTE TIN OVER NICKEL
Terminal Shape	WRAPAROUND
Tolerance	5 %
Working Voltage	25 V
