ELL-CTV180M データシート

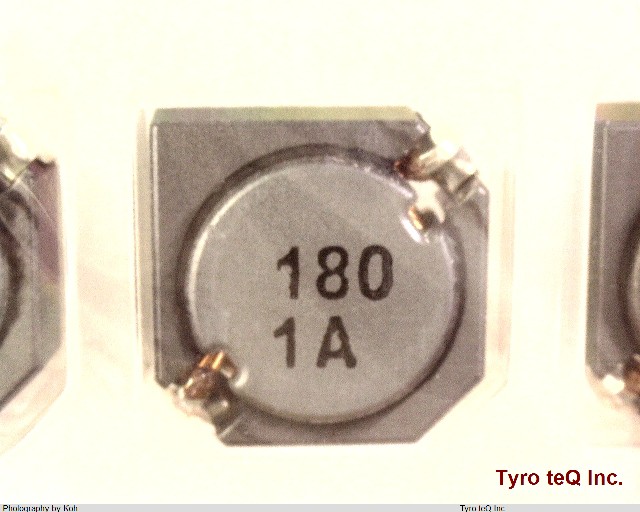

Name: ELL-CTV180M
Brand: PANASONIC
SKU: 150034865-0000-0000-0000

ELL-CTV180M - PANASONIC の商品詳細ページです。

２営業日以内に回答いたします

ELL-CTV180M の詳細情報

型番	ELL-CTV180M
メーカー	PANASONIC
データシート
Case/Size Code	4747
Construction	Rectangular
Core Material	Ferrite
DC Resistance	0.03 ohm
Inductance-Nom (L)	18 uH
Inductor Application	POWER INDUCTOR
Inductor Type	GENERAL PURPOSE INDUCTOR
JESD-609 Code	e3
Number of Functions	1
Number of Terminals	2
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-40 Cel
Package Height	4.2 mm
Package Length	12 mm
Package Style	SMT Meter
Package Width	12 mm
Packing Method	TR, Embossed
Rated Current-Max	3 A
Shape/Size Description	RECTANGULAR PACKAGE
Shielded	YES
Special Feature	DC RESISTANCE IS MEASURED AT 20% TOLERANCE
Surface Mount	YES
Terminal Finish	Tin (Sn)
Terminal Placement	DUAL ENDED
Terminal Shape	WRAPAROUND
Test Frequency	0.1 MHz
Tolerance	20 %
