EEAFC1V120 データシート

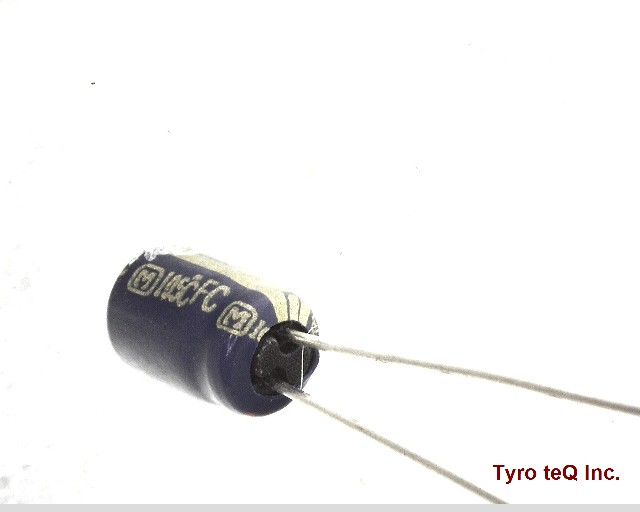

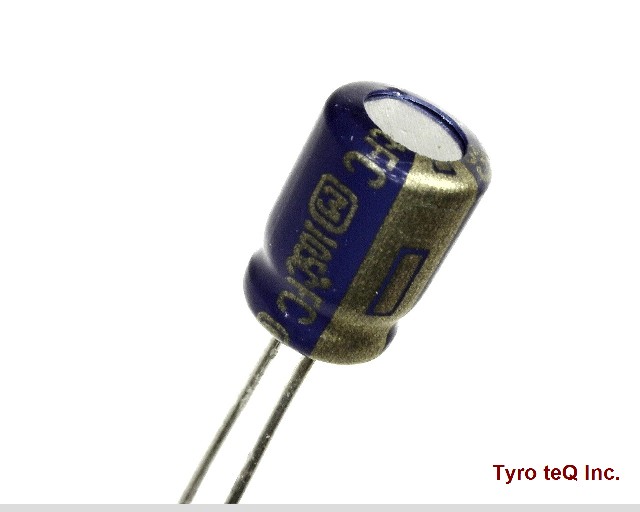

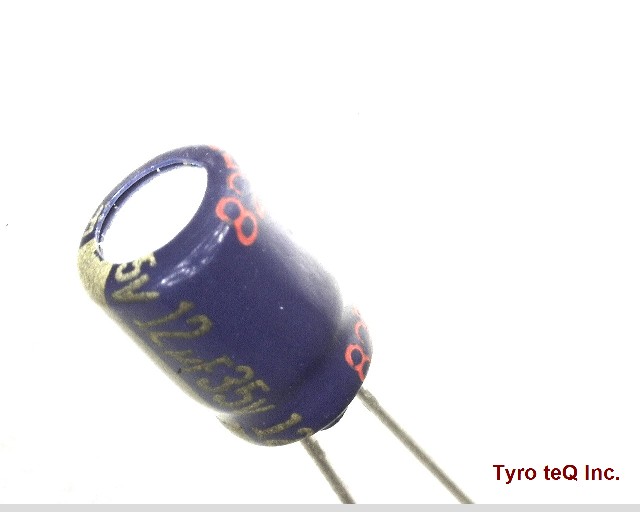

Name: EEAFC1V120
Brand: PANASONIC
SKU: 150003214-0000-0000-0000

EEAFC1V120 - PANASONIC の商品詳細ページです。

No Image

２営業日以内に回答いたします

EEAFC1V120 の詳細情報

型番	EEAFC1V120
メーカー	PANASONIC
データシート
Capacitance	12 uF
Capacitor Type	ALUMINUM ELECTROLYTIC CAPACITOR
Diameter	5 mm
Dielectric Material	ALUMINUM (WET)
JESD-609 Code	e3
Leakage Current	0.0042 mA
Length	7 mm
Mounting Feature	THROUGH HOLE MOUNT
Negative Tolerance	20 %
Number of Terminals	2
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-55 Cel
Package Shape	CYLINDRICAL PACKAGE
Package Style	Radial Meter
Packing Method	AMMO PACK
Polarity	POLARIZED
Positive Tolerance	20 %
Rated DC Voltage (URdc)	35 V
Reference Standard	AEC-Q200
Ripple Current	78 mA
Tan Delta	0.12
Terminal Finish	TIN
Terminal Pitch	2 mm
Terminal Shape	WIRE
