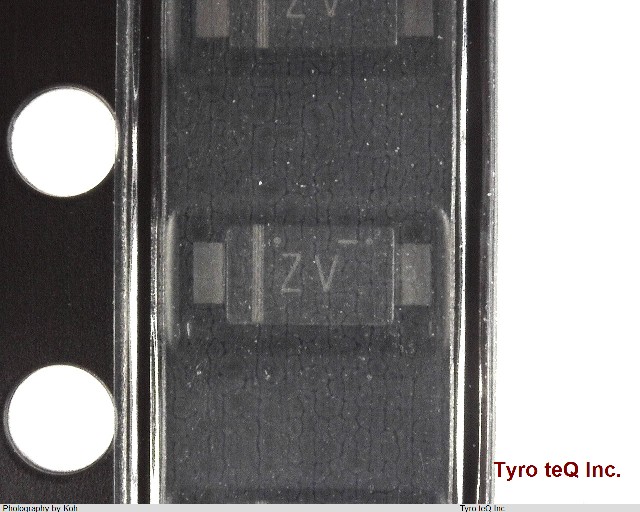

DY2W27Z00L データシート

Name: DY2W27Z00L
Brand: PANASONIC
SKU: 140193472-0000-0000-0000

DY2W27Z00L - PANASONIC の商品詳細ページです。

２営業日以内に回答いたします

DY2W27Z00L の詳細情報

型番	DY2W27Z00L
メーカー	PANASONIC
データシート
Additional Feature	LOW CAPACITANCE
Breakdown Voltage-Max	34.7 V
Breakdown Voltage-Min	31.4 V
Breakdown Voltage-Nom	33 V
Clamping Voltage-Max	60 V
Configuration	SINGLE
Diode Element Material	SILICON
Diode Type	TRANS VOLTAGE SUPPRESSOR DIODE
Forward Voltage-Max (VF)	1.2 V
JESD-30 Code	R-PDSO-F2
Moisture Sensitivity Level	1
Non-rep Peak Rev Power Dis-Max	500 W
Number of Elements	1
Number of Terminals	2
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Polarity	UNIDIRECTIONAL
Power Dissipation-Max	1 W
Reference Standard	IEC-61000-4-2,4-5
Rep Pk Reverse Voltage-Max	27 V
Reverse Current-Max	1 uA
Reverse Test Voltage	27 V
Surface Mount	YES
Technology	AVALANCHE
Terminal Form	FLAT
Terminal Position	DUAL
