DSP1-DC24V-F データシート

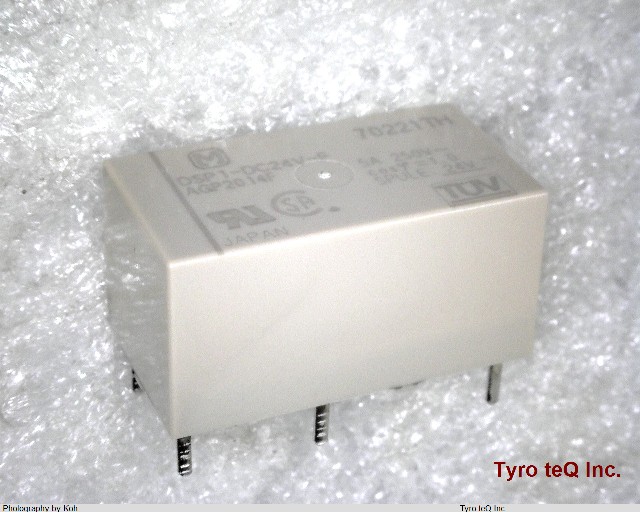

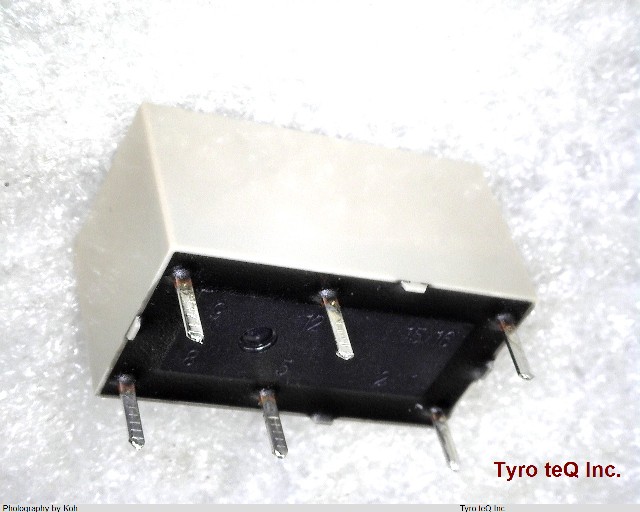

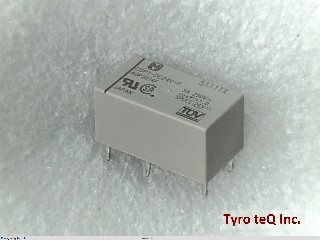

Name: DSP1-DC24V-F
Brand: PANASONIC
SKU: 400057855-0000-0000-0000

DSP1-DC24V-F - PANASONIC の商品詳細ページです。

２営業日以内に回答いたします

DSP1-DC24V-F の詳細情報

型番	DSP1-DC24V-F
メーカー	PANASONIC
データシート
Additional Feature	POLARIZED
Body Breadth	11 inch
Body Height	10.5 mm
Body Length or Diameter	20.2 mm
Coil Current(DC)-Max	0.012 A
Coil Operate Voltage(DC)	19.2 V
Coil Power	300 mW
Coil Release Voltage(DC)	2.4 V
Coil Resistance	1920 ohm
Coil Voltage(DC)-Max	31.2 V
Coil Voltage-Nom	24 V
Coil/Input Supply Type	DC
Contact AC Max Power Rating R Load	1250VA@250VAC
Contact AC Max Rating R Load	5A@250VAC
Contact Current(AC)-Max	5 A
Contact Current(DC)-Max	5 A
Contact DC Max Power Rating R Load	150W@30VDC
Contact DC Max Rating R Load	5A@125VDC
Contact Resistance	30 mohm
Contact Voltage(AC)-Max	250 V
Contact Voltage(DC)-Max	125 V
Contact/Output Supply Type	AC/DC
Electrical Life	100000 Cycle(s)
End Contact Material	Silver Tin Oxide
Input Switching Control Type	Random
Insulation Resistance	1000000000 ohm
Mounting Feature	THROUGH HOLE-STRAIGHT MOUNT
Number of Terminals	6
Operate Time	10 ms
Operating Temperature-Max	65 Cel
Operating Temperature-Min	-40 Cel
PCB Hole Count	4
Packing Method	BOX
Physical Dimension	20.2mm x 11mm x 10.5mm
Reference Standard	CSA; TUV; UL
Relay Action	MOMENTARY
Relay Form	1 FORM A,B
Relay Function	DPST
Relay Type	POWER/SIGNAL RELAY
Release Time	5 ms
Sealing	WATER PROOF
Terminal Length	0.0035 inch
Termination Type	SOLDER
Weight	4.5 g
