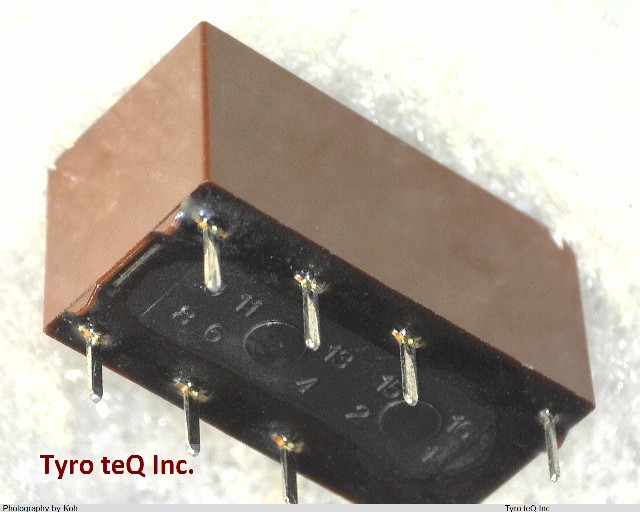

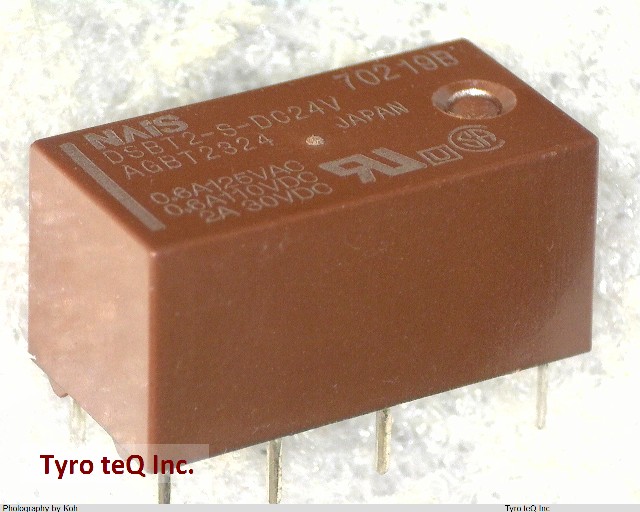

DSBT2-S-DC24V データシート

Name: DSBT2-S-DC24V
Brand: PANASONIC
SKU: 140071020-0000-0000-0000

DSBT2-S-DC24V - PANASONIC の商品詳細ページです。

２営業日以内に回答いたします

DSBT2-S-DC24V の詳細情報

型番	DSBT2-S-DC24V
メーカー	PANASONIC
データシート
Body Breadth	10.65 inch
Body Height	10.5 mm
Body Length or Diameter	20.65 mm
Coil Current(DC)-Max	0.015 A
Coil Operate Voltage(DC)	18 V
Coil Power	360 mW
Coil Release Voltage(DC)	2.4 V
Coil Resistance	1600 ohm
Coil Voltage(DC)-Max	24 V
Coil Voltage-Nom	24 V
Coil/Input Supply Type	DC
Contact AC Max Power Rating R Load	125VA@250VAC
Contact AC Max Rating R Load	2A@250VAC
Contact Current(AC)-Max	2 A
Contact Current(DC)-Max	2 A
Contact DC Max Power Rating R Load	60W@220VDC
Contact DC Max Rating R Load	2A@220VDC
Contact Resistance	50 mohm
Contact Voltage(AC)-Max	250 V
Contact Voltage(DC)-Max	220 V
Contact/Output Supply Type	AC/DC
Dielectric Strength Between Coil and Contacts	4000 Vrms
Dielectric Strength Between Open Contacts	750 Vrms
Electrical Life	200000 Cycle(s)
End Contact Material	Silver
End Contact Plating	GOLD
Input Switching Control Type	Random
Insulation Resistance	100000000 ohm
Mounting Feature	THROUGH HOLE-STRAIGHT MOUNT
Number of Terminals	8
Operate Time	3 ms
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-40 Cel
PCB Hole Count	8
Packing Method	BOX; TUBE
Physical Dimension	20.65mm x 10.65mm x 10.5mm
Reference Standard	BSI; CSA; UL
Relay Action	MOMENTARY
Relay Form	2 FORM C
Relay Function	DPDT
Relay Type	POWER/SIGNAL RELAY
Release Time	2 ms
Terminal Length	0.0034 inch
Termination Type	SOLDER
Weight	4 g
