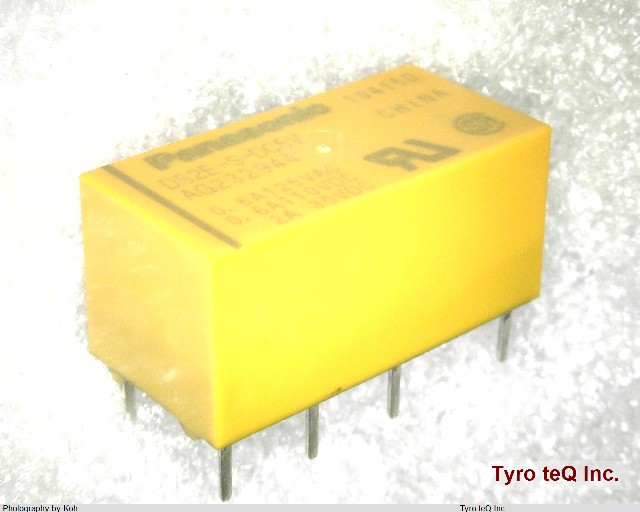

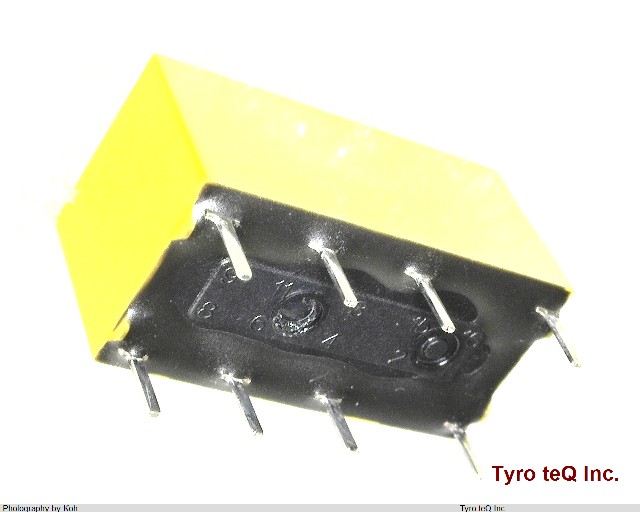

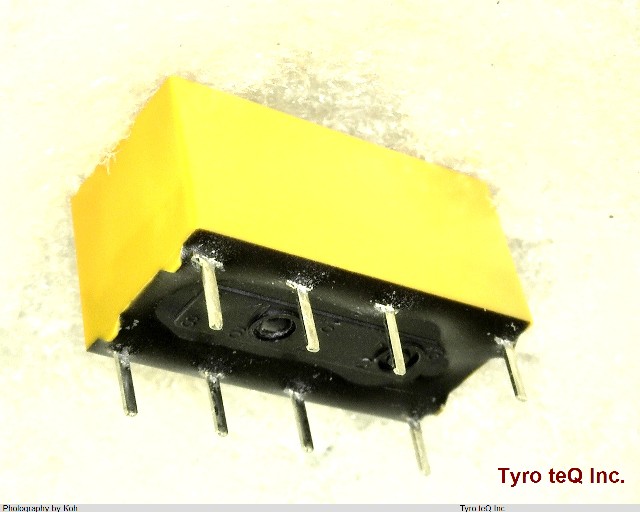

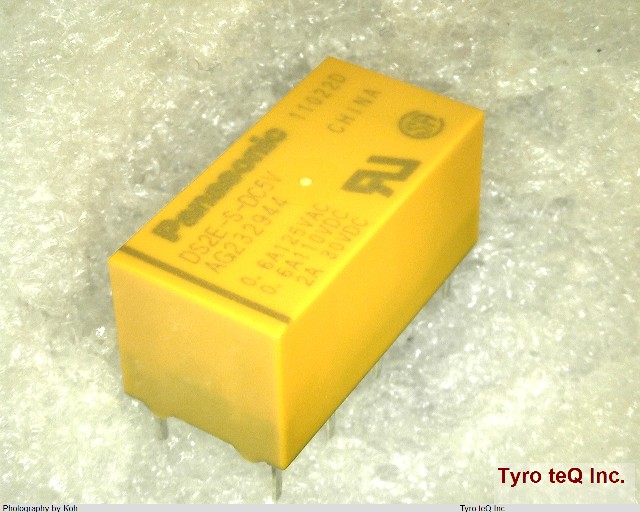

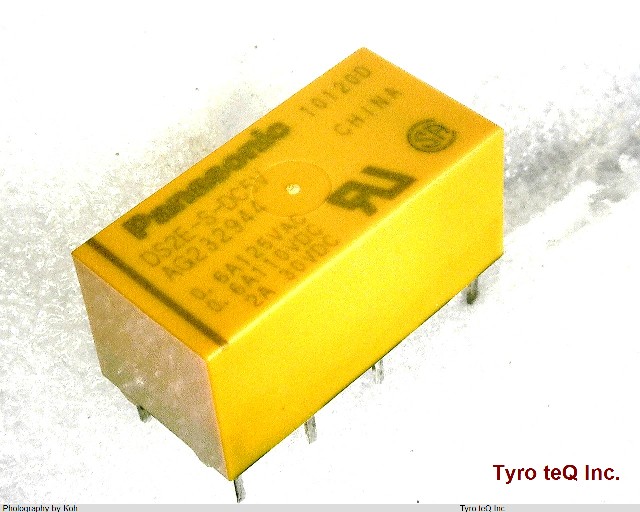

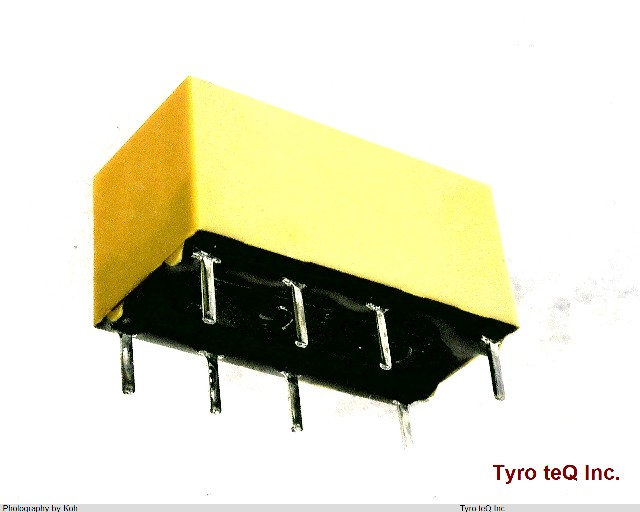

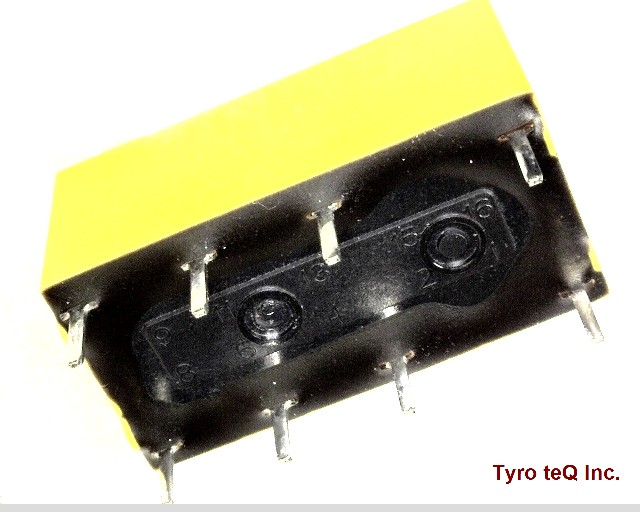

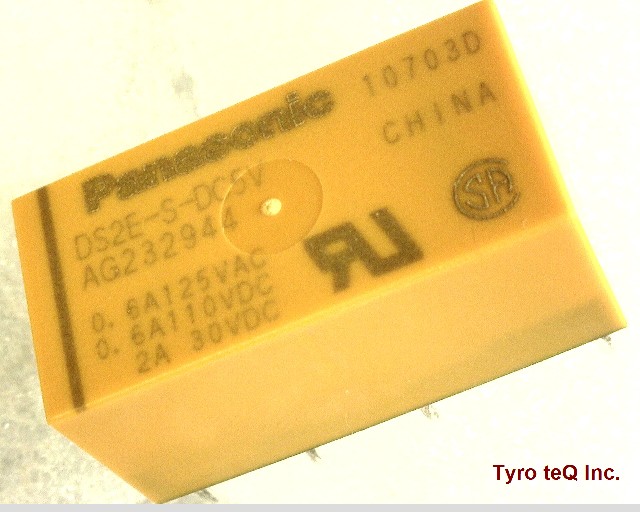

DS2E-S-DC5V

Name: DS2E-S-DC5V
Brand: PANASONIC
SKU: 140000957-0000-0000-0000

DS2E-S-DC5V - PANASONIC の商品詳細ページです。

２営業日以内に回答いたします

DS2E-S-DC5V の詳細情報

型番	DS2E-S-DC5V
メーカー	PANASONIC
Body Breadth	9.9 inch
Body Height	9.9 mm
Body Length or Diameter	20 mm
Coil Current(DC)-Max	0.04 A
Coil Operate Voltage(DC)	3.5 V
Coil Power	200 mW
Coil Release Voltage(DC)	0.5 V
Coil Resistance	125 ohm
Coil Voltage(DC)-Max	5 V
Coil Voltage-Nom	5 V
Coil/Input Supply Type	DC
Contact AC Max Power Rating R Load	125VA@250VAC
Contact AC Max Rating R Load	2A@250VAC
Contact Current(AC)-Max	2 A
Contact Current(DC)-Max	2 A
Contact DC Max Power Rating R Load	60W@220VDC
Contact DC Max Rating R Load	2A@30VDC
Contact Resistance	50 mohm
Contact Voltage(AC)-Max	250 V
Contact Voltage(DC)-Max	220 V
Contact/Output Supply Type	AC/DC
Dielectric Strength Between Coil and Contacts	1500 Vrms
Dielectric Strength Between Open Contacts	1000 Vrms
Electrical Life	500000 Cycle(s)
End Contact Material	Silver
End Contact Plating	GOLD
Input Switching Control Type	Random
Insulation Resistance	100000000 ohm
Manufacturer Series	DS

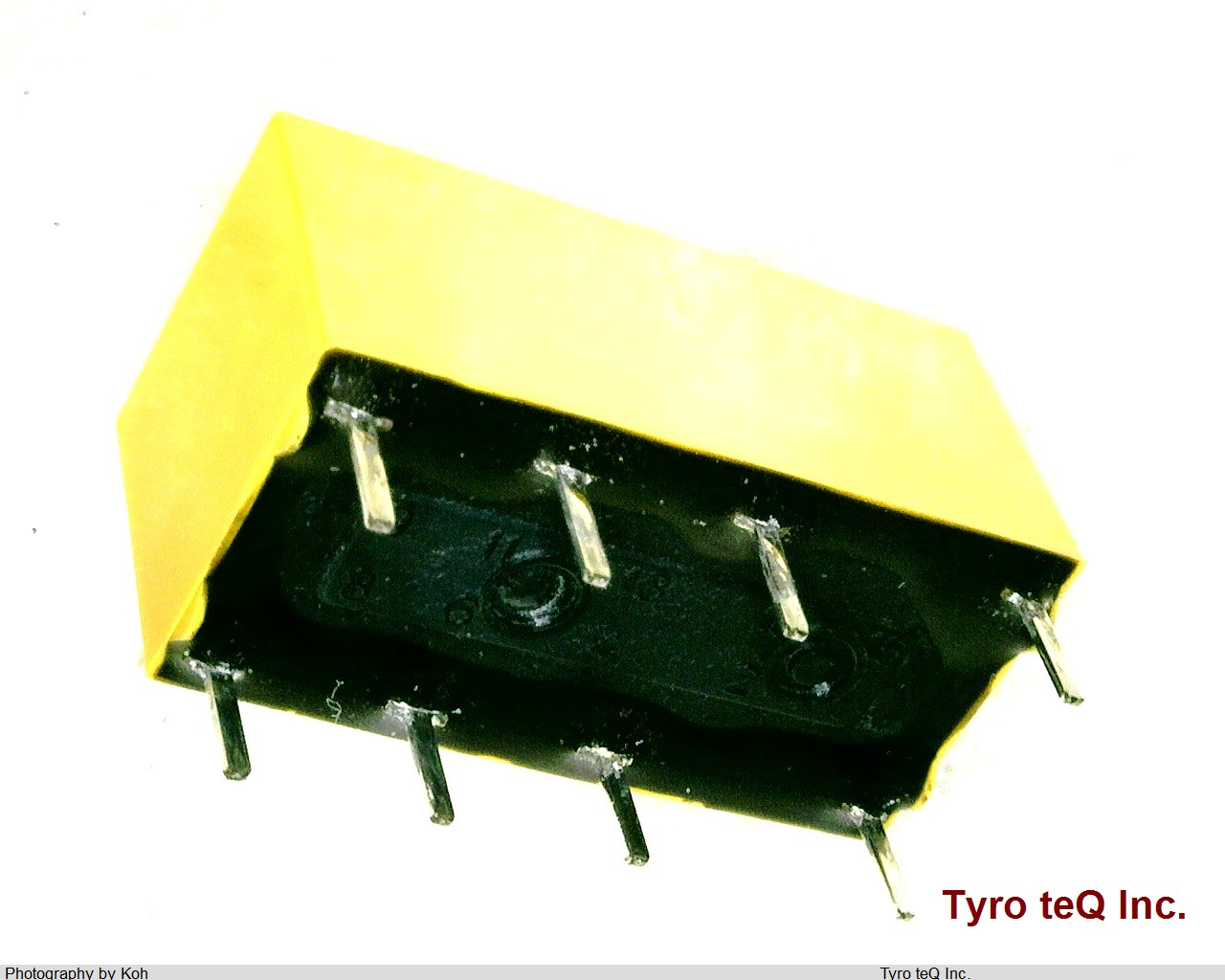

Mounting Feature	THROUGH HOLE-STRAIGHT MOUNT
Number of Terminals	8
Operate Time	3 ms
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-40 Cel
PCB Hole Count	8

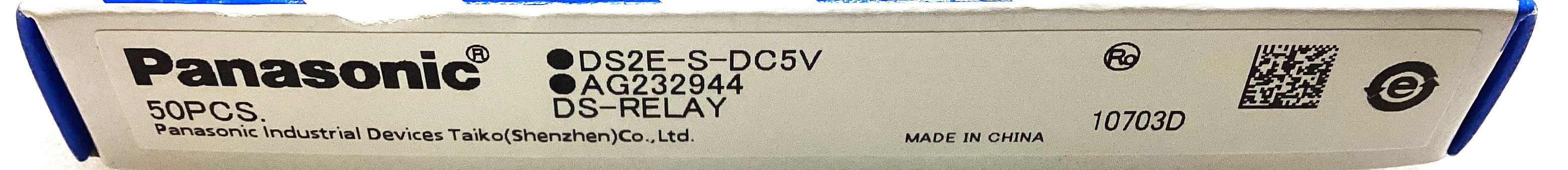

Packing Method	BOX
Physical Dimension	20mm x 9.9mm x 9.9mm
Reference Standard	CSA; UL
Relay Action	MOMENTARY
Relay Form	2 FORM C
Relay Function	DPDT
Relay Type	POWER/SIGNAL RELAY
Release Time	2 ms
Sealing	EPOXY TERMINAL SEALED
Terminal Finish	Nickel/Copper (Ni/Cu)
Terminal Length	0.0034 inch
Termination Type	SOLDER
Weight	4 g
