DS1E-M-DC12V データシート

Name: DS1E-M-DC12V
Brand: PANASONIC
SKU: 140070218-0000-0000-0000

DS1E-M-DC12V - PANASONIC の商品詳細ページです。

２営業日以内に回答いたします

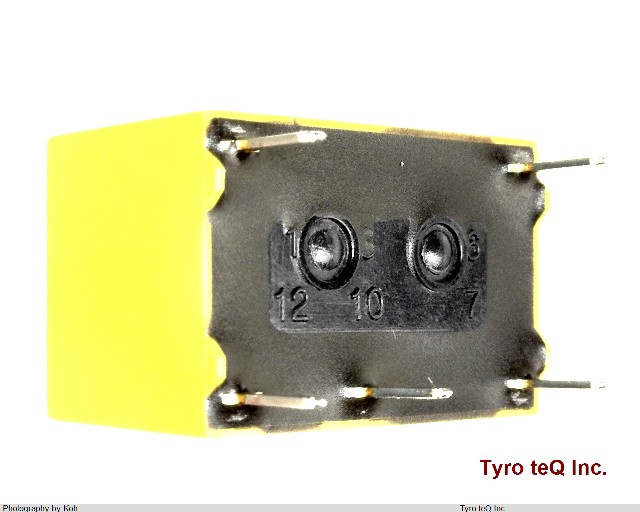

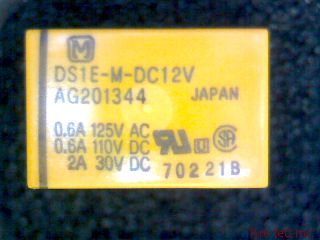

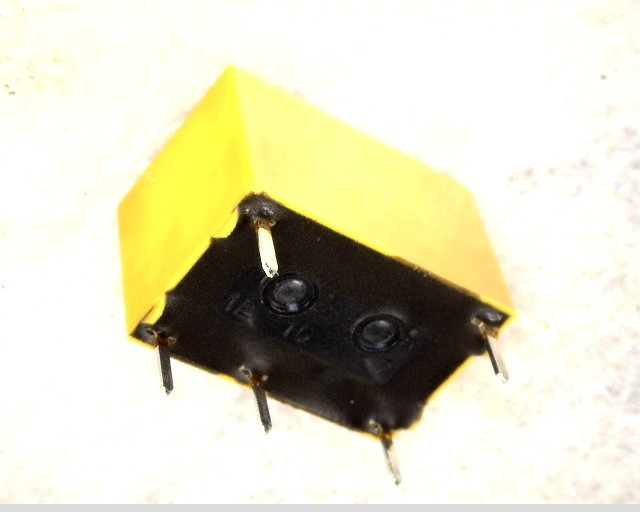

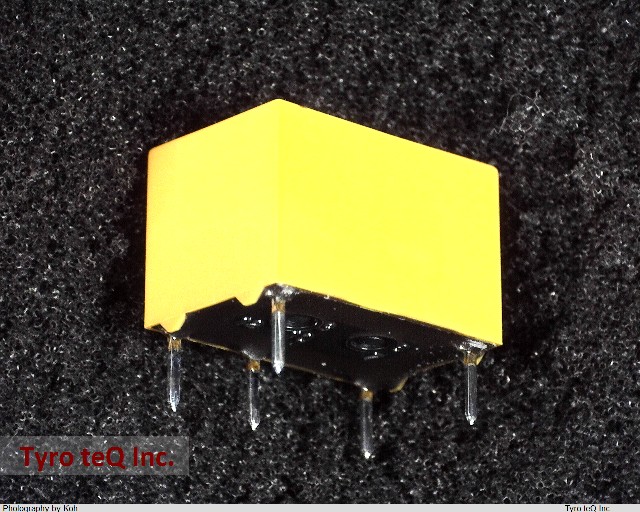

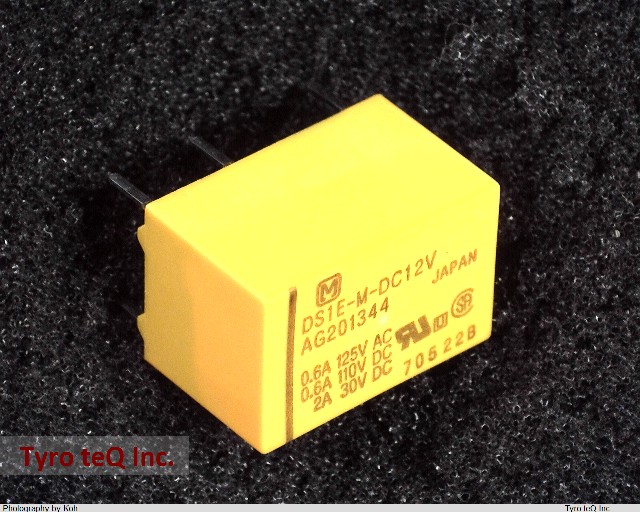

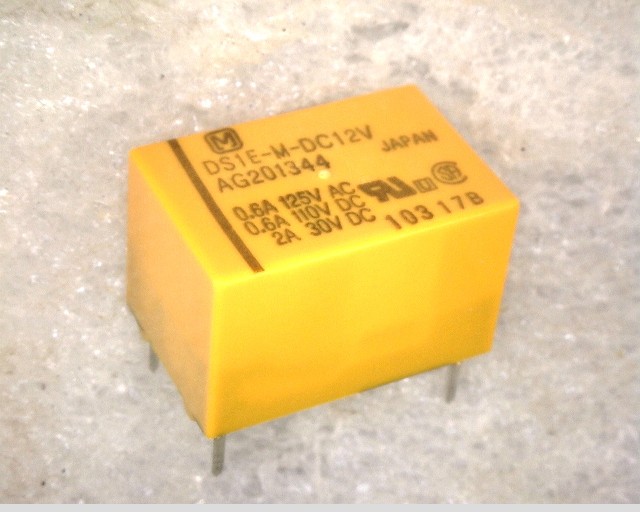

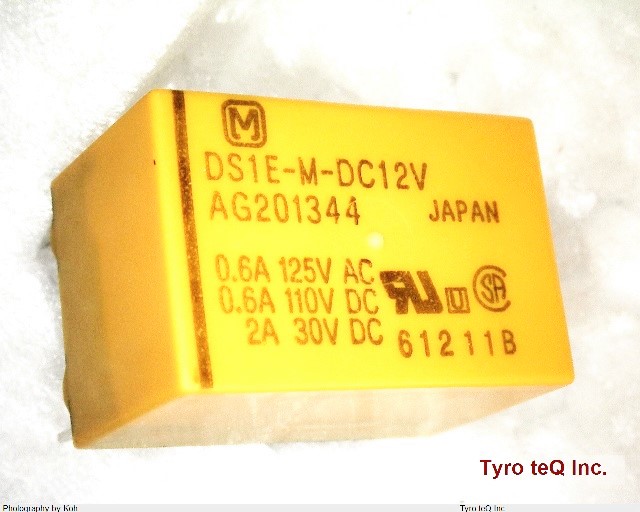

DS1E-M-DC12V の詳細情報

型番	DS1E-M-DC12V
メーカー	PANASONIC
データシート
Body Breadth	9.9 inch
Body Height	9.9 mm
Body Length or Diameter	15 mm
Coil Current(DC)-Max	0.033 A
Coil Operate Voltage(DC)	8.4 V
Coil Power	400 mW
Coil Release Voltage(DC)	1.2 V
Coil Resistance	360 ohm
Coil Voltage(DC)-Max	12 V
Coil Voltage-Nom	12 V
Coil/Input Supply Type	DC
Contact AC Max Power Rating R Load	125VA@250VAC
Contact AC Max Rating R Load	2A@250VAC
Contact Current(AC)-Max	2 A
Contact Current(DC)-Max	2 A
Contact DC Max Power Rating R Load	60W@220VDC
Contact DC Max Rating R Load	2A@30VDC
Contact Resistance	50 mohm
Contact Voltage(AC)-Max	250 V
Contact Voltage(DC)-Max	220 V
Contact/Output Supply Type	AC/DC
Dielectric Strength Between Coil and Contacts	1500 Vrms
Dielectric Strength Between Open Contacts	1000 Vrms
Electrical Life	500000 Cycle(s)
End Contact Material	Silver
End Contact Plating	GOLD
Input Switching Control Type	Random
Insulation Resistance	100000000 ohm
Manufacturer Series	DS
Mounting Feature	THROUGH HOLE-STRAIGHT MOUNT
Number of Terminals	5
Operate Time	3 ms
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-40 Cel
PCB Hole Count	5
Packing Method	BOX
Physical Dimension	15mm x 9.9mm x 9.9mm
Reference Standard	CSA; UL
Relay Action	MOMENTARY
Relay Form	1 FORM C
Relay Function	SPDT
Relay Type	POWER/SIGNAL RELAY
Release Time	2 ms
Sealing	EPOXY RESIN SEALED
Terminal Length	0.0034 inch
Termination Type	SOLDER
Weight	3 g
