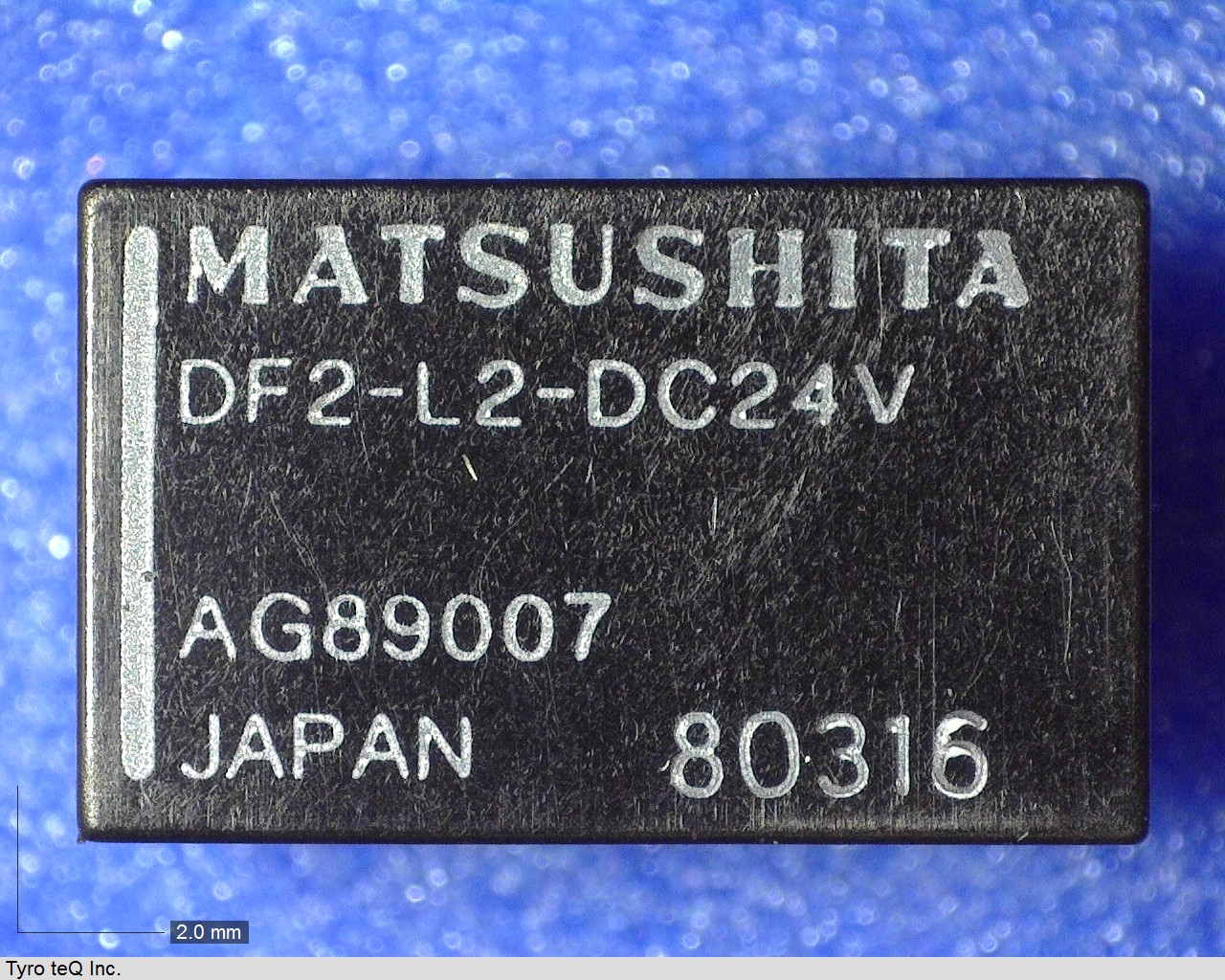

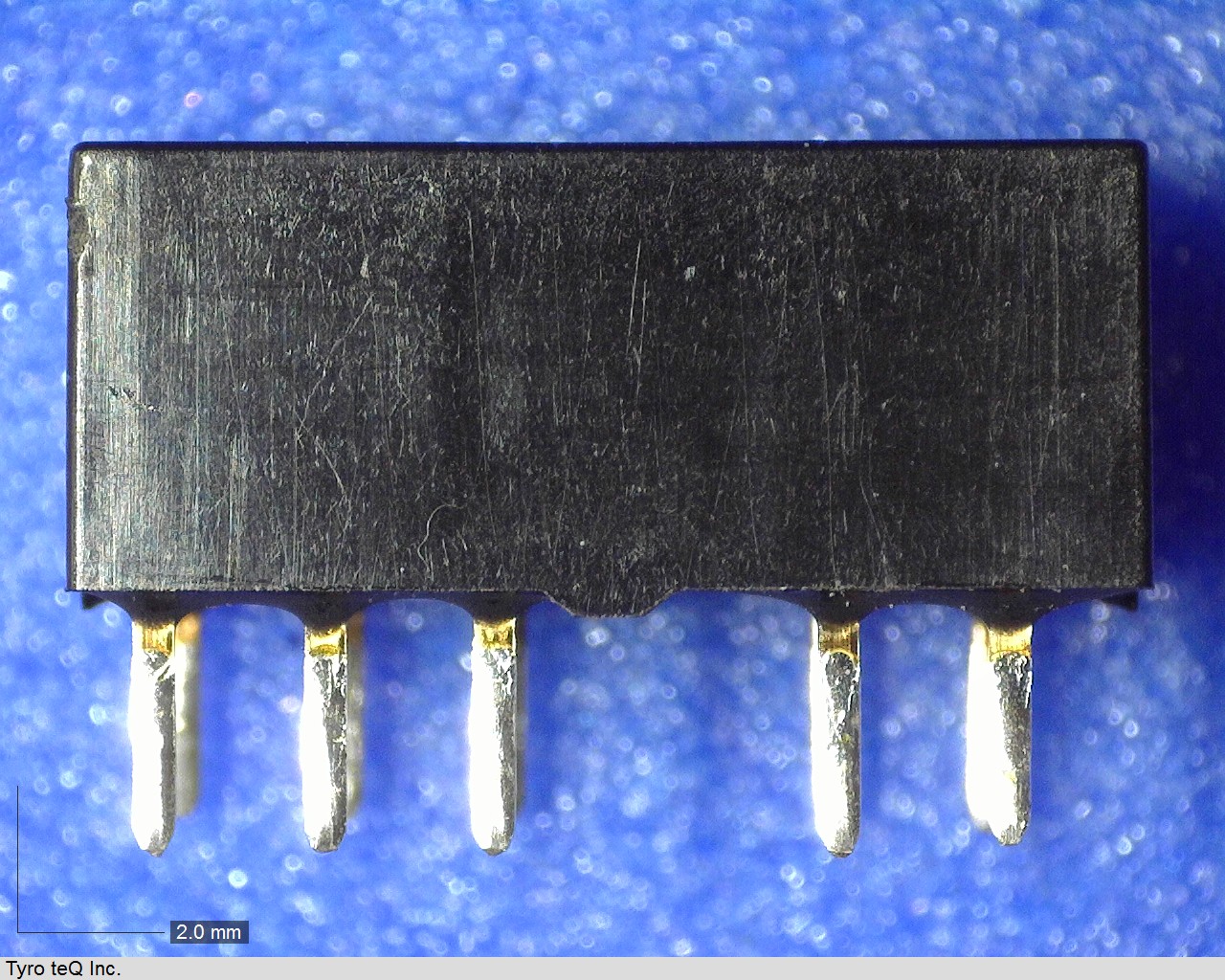

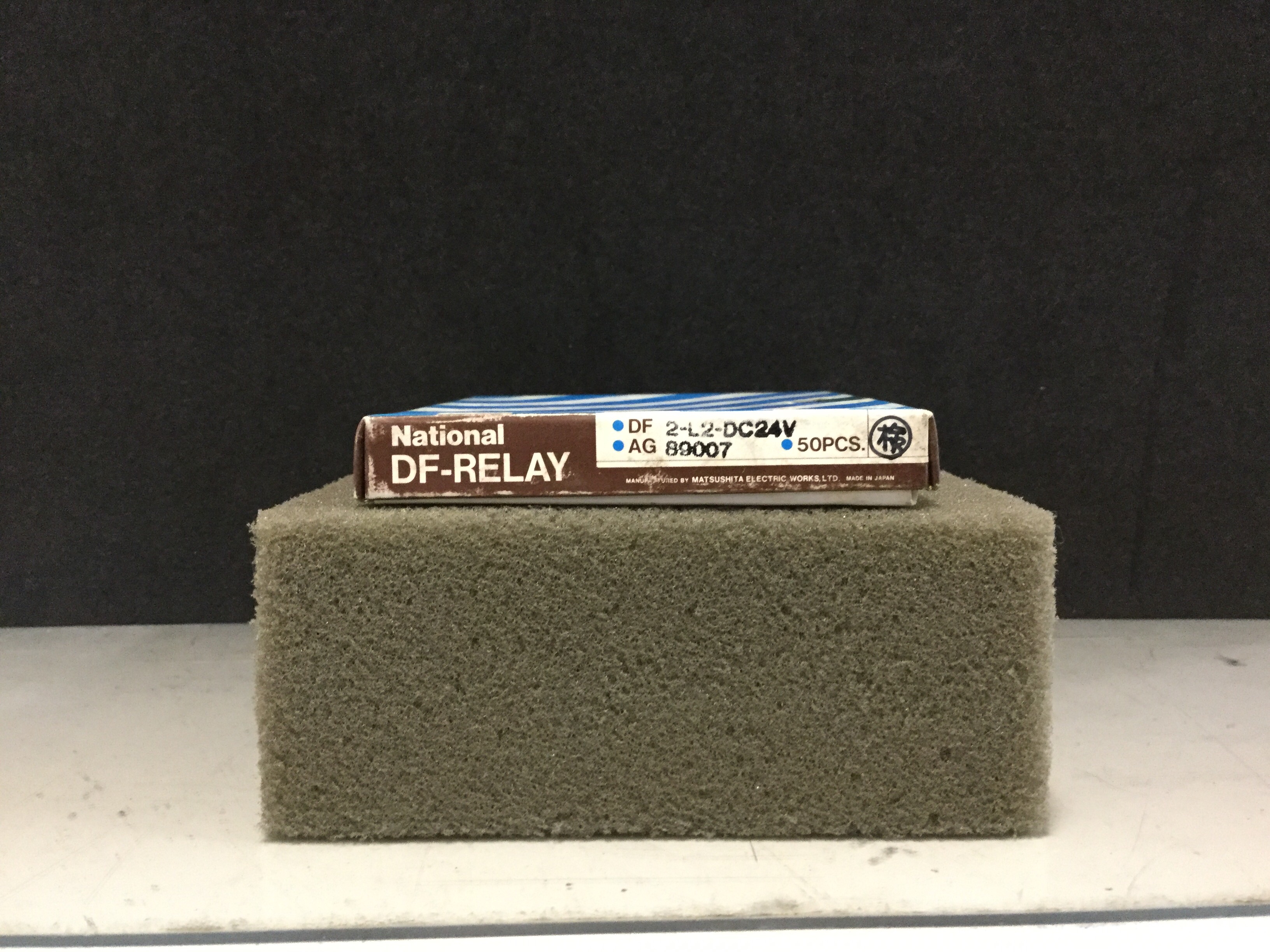

DF 2-L2-DC24V データシート

Name: DF 2-L2-DC24V
Brand: PANASONIC
SKU: 140106123-0000-0000-0000

DF 2-L2-DC24V - PANASONIC の商品詳細ページです。

２営業日以内に回答いたします

DF 2-L2-DC24V の詳細情報

型番	DF 2-L2-DC24V
メーカー	PANASONIC
データシート
Body Breadth	9.9 inch
Body Height	7 mm
Body Length or Diameter	16 mm
Coil Operate Voltage(DC)	19.2 V
Coil Power	200 mW
Coil Release Voltage(DC)	19.2 V
Coil Resistance	2880 ohm
Coil Voltage(DC)-Max	28.8 V
Coil Voltage-Nom	24 V
Coil/Input Supply Type	DC
Contact AC Max Power Rating R Load	30VA@125VAC
Contact AC Max Rating R Load	0.5A@30VAC
Contact Current(AC)-Max	0.5 A
Contact Current(DC)-Max	1 A
Contact DC Max Power Rating R Load	30W@60VDC
Contact DC Max Rating R Load	1A@30VDC
Contact Resistance	50 mohm
Contact Voltage(AC)-Max	30 V
Contact Voltage(DC)-Max	30 V
Contact/Output Supply Type	AC/DC
Dielectric Strength Between Coil and Contacts	1000 Vrms
Dielectric Strength Between Open Contacts	500 Vrms
Electrical Life	100000 Cycle(s)
End Contact Material	Silver
End Contact Plating	GOLD
Input Switching Control Type	Random
Insulation Resistance	1000000000 ohm
Number of Terminals	10
Operate Time	5 ms
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-40 Cel
PCB Hole Count	10
Physical Dimension	16mm x 9.9mm x 7mm
Reference Standard	CSA; UL
Relay Action	LATCHED
Relay Form	2 FORM C
Relay Function	DPDT
Release Time	3 ms
Terminal Length	0.004 inch
Termination Type	SOLDER
Weight	2.4 g
