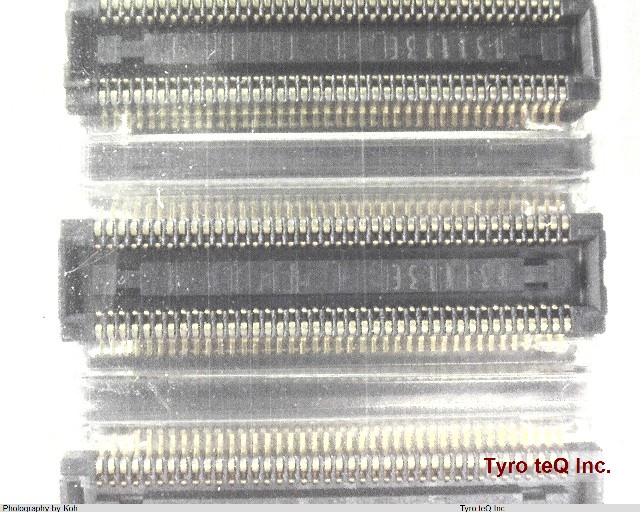

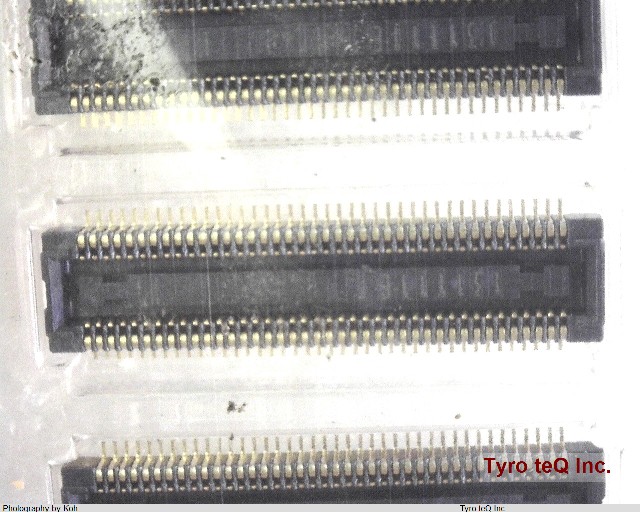

AXK780147G データシート

Name: AXK780147G
Brand: PANASONIC
SKU: 110192161-0000-0000-0000

AXK780147G - PANASONIC の商品詳細ページです。

２営業日以内に回答いたします

AXK780147G の詳細情報

型番	AXK780147G
メーカー	PANASONIC
データシート
Additional Feature	LOW PROFILE
Body Breadth	0.161 inch
Body Depth	0.059 inch
Body Length	0.72 inch
Body/Shell Style	SOCKET
Connector Type	BOARD STACKING CONNECTOR
Contact Finish - Mating	GOLD OVER NICKEL
Contact Finish - Termination	Gold (Au) - with Nickel (Ni) barrier
Contact Gender	FEMALE
Contact Material	COPPER ALLOY
Contact Pattern	RECTANGULAR
Contact Resistance	70 mohm
DIN Conformance	NO
Durability	3000 Cycles
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Material	LIQUID CRYSTAL POLYMER
JESD-609 Code	e4
MIL Conformance	NO
Mating Contact Pitch	0.016 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	2
Number of Rows Loaded	2
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	4.5974 mm
Rated Current (Signal)	0.3 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Pitch	.4 mm
Termination Type	SURFACE MOUNT
Total Number of Contacts	80
UL Flammability Code	94V-0
