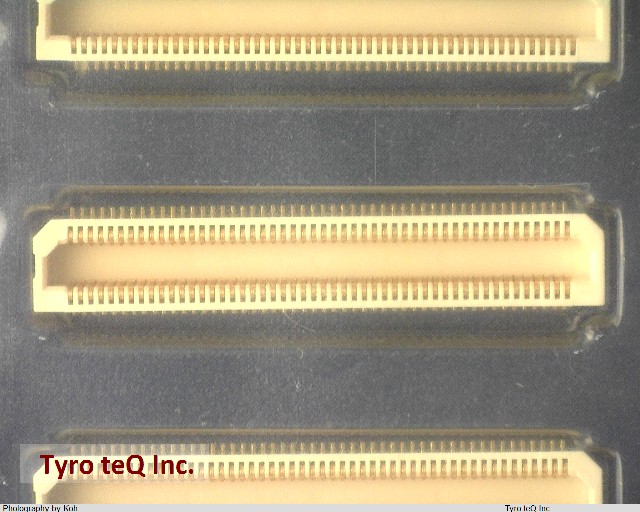

AXK5S00035P データシート

Name: AXK5S00035P
Brand: PANASONIC
SKU: 110160137-0000-0000-0000

AXK5S00035P - PANASONIC の商品詳細ページです。

２営業日以内に回答いたします

AXK5S00035P の詳細情報

型番	AXK5S00035P
メーカー	PANASONIC
データシート
Additional Feature	LOW PROFILE
Board Mounting Option	POSITIONING PIN
Body Breadth	0.181 inch
Body Depth	0.12 inch
Body Length	1.1 inch
Body/Shell Style	SOCKET
Connector Type	BOARD STACKING CONNECTOR
Contact Finish - Mating	GOLD OVER NICKEL
Contact Finish - Termination	GOLD
Contact Gender	FEMALE
Contact Material	COPPER ALLOY
Contact Pattern	RECTANGULAR
Contact Resistance	60 mohm
Contact Style	BELLOWED TYPE
DIN Conformance	NO
Dielectric Withstanding Voltage	150VAC V
Durability	50 Cycles
Filter Feature	NO
IEC Conformance	NO
Insertion Force-Max	.7784 N
Insulation Resistance	1000000000 ohm
Insulator Material	POLYETHYLENE
JESD-609 Code	e4
MIL Conformance	NO
Manufacturer Series	P5
Mating Contact Pitch	0.02 inch
Mixed Contacts	NO
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	2
Number of Rows Loaded	2
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-55 Cel
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	5.0038 mm
Polarization Key	D-SHAPE
Rated Current (Signal)	0.2 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Pitch	.5 mm
Termination Type	SURFACE MOUNT
Total Number of Contacts	100
UL Flammability Code	94V-0
Withdrawl Force-Min	.0556 N
