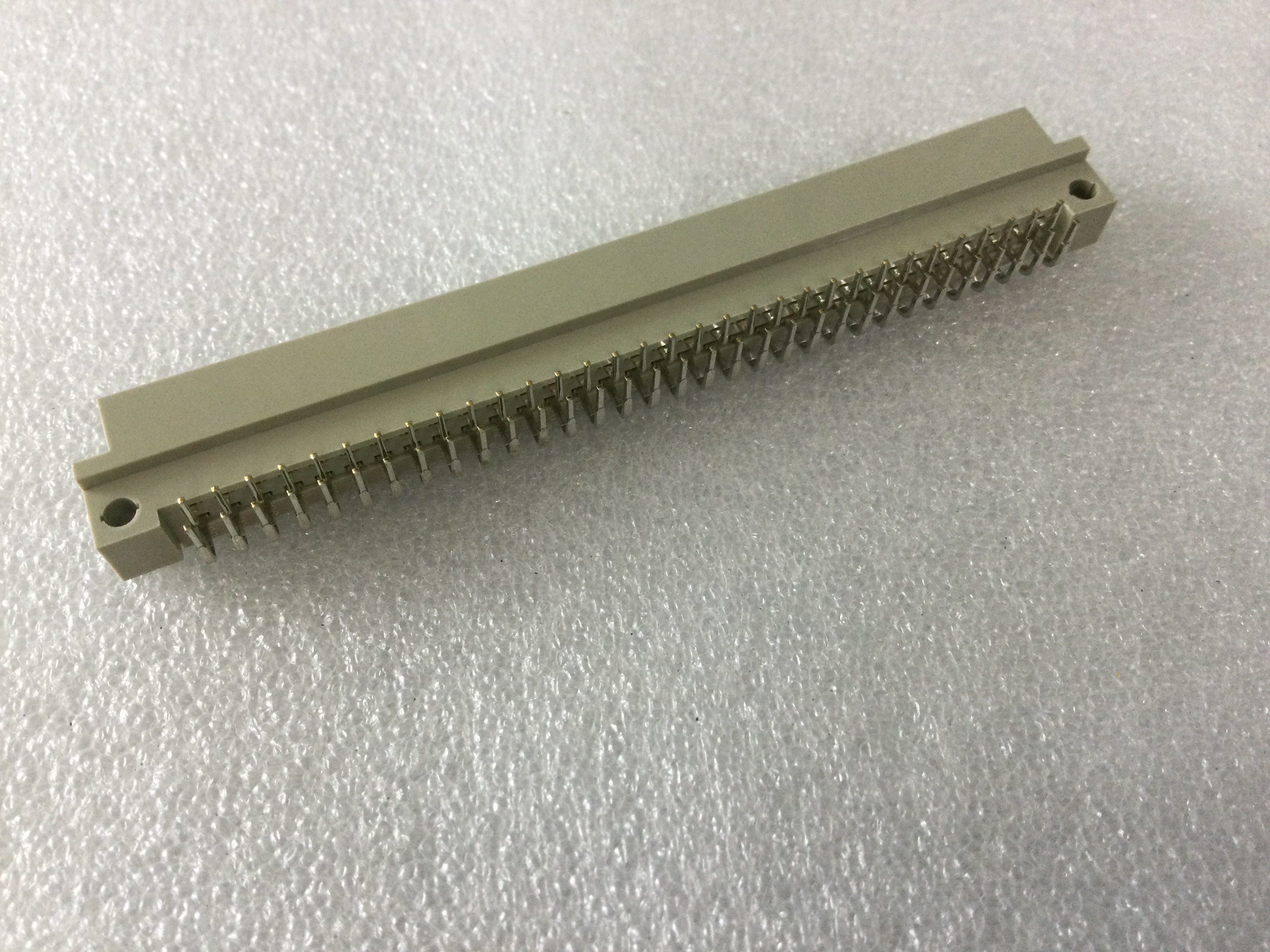

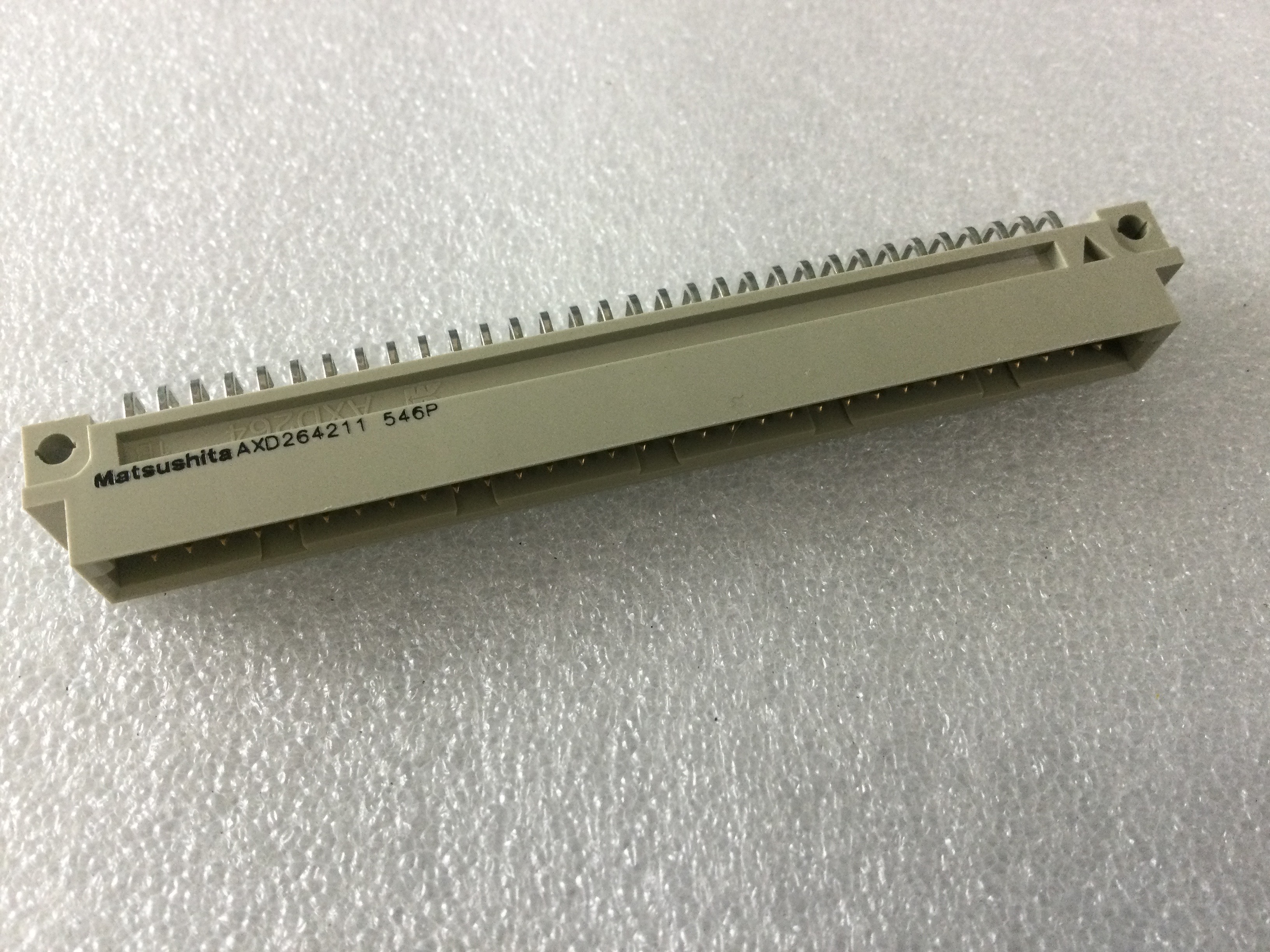

AXD264211 データシート

Name: AXD264211
Brand: PANASONIC
SKU: 110240240-0000-0000-0000

AXD264211 - PANASONIC の商品詳細ページです。

２営業日以内に回答いたします

AXD264211 の詳細情報

型番	AXD264211
メーカー	PANASONIC
データシート
Additional Feature	STANDARDS: IEC 603-2; DIN 41612
Connector Type	BOARD EURO CONNECTOR
Contact Finish - Mating	TIN OVER NICKEL
Contact Finish - Termination	Gold (Au) - with Nickel (Ni) barrier
Contact Gender	MALE
Contact Material	BRASS
DIN Conformance	YES
Filter Feature	NO
IEC Conformance	YES
JESD-609 Code	e4
MIL Conformance	NO
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number of Rows Loaded	2
Option	GENERAL PURPOSE
Terminal Pitch	2.54 mm
Termination Type	SOLDER
Total Number of Contacts	64
UL Flammability Code	94V-0
